2006 Suzuki DL1000 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2006 Suzuki DL1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

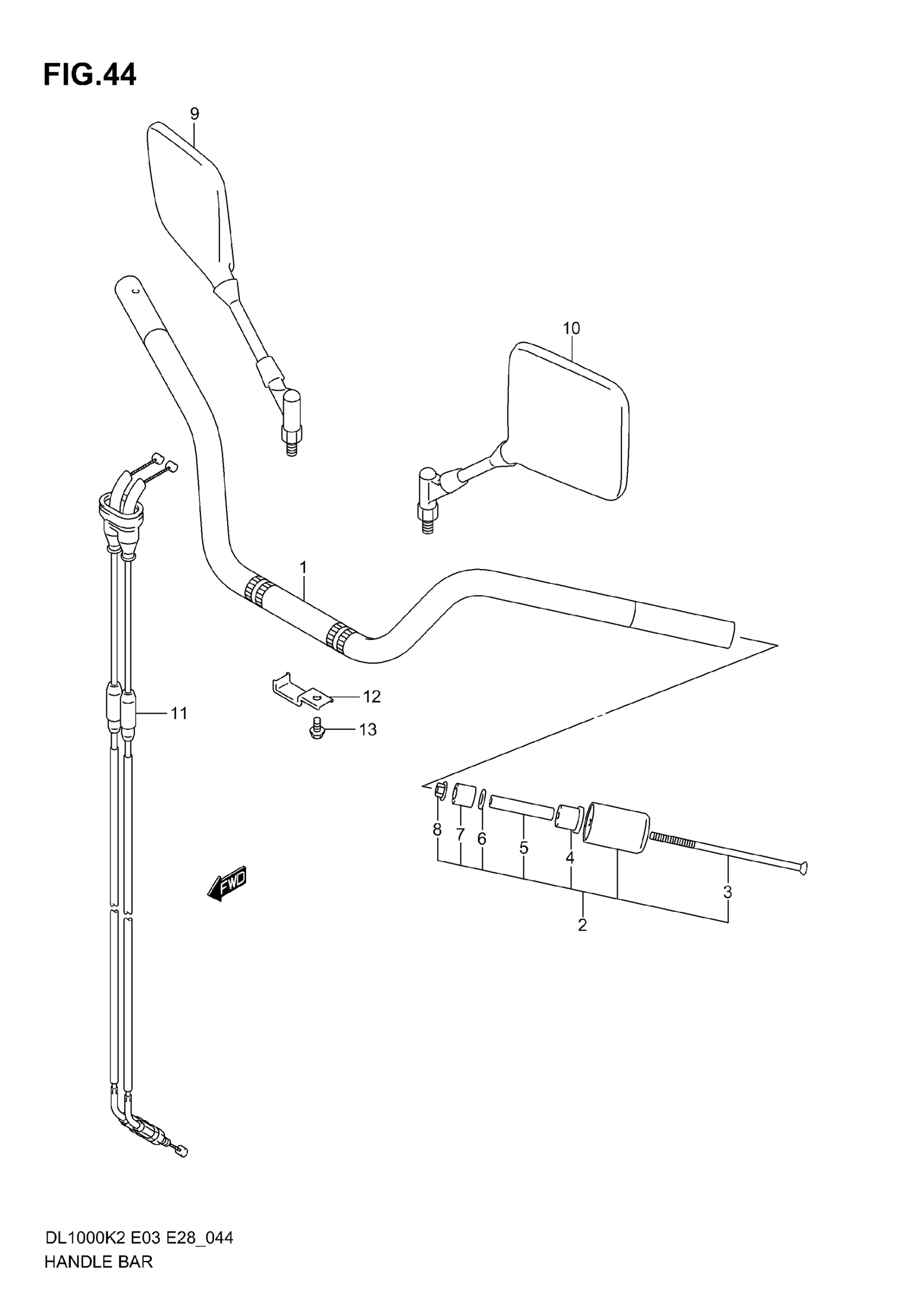

2006 Suzuki DL1000 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

56111-06G10

1
Out of stock

2

BALANCER SET, HANDLEBAR | Includes Item(s) 3 - 8

56200-06841

2
Out of stock

3

SCREW

09127-06021

2
Out of stock

4

EXPANDER, OUTER

56272-06G00

2
Out of stock

5

SPACER

56276-17D00

2
Out of stock

6

.WASHER (6.5X16X1.6)

09160-06130

2
Out of stock

7

.EXPANDER,HANDLE BALANCER

56272-42F00

2
Out of stock

8

NUT

09159-06024

2
Out of stock

9

MIRROR ASSY,REA This part replaces 56500-06G00.

56500-06G40

1
Out of stock

10

MIRROR ASSY,RR This part replaces 56600-06G00.

56600-06G41

1
Out of stock

11

CABLE ASSY, THROTTLE | MODEL K2 This part replaces 58300-06G00.

58300-06G01

1
Out of stock

11

CABLE ASSY, THROTTLE | MODEL K3

58300-06G01

1
Out of stock

12

GUIDE, CABLE

58621-06G00

1
Out of stock

13

SCREW, REAR SIDE BRKT This part replaces 02162-06123.

02162-0612A

1
Out of stock
