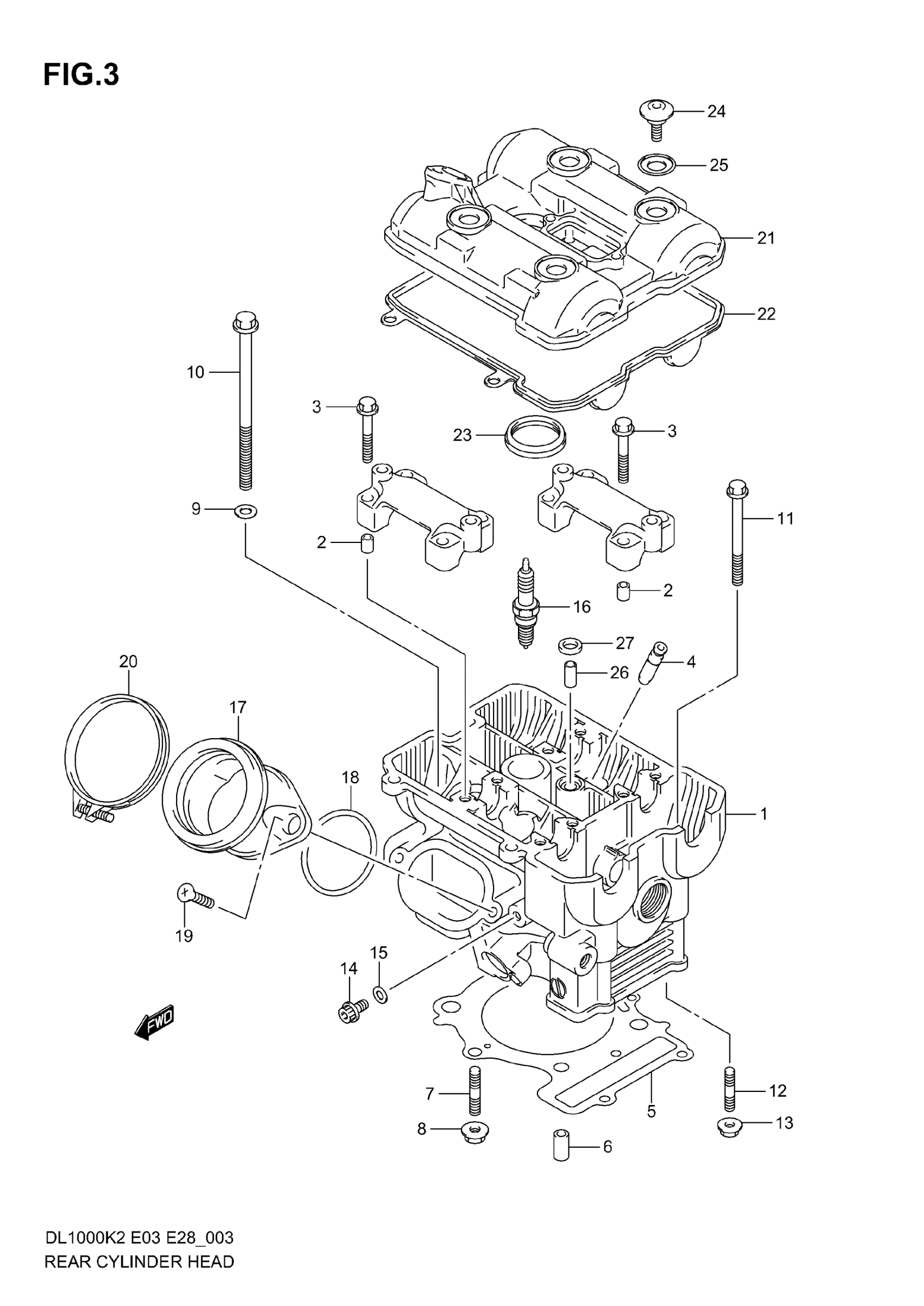

Suzuki DL1000 (2006) REAR CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | Includes Item(s) 2 - 3

11100-06G00

Unavailable

2

PIN

09206-08001

$1.77

3

BOLT (6X39)

09103-06026

$1.84

4

GUIDE, VALVE (OS:0.3) | OPT

11115-32E70

$44.28

5

GASKET

11141-02F01

$40.94

6

PIN

04211-13189

$2.19

7

STUD BOLT (8X35)

09108-08143

$4.12

8

NUT This part replaces 08316-10083.

08316-1008B

$2.65

9

WASHER

09160-10082

$1.62

10

BOLT (10X175)

09103-10276

$14.44

11

BOLT (6X70)

09103-06103

$2.61

12

STUD BOLT (6X30)

09108-06096

Unavailable

13

NUT This part replaces 08316-10063.

08316-1006B

$2.50

14

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$2.80

15

GASKET

09168-06023

$2.01

16

SPARK PLUG (NGK,CR8EK)

09482-00412

$9.72

16

SPARK PLUG (DENSO,U24ETR)

09482-00413

$14.37

16

SPARK PLUG (NGK,CR9EK) | OPT

09482-00410

$10.60

16

SPARK PLUG (DENSO,U27ESR-N) | OPT This part replaces 09482-00411.

09482-00459

$5.58

16

SPARK PLUG (NGK,CR10EK) | OPT

09482-00462

$13.63

16

SPARK PLUG (DENSO,U31ETR) | OPT

09482-00463

$16.80

17

PIPE, INTAKE REAR | Includes Item(s) 18

13102-06G00

Unavailable

18

O RING

09280-55005

$5.88

19

SCREW This part replaces 02122-06163.

02122-0616A

$1.43

20

CLAMP This part replaces 09402-70203.

09402-70902

$5.09

21

COVER, CYLINDER HEAD

11172-06G00

Unavailable

22

GASKET

11173-02F00

$33.68

23

GASKET

11178-17E00

$6.08

24

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.07

25

WASHER

09161-11008

$4.06

26

PIN

09206-08007

$2.62

27

GASKET, 2ND AIR PASSAGE

11182-35F00

$3.01
