2006 Suzuki DL1000 Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2006 Suzuki DL1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

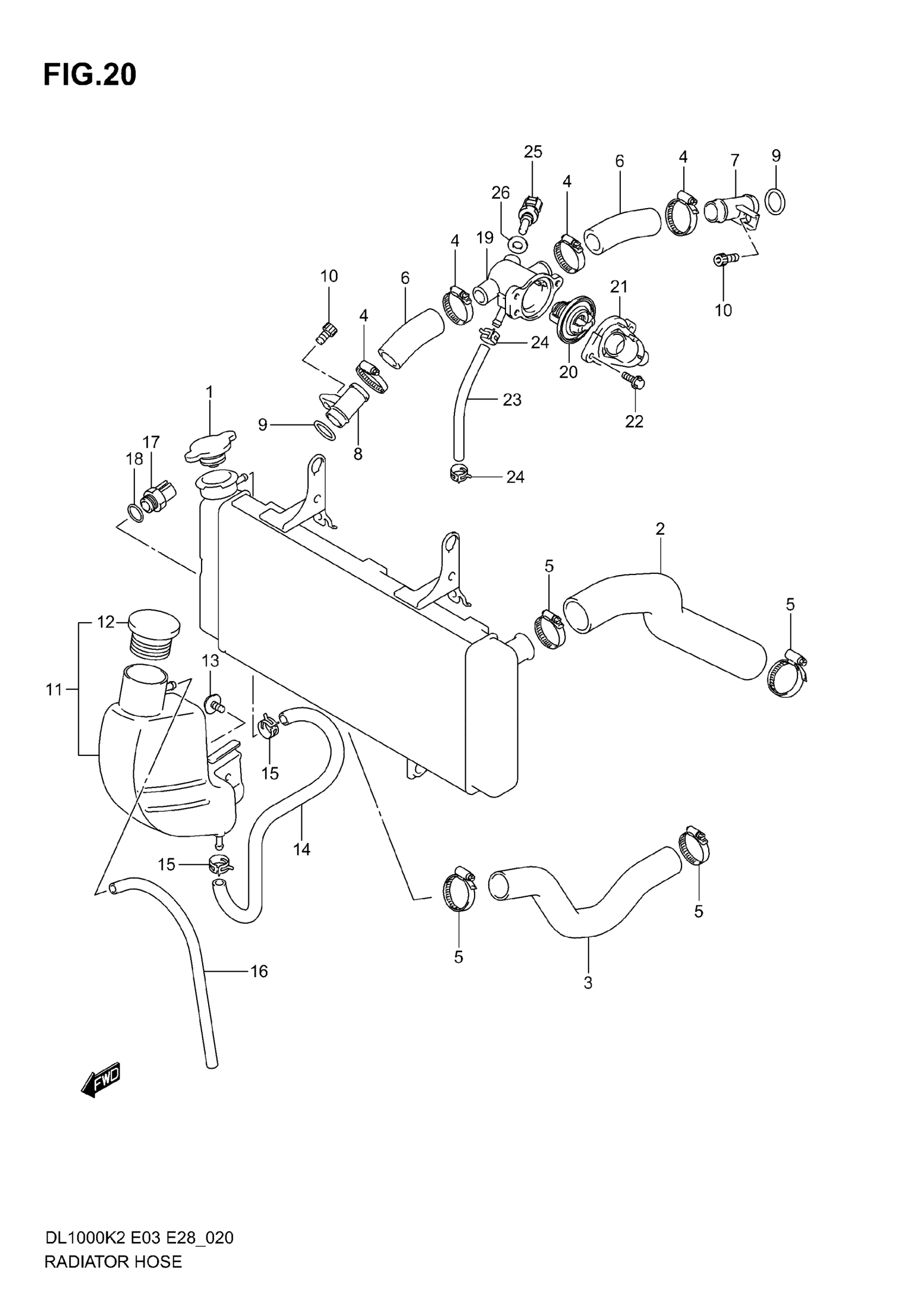

2006 Suzuki DL1000 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

1
Out of stock

2

HOSE, RADIATOR INLET

17851-06G00

1
Out of stock

3

HOSE, RADIATOR OUTLET

17852-06G00

1
Out of stock

4

CLAMP

09402-28511

4
Out of stock

5

CLAMP

09402-38511

4

$11.46

In stock

6

HOSE, CONNECTOR INLET

17853-02F00

2
Out of stock

7

UNION, CONNECTOR HOSE | MODEL K2/K3 This part replaces 17890-06G00.

17890-06G20

1
Out of stock

7

UNION, CONNECTOR HOSE | MODEL K4/K5/K6

17890-06G20

1
Out of stock

8

UNION, CONNECTOR HOSE FRONT | MODEL K2/K3

17890-06G10

1
Out of stock

8

UNION, CONNECTOR HOSE | MODEL K4/K5/K6

17890-06G20

1
Out of stock

9

O RING

09280-18009

2
Out of stock

10

BOLT This part replaces 07130-06123.

07130-0612A

2
Out of stock

11

TANK ASSY, RESERVOIR | MODEL K2/K3 This part replaces 17910-06G00.

17910-06G10

1
Out of stock

11

TANK ASSY, RESERVOIR | MODEL K4/K5/K6; Includes Item(s) 12

17910-06G10

1
Out of stock

12

CAP

17931-06G00

1
Out of stock

13

SCREW | MODEL K2/K3

09116-06191

1
Out of stock

13

BOLT | MODEL K4/K5/K6

09111-06085

1
Out of stock

14

HOSE, RESERVOIR TANK INLET

17981-19F00

1
Out of stock

15

CLIP

09401-08411

2
Out of stock

16

1

$34.43

In stock

17

SWITCH,RDTR FAN | Includes Item(s) 18 This part replaces 17680-33E00.

17680-33E01

1
Out of stock

18

O RING

17689-50F00

1
Out of stock

19

CONNECTOR,THERMOSTAT INLET

17662-02F11

1
Out of stock

20

THERMOSTAT | MODEL K2

17670-06G30

1
Out of stock

20

THERMOSTAT,WATER | MODEL K3/K4/K5/K6 This part replaces 17670-06G50.

17670-06G51

1
Out of stock

21

CAP,THERMOSTAT CONNECTOR

17663-42E00

1
Out of stock

22

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

23

HOSE, CONNECTOR TO WATER PUMP | MODEL K2

17854-24F00

1
Out of stock

23

HOSE, WATER BYPASS | MODEL K3 This part replaces 17856-16G00.

17856-16G10

1
Out of stock

23

HOSE, WATER BYPASS | MODEL K4/K5/K6

17856-16G10

1
Out of stock

24

CLIP This part replaces 09401-12409.

09401-12414

2
Out of stock

25

SENSOR, WATER TEMP

13650-57F00

1
Out of stock

26

GASKET, TEMP SENSOR

09168-12017

1
Out of stock
