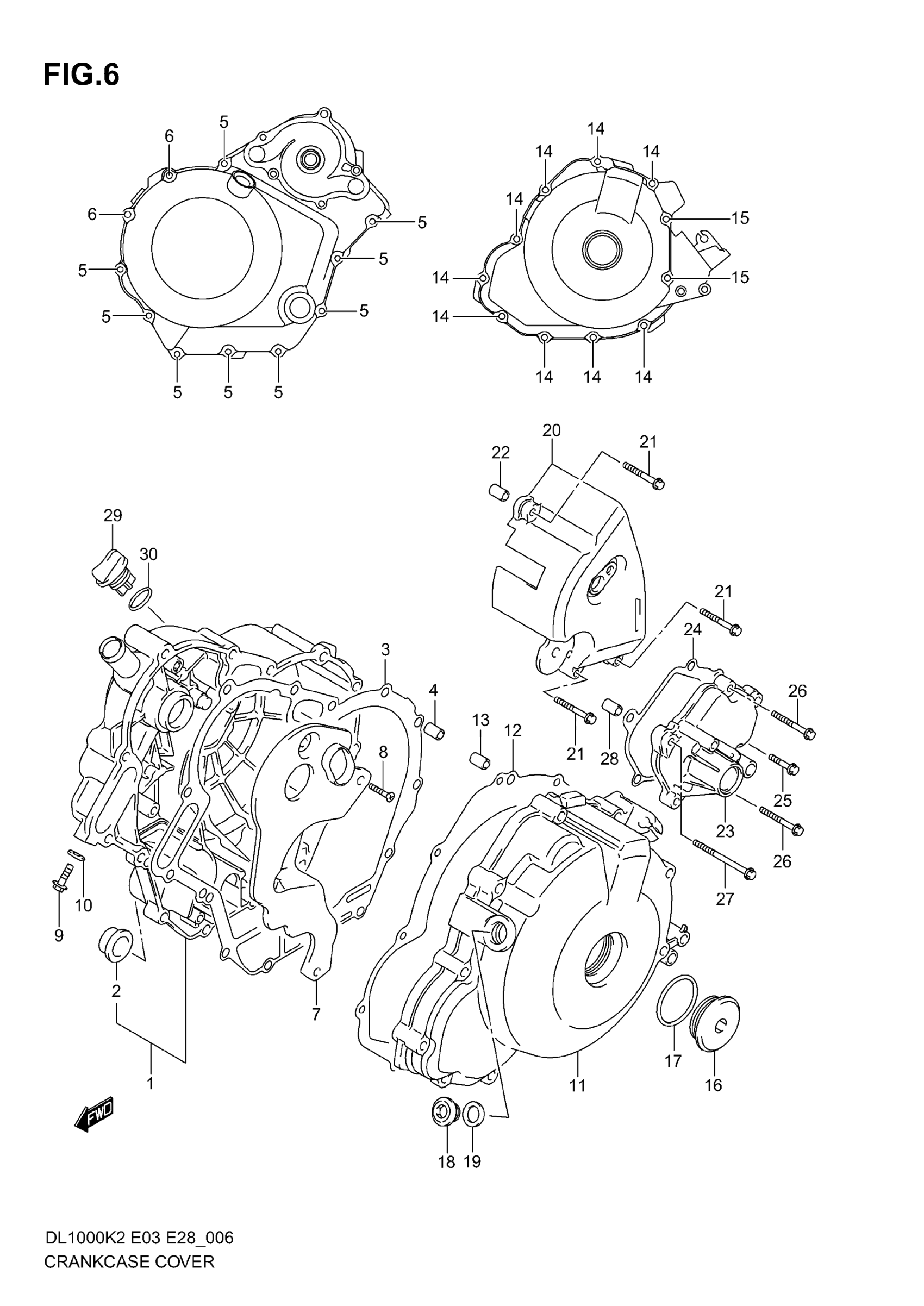

Suzuki DL1000 (2006) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL K2

11340-06G01

Unavailable

1

COVER COMP,CLUT | MODEL K3 This part replaces 11340-06G10.

11340-06G21

$387.45

1

COVER COMP,CLUT | MODEL K4/K5/K6; Includes Item(s) 2 This part replaces 11340-06G20.

11340-06G21

$387.45

2

LENS, OIL LEVEL CHECK

11971-33210

$16.66

3

.GASKET, CLUTCH COVER | MODEL K2/K3 This part replaces 11482-06G00.

11482-06G10

$17.70

3

GASKET, CLUTCH COVER | MODEL K4/K5/K6

11482-06G10

$17.70

4

PIN

04211-09149

$1.64

5

BOLT (L:30)

09103-06213

$2.53

6

BOLT (L:75)

09103-06257

$2.88

7

SEPARATOR,OIL

11342-06G00

$64.72

8

SCREW This part replaces 02112-06123.

02112-0612A

$1.43

9

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

10

GASKET, 6.2X11X1.2 | MODEL K2/K3/K4/K5

09168-06004

$1.43

10

GASKET, 6.4X11.5X0.84 | MODEL K6

09168-06026

$2.80

11

COVER,MAGNETO This part replaces 11351-02F51.

11351-02F52

$424.90

12

GASKET, MAGNETO COVER

11483-02F10

$16.06

13

PIN

04211-09149

$1.64

14

BOLT (L:35)

09103-06214

$2.57

15

BOLT (L:70)

09103-06225

$2.90

16

PLUG, CRANKSHAFT HOLE

09259-36016-20H

$12.45

17

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

18

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

19

GASKET

09168-14002

$2.83

20

COVER, ENGINE SPROCKET

11360-06G00

$96.63

21

BOLT

09103-06214

$2.57

22

PIN

04211-09149

$1.64

23

COVER,GEAR SHIFT

11381-06G00

$112.45

24

GASKET

11485-02F10

$4.70

25

BOLT

09103-06126

$4.12

26

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

27

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

28

PIN

04211-09149

$1.64

29

PLUG, OIL FILLER | MODEL K2/K3

11971-12C51

$6.08

29

PLUG,ENGINE OIL FILLER | MODEL K4/K5/K6

11971-25D00

$4.67

30

O RING

09280-17003

$1.64
