2006 Suzuki DL1000 OIL Cooler Diagram

← All diagrams

Find the part on the OIL Cooler diagram for your 2006 Suzuki DL1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

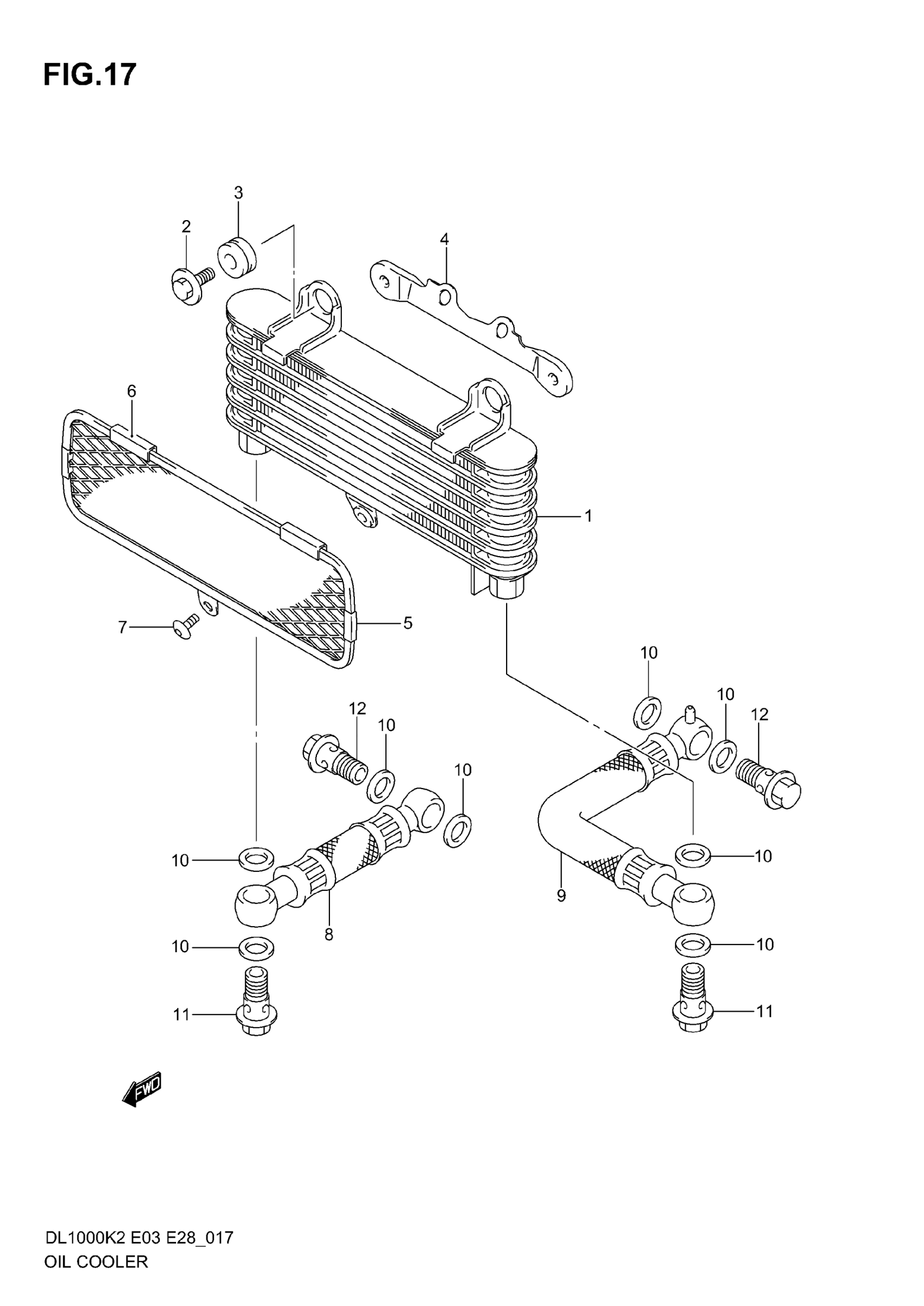

2006 Suzuki DL1000 OIL Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COOLER ASSY, OIL | MODEL K2/K3

16600-06G00

1
Out of stock

1

COOLER ASSY, OIL | MODEL K4/K5/K6

16600-16G00

1
Out of stock

2

BOLT

09116-06167

2

$2.35

In stock

3

CUSHION | MODEL K2/K3

09320-10015

2
Out of stock

3

2

$4.50

In stock

4

BRACKET, OIL COOLER

16620-02F00

1

$13.02

In stock

5

GUARD, OIL COOLER | MODEL K2/K3

16650-02F00

1
Out of stock

6

.PROTECTOR, CTR This part replaces 17765-09F00.

17765-09F01

2
Out of stock

7

SCREW This part replaces 02142-05103.

02142-0510B

1
Out of stock

8

HOSE, OIL COOLER, RH | MODEL K2/K3

16460-02F00

1
Out of stock

8

1

$165.45

In stock

9

HOSE,OIL COOLER | MODEL K2/K3 This part replaces 16470-06G00.

16470-06G01

1
Out of stock

9

HOSE, OIL COOLER, LH | MODEL K4/K5/K6

16470-16G00

1
Out of stock

10

GASKET | MODEL K2/K3

09168-14011

8

$1.75

In stock

10

8

$2.18

In stock

11

BOLT, UNION

09360-12012

2

$12.57

In stock

12

BOLT

09360-14012

2

$10.52

In stock
