1979 Kawasaki Custom Front Master Cylinder Diagram

← All diagrams

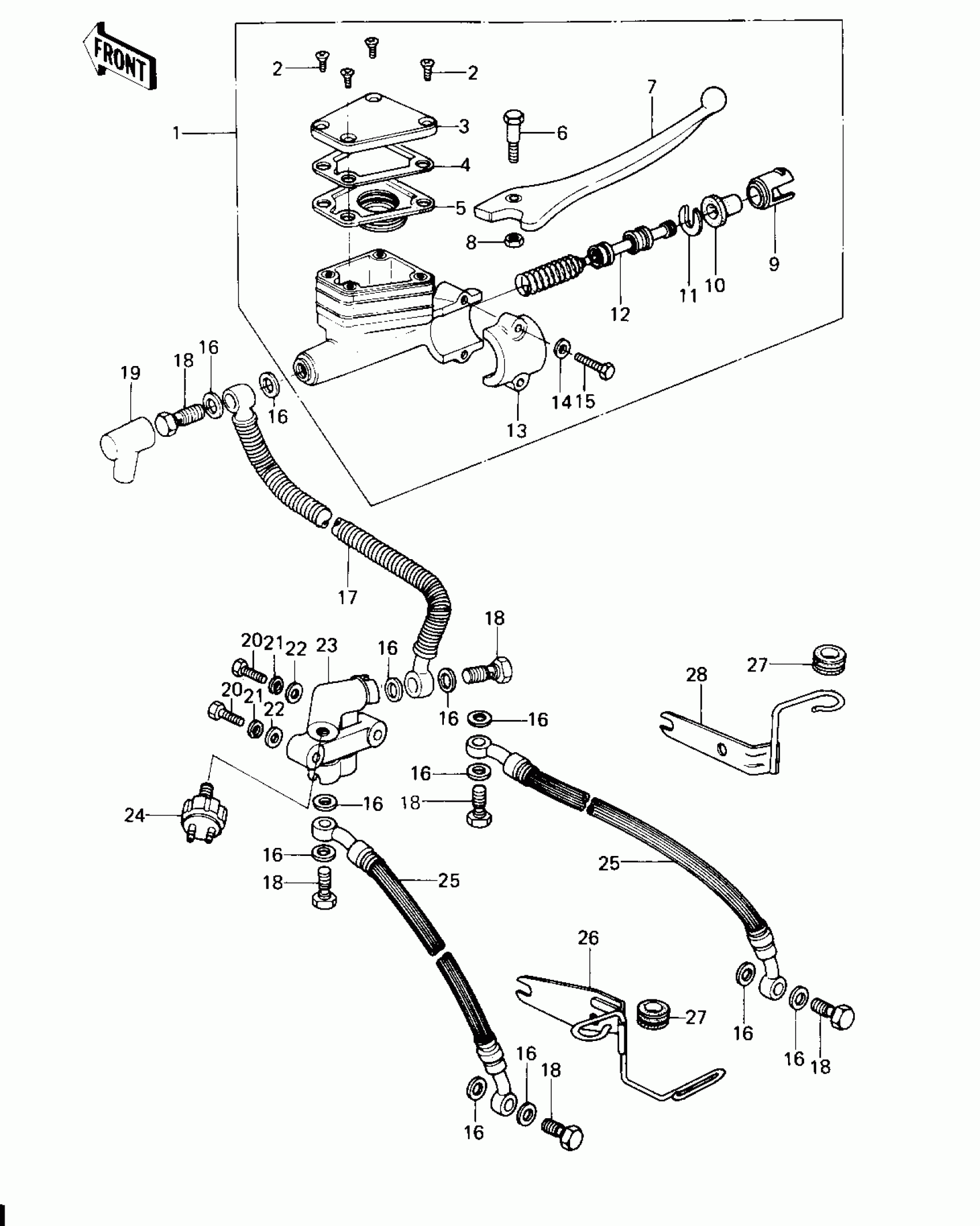

Find the part on the Front Master Cylinder diagram for your 1979 Kawasaki Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Kawasaki Custom Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY,MSTR,F

43015-1009

1
Out of stock

2

1

$4.84

In stock

3

CAP,OIL CUP

43026-1003

1
Out of stock

4

PLATE,DIAPHRAGM

43027-1002

1
Out of stock

5

DIAPHRAGM

43028-1002

1
Out of stock

6

BOLT,FR BRAKE LEVER

92001-1056

1
Out of stock

7

LEVER,FRONT BRAKE

46092-1002

1
Out of stock

8

NUT 6MM

312B0600

1
Out of stock

9

LINER,PISTON

14008-1007

1
Out of stock

10

COVER-SEAL,BRAKE PISTON

49016-1010

1
Out of stock

11

STOPPER-BRAKE,PISTON

43022-1001

1
Out of stock

12

PISTON-COMP-BRAKE

43020-1023

1

$96.86

In stock

13

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

1
Out of stock

14

WASHER PLAIN 6MM

411B0600

1
Out of stock

15

BOLT HEX HEAD 6X25

110N0625

1
Out of stock

16

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

17

HOSE,M/C BRAKE

43059-032

1
Out of stock

18

BOLT,OIL,L=23

92002-1888

1
Out of stock

19

BOOT,DUST

49006-1041

1

$9.11

In stock

20

BOLT,HEX HEAD,6X45

110N0645

1
Out of stock

21

WASHER SPRING 6MM

461F0600

1
Out of stock

22

WASHER PLAIN 6MM

411B0600

1
Out of stock

23

JOINT,FOUR WAY

43075-002

1
Out of stock

24

SWITCH-FRONT BRAKE

43065-001

1
Out of stock

25

HOSE,CALIPER BRAKE

43059-033

1
Out of stock

26

BRACKET

11034-1041

1
Out of stock

27

GROMMET,HOSE CLAMP

43064-006

1

$3.43

In stock

28

BRACKET,BRAKE HOSE

43063-008

1
Out of stock
