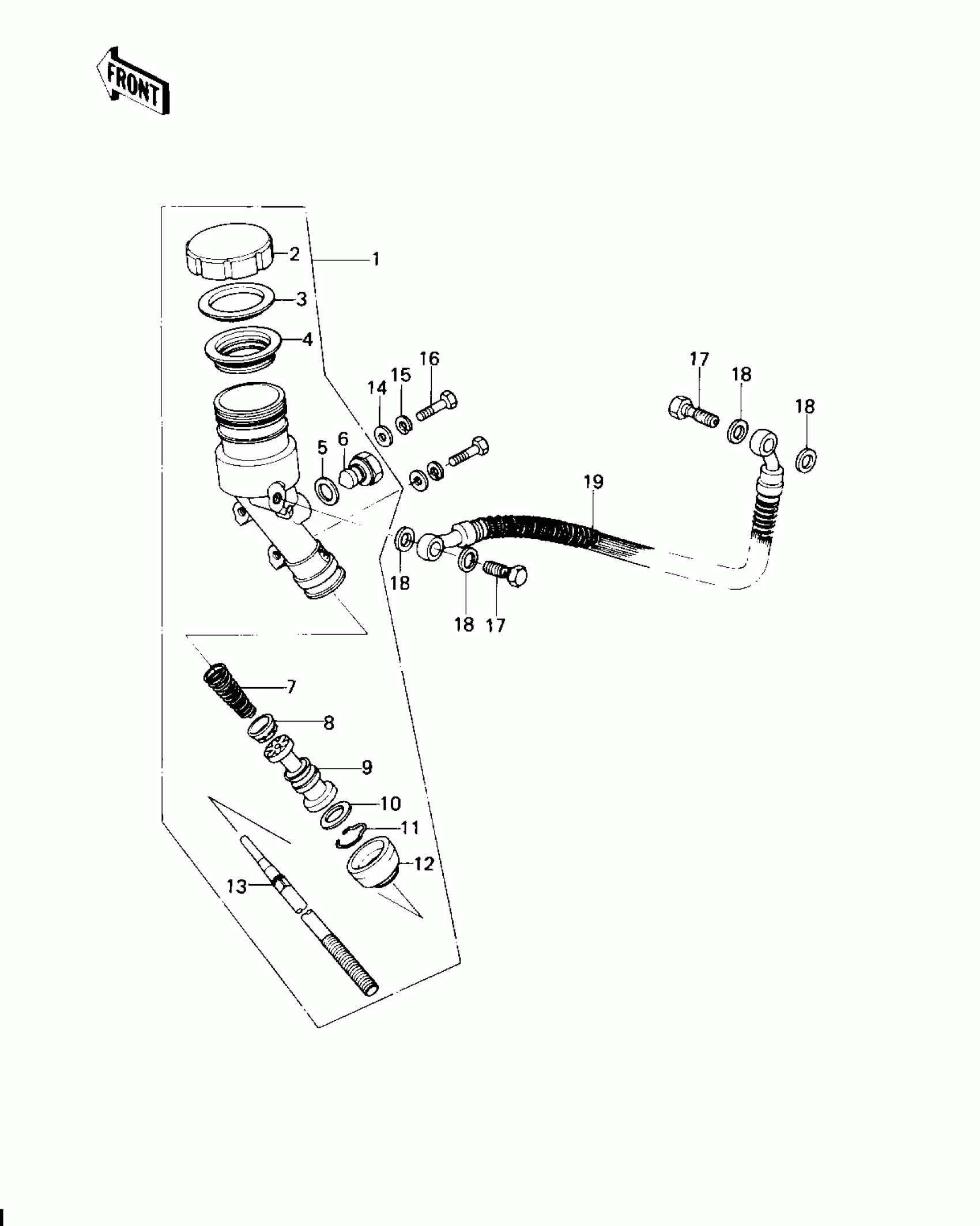

Kawasaki Custom REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,RR MST

43015-1004

$311.11

1

CYLINDER ASSY,M.REAR

43015-1005

Unavailable

2

CAP,OIL CUP

43026-004

Unavailable

3

PLATE-MASTER CYLINDE

43027-001

Unavailable

4

DIAPHRAGM

43028-003

Unavailable

5

'O'RING

43079-002

Unavailable

6

BOLT

92001-1073

$11.36

7

CUP-PRIMARY

43019-001

Unavailable

8

CUP-PRIMARY

43019-001

Unavailable

9

PISTON ASSY

43020-1004

Unavailable

9

PISTON ASSY

43020-1007

Unavailable

10

STOPPER,PISTON

43022-002

$9.90

11

UNAVAILABLE IN PRICE BOOK

43068-004

Unavailable

12

DUST COVER

43024-003

$23.93

13

ROD,BRAKE

43011-1004

$73.43

14

WASHER PLAIN 6MM

411B0600

Unavailable

15

WASHER SPRING 6MM

461F0600

Unavailable

16

BOLT-SMALL-UPSET,8X30

115G0830

Unavailable

17

BOLT,OIL,L=23

92002-1888

$4.15

18

WASHER,10.5X15X1.5

43067-001

$1.57

19

UNAVAILABLE IN PRICE BOOK

43069-1006

Unavailable
