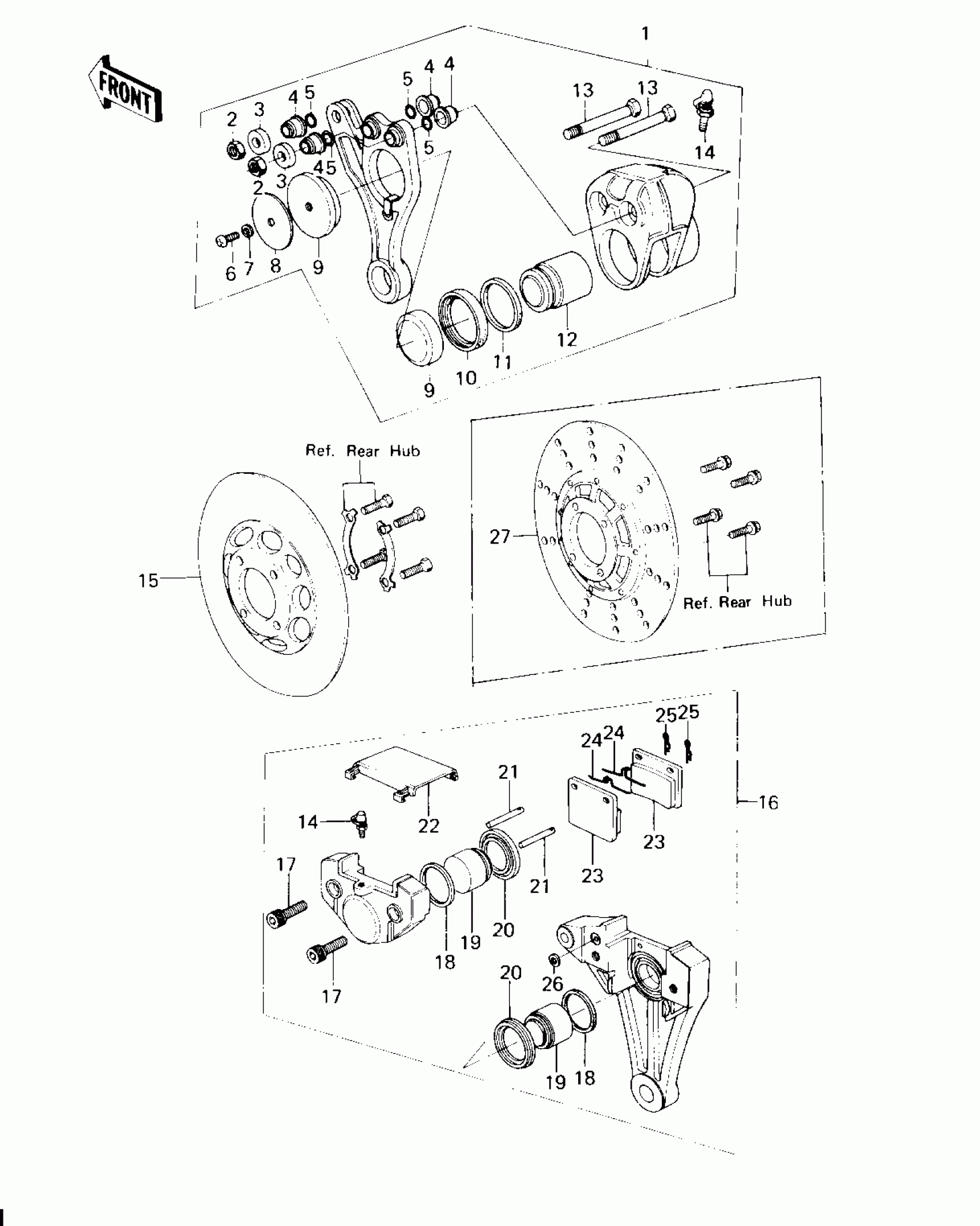

Kawasaki Custom REAR BRAKE Diagram

#

Description
Price

1

CALIPER ASSY,REAR

43041-1004

$416.73

2

UNAVAILABLE IN PRICE BOOK

31581000

Unavailable

3

PLUG

43088-002

Unavailable

4

DUST SHILD,SHAFT

43052-005

Unavailable

5

"O" RING

43053-005

Unavailable

6

SCREW PAN HEAD 6X12

220B0612

Unavailable

7

WASHER SPRING 8MM

461F0800

Unavailable

8

SPACER

43040-004

Unavailable

9

PAD SET,(REAR)

43050-5002

$115.59

10

DUST SEALD,RUBBER

43054-003

Unavailable

11

PACKING,PISTON SEAL

43049-002

$10.56

12

PISTON,FRONT CALIPER

43048-009

Unavailable

13

BOLT

43045-006

$42.74

14

BLEEDER SET

43085-001

$19.94

15

PLATE,REAR DISC

41080-008

$495.98

16

CALIPER ASSY,REAR

43041-1023

$545.40

17

BOLT,TIE,10X45

92001-1071

$6.56

18

PACKING,PISTON SEAL

43049-002

$10.56

19

PISTON,BRAKE

43020-1011

$111.19

20

DUST SEAL,PISTON

43054-004

$16.17

21

SHAFT-CALIPER

43045-007

$4.88

22

CAP

43024-004

Unavailable

23

PAD SET

43082-1002

Unavailable

24

SPRING

43086-002

Unavailable

25

CLAMP,PAD

43084-003

$3.29

26

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$4.64

27

DISC PLATE,REAR

41080-1021

$481.47
