1979 Kawasaki Custom Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1979 Kawasaki Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

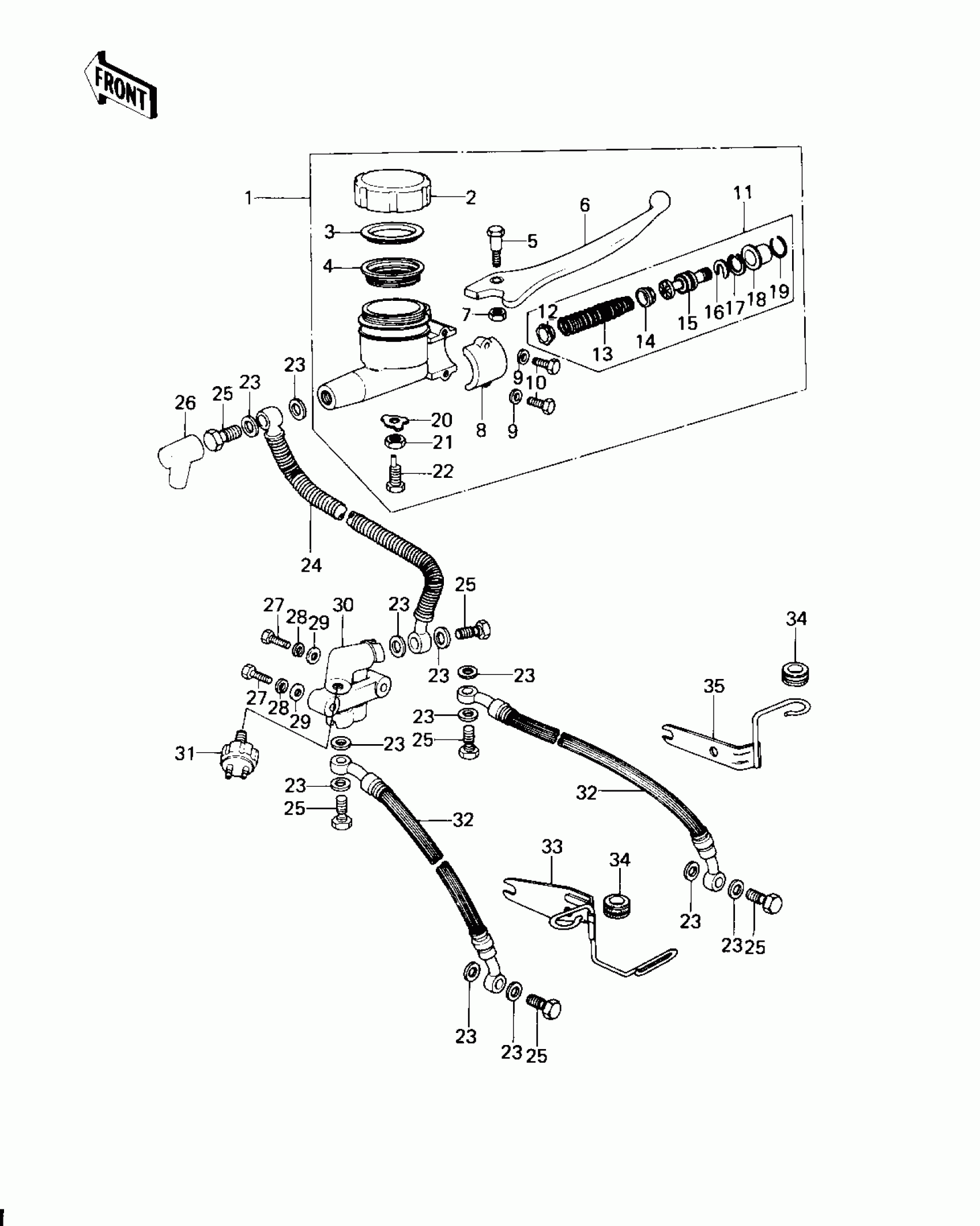

1979 Kawasaki Custom Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY,MSTR,F

43015-1009

1
Out of stock

2

CAP,OIL CUP

43026-004

1
Out of stock

3

PLATE-MASTER CYLINDE

43027-001

1
Out of stock

4

DIAPHRAGM

43028-003

1
Out of stock

5

BOLT

43033-004

1
Out of stock

6

LEVER,FRONT BRAKE

43029-003

1
Out of stock

7

NUT 6MM

312B0600

1
Out of stock

8

HOLDER-MASTER CYL

43034-001

1
Out of stock

9

WASHER PLAIN 6MM

411B0600

1
Out of stock

10

BOLT HEX HEAD 6X25

110N0625

1
Out of stock

11

REPAIR ASY,MASTER CY

43073-005

1
Out of stock

12

VALVE ASSY, CHECK

43017-002

1
Out of stock

13

SPRING ASSY, RETURN

43018-002

1
Out of stock

14

CUP, PRIMARY

43019-002

1
Out of stock

15

PISTON ASY, MSTR CYL

43072-002

1
Out of stock

16

STOPPER-PISTON

43022-001

1
Out of stock

17

CIRCLIP-TYPE-C,18MM

481J1800

1
Out of stock

18

BOOTS

43024-001

1
Out of stock

19

STOPPER-BOOTS

43025-001

1
Out of stock

20

WASHER-LOCK,8MM

43031-001

1
Out of stock

21

NUT,8MM

311B0800

1
Out of stock

22

BOLT,LEVER ADJUSTING

43030-003

1
Out of stock

23

WASHER,10.5X15X1.5

43067-001

1
Out of stock

24

HOSE,M/C BRAKE

43059-032

1
Out of stock

25

BOLT,OIL,L=23

92002-1888

1
Out of stock

26

BOOT,DUST

49006-1041

1
Out of stock

27

BOLT,HEX HEAD,6X45

110N0645

1
Out of stock

28

WASHER SPRING 6MM

461F0600

1
Out of stock

29

WASHER PLAIN 6MM

411B0600

1
Out of stock

30

JOINT,FOUR WAY

43075-002

1
Out of stock

31

SWITCH-FRONT BRAKE

43065-001

1
Out of stock

32

HOSE,CALIPER BRAKE

43059-033

1
Out of stock

33

BRACKET

11034-1041

1
Out of stock

34

GROMMET-HOSE BRACKET

43064-001

1
Out of stock

35

BRACKET,BRAKE HOSE

43063-008

1
Out of stock
