1971 Yamaha CT1C (CT1C) Tail Lamp Diagram

← All diagrams

Find the part on the Tail Lamp diagram for your 1971 Yamaha CT1C (CT1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

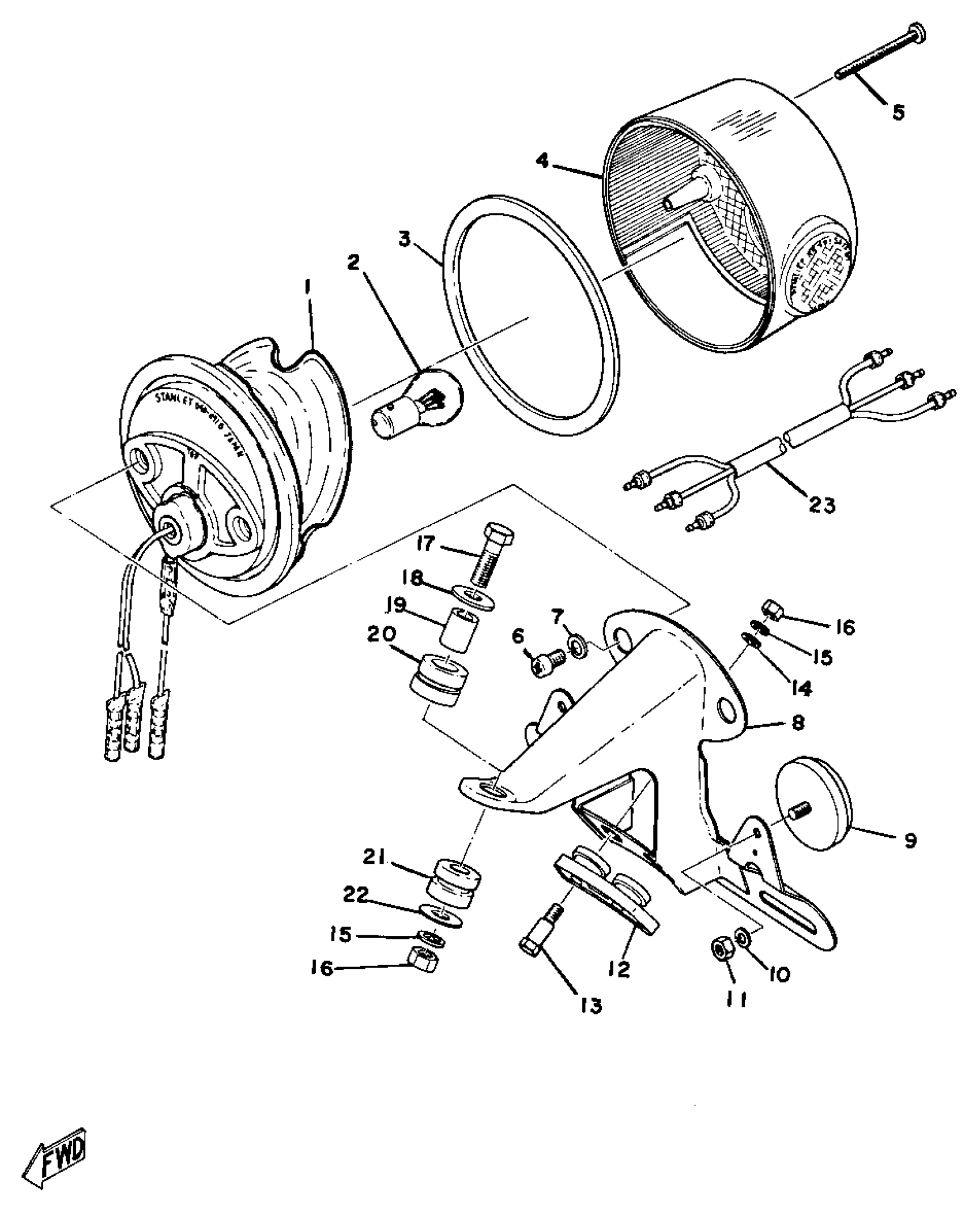

1971 Yamaha CT1C (CT1C) Tail Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

256-84710-61-00

1
Out of stock

1

TAILLIGHT UNIT ASSEMBLY

(275-84510-61-00)

1
Out of stock

1

BASE, TAILLIGHT

(275-84511-61-00)

1
Out of stock

2

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

1
Out of stock

2

BASE, TAILLIGHT

(275-84511-61-00)

1
Out of stock

3

. GASKET, LENS

275-84523-60-00

1
Out of stock

4

LENS, TAILLIGHT

(275-84521-60-00)

1
Out of stock

5

SCREW, PAN HEAD

98507-04050-00

1

$2.12

In stock

6

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

BRACKET, LICENSE

(444-84751-60-20)

1
Out of stock

9

REFLECTOR, FRONT 1

(278-85111-00-00)

1
Out of stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

12

DAMPER

214-84553-01-00

1

$6.72

In stock

13

BOLT 168217380000

90109-06017-00

—
Out of stock

14

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

17

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

18

WASHER

90209-06012-00

—

$4.71

In stock

19

COLLAR (275-84557-00)

90387-07039-00

1
Out of stock

20

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

21

GROMMET (1E2)

90480-14182-00

—

$6.68

In stock

22

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

23

CORD, TAILLIGHT

251-84517-60-00

1
Out of stock
