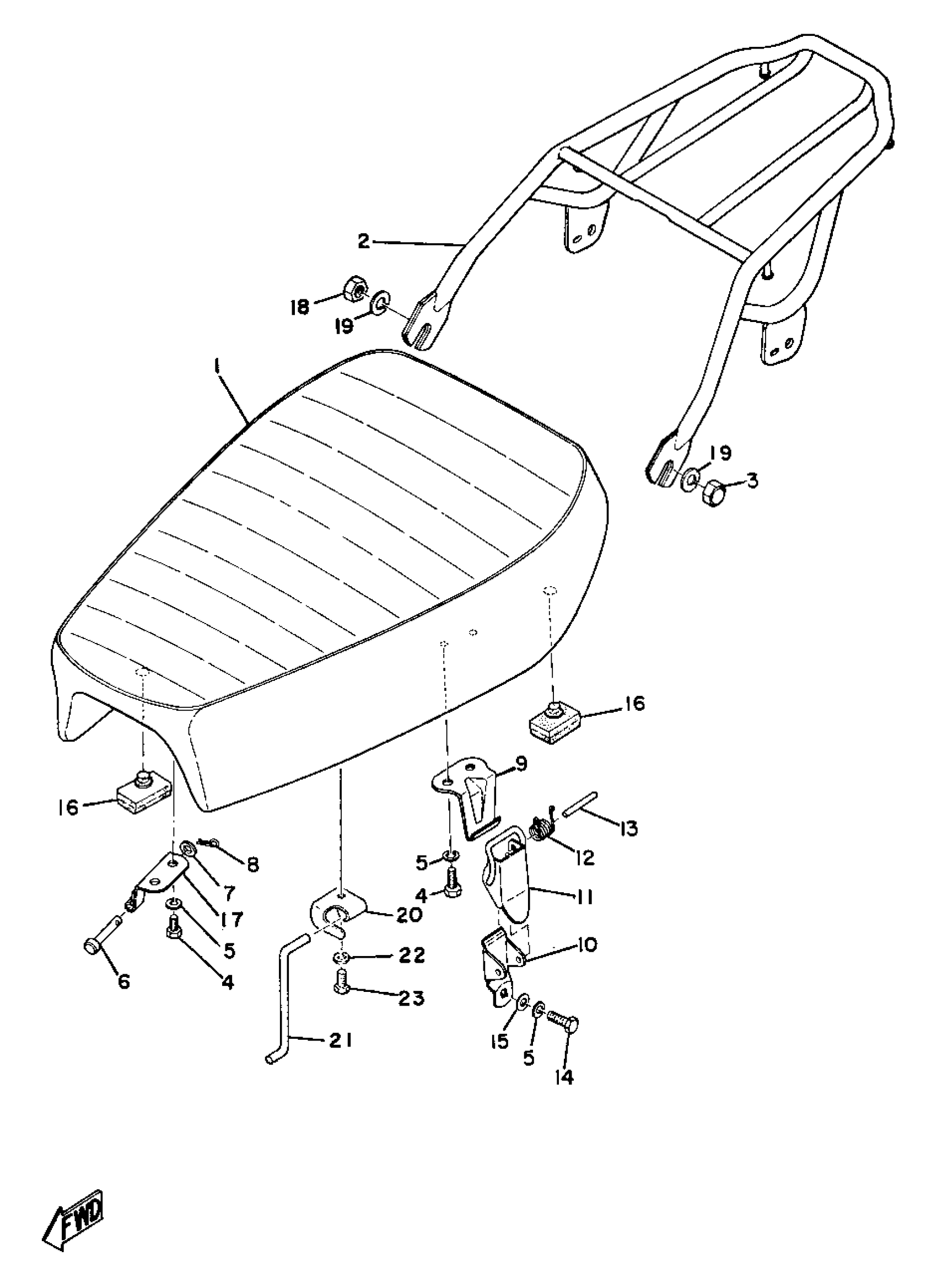

Yamaha CT1C (CT1C) 1971 SEAT & CARRIER Diagram

#

Description
Price

1

SINGLE SEAT ASSEMBLY

(261-24710-01-00)

Unavailable

1

COVER, SINGLE SEAT

(261-24711-00-00)

Unavailable

2

CARRIER AT/CT

(444-24810-00-00)

Unavailable

3

NUT, CROWN (650)

95380-10800-00

$13.52

4

BOLT (661)

97013-06012-00

$4.40

5

WASHER, SPRING

92995-06100-00

$2.95

6

PIN, CLEVIS

91701-05055-00

$5.70

7

. WASHER, PLAIN

92990-05200-00

$4.29

8

CLIP (156-83525-00)

90468-10050-00

$2.16

9

BRACKET, SEAT

(214-24728-00-33)

Unavailable

10

BRACKET, SEAT

214-24718-00-00

Unavailable

11

LEVER, SEAT

214-24776-00-33

Unavailable

12

. SPRING, TORSION

90508-10012-00

Unavailable

13

. PIN, SPECIAL SHAPE

90249-04068-00

Unavailable

14

BOLT(3JP)

97017-06010-00

$2.44

15

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

16

DAMPER, SEAT

214-24724-00-00

Unavailable

17

HINGE, SEAT

248-24726-00-33

Unavailable

18

NUT (682)

95380-10700-00

$5.27

19

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

20

BRACKET, SEAT

(278-24748-00-00)

Unavailable

21

STOPPER

(278-24768-00-00)

Unavailable

22

BOLT (661)

97013-06012-00

$4.40

23

WASHER, SPRING

92995-06100-00

$2.95
