1970 Yamaha CS3C (CS3C) Tachometer Diagram

← All diagrams

Find the part on the Tachometer diagram for your 1970 Yamaha CS3C (CS3C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

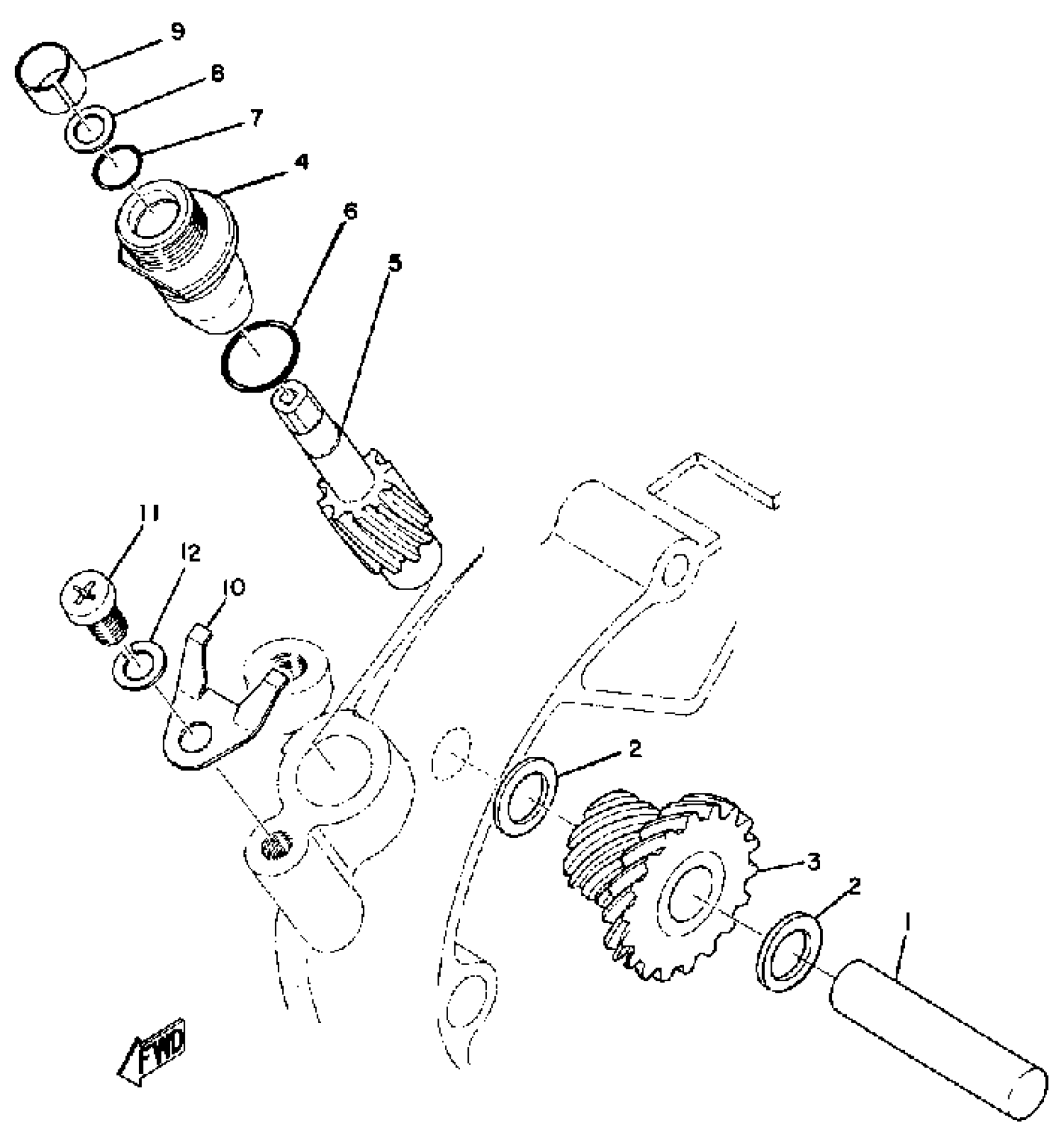

1970 Yamaha CS3C (CS3C) Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, DRIVE GEAR

237-17861-00-00

1
Out of stock

2

SHIM

248-17837-00-00

1
Out of stock

3

GEAR, DRIVE

(237-17831-00-00)

1
Out of stock

4

HOUSING ASSEMBLY, TACH (214-17811-01)

353-17810-00-00

1
Out of stock

5

GEAR, DRIVEN

(248-17841-00-00)

1
Out of stock

6

O-RING (137)

93210-13016-00

1

$5.78

In stock

7

O-RING (214)

93210-07100-00

1

$5.89

In stock

8

SHIM (7.5-10.8-0.4)

214-17847-00-00

1
Out of stock

9

BUSH, FORMED (214-17815-00) 001

90383-10005-00

1
Out of stock

10

STOPPER

5U7-17812-00-00

1
Out of stock

11

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
