1970 Yamaha CS3C (CS3C) Head Lamp, Speedometer & Tachometer Diagram

← All diagrams

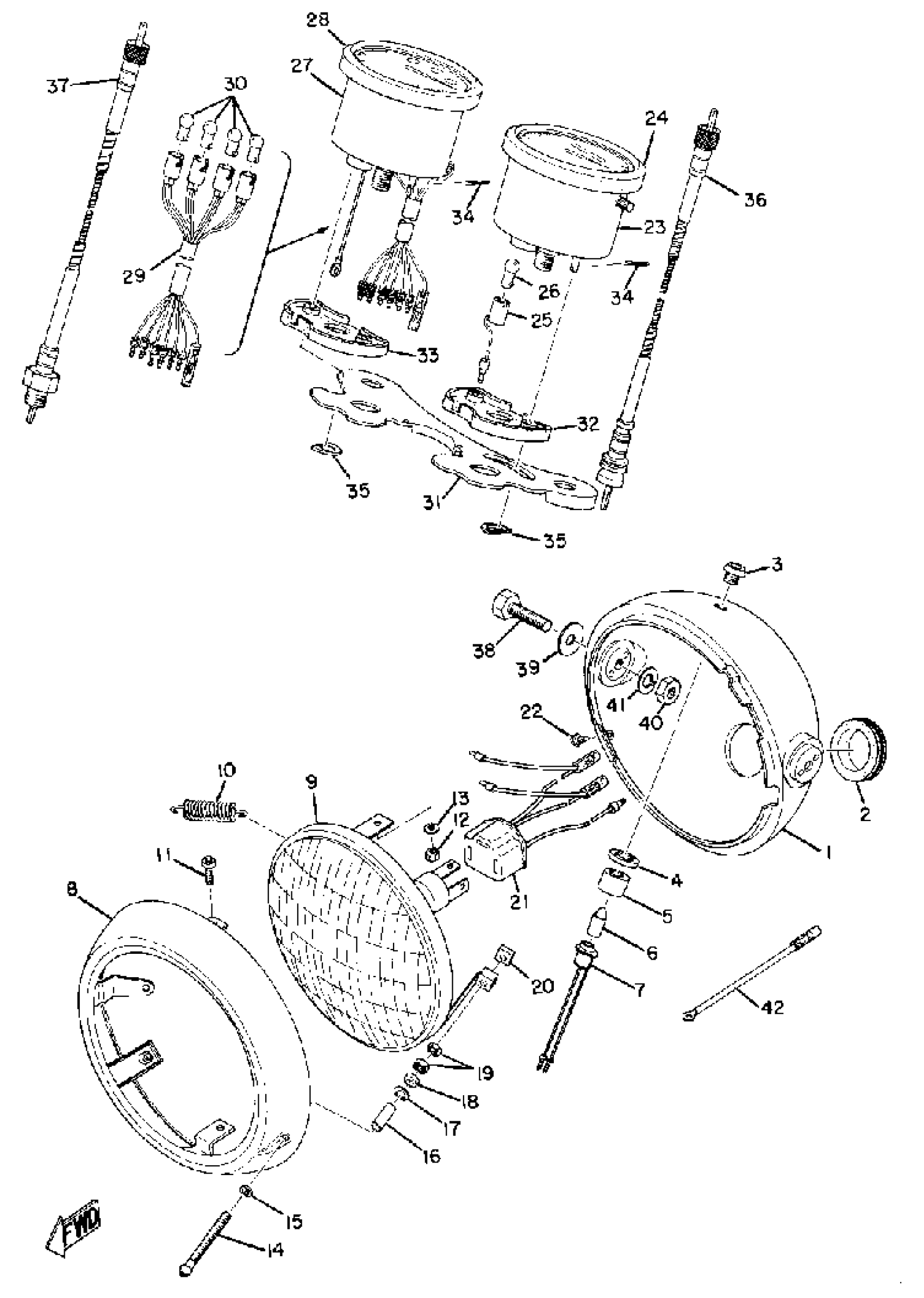

Find the part on the Head Lamp, Speedometer & Tachometer diagram for your 1970 Yamaha CS3C (CS3C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha CS3C (CS3C) Head Lamp, Speedometer & Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

(237-84330-60-64)

1
Out of stock

1

BODY ASSEMBLY

(237-84330-60-R9)

1
Out of stock

1

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

3

PILOT LIGHT ASSEMBLY

214-84101-61-00

1
Out of stock

4

WASHER, IN.TOOTH

(92901-12300-00)

1
Out of stock

5

PILOT LIGHT ASSEMBLY

214-84101-61-00

1
Out of stock

6

BULB

256-84347-00-00

1
Out of stock

7

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

8

RIM, HEADLIGHT

233-84115-60-00

1
Out of stock

9

. LENS ASSEMBLY

273-84320-60-00

1
Out of stock

10

SPRING

(132-84335-60-00)

1
Out of stock

11

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

12

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

SCREW 214841316100

90157-04001-00

—

$5.35

In stock

15

WASHER,SPECIAL

233-84127-60-00

—

$2.78

In stock

16

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

17

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

18

. SPACER

132-84328-60-00

1
Out of stock

19

NUT(6L4)

95380-04700-00

—

$5.62

In stock

20

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

21

SOCKET

246-84312-60-00

1
Out of stock

22

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

23

SPEEDOMETER ASSEMBLY

(237-83510-41-00)

1
Out of stock

24

. DAMPER

336-83513-00-00

1
Out of stock

25

SOCKET, METER

(235-83536-21-00)

1
Out of stock

26

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock

27

TACHOMETER ASSEMBLY

(237-83540-01-00)

1
Out of stock

28

. DAMPER

336-83513-00-00

1
Out of stock

29

SOCKET CORD ASSEMBLY

(235-83520-00-00)

1
Out of stock

30

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock

31

BRACKET, METER

(237-83519-00-33)

1
Out of stock

32

DAMPER

214-83523-00-00

1
Out of stock

33

DAMPER

237-83523-00-00

—

$8.70

In stock

34

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

35

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

36

SPEEDOMETER CABLE (256-83550-00)

237-83550-01-00

1
Out of stock

37

TACHOMETER CABLE

447-83560-01-00

1
Out of stock

38

BOLT (682)

97013-08025-00

—

$6.80

In stock

39

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

40

NUT(6L2)

95333-08600-00

—

$3.20

In stock

41

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

42

WIRE, EARTH

(173-84313-00-00)

1
Out of stock
