1970 Yamaha CS3C (CS3C) Handle & Wire Diagram

← All diagrams

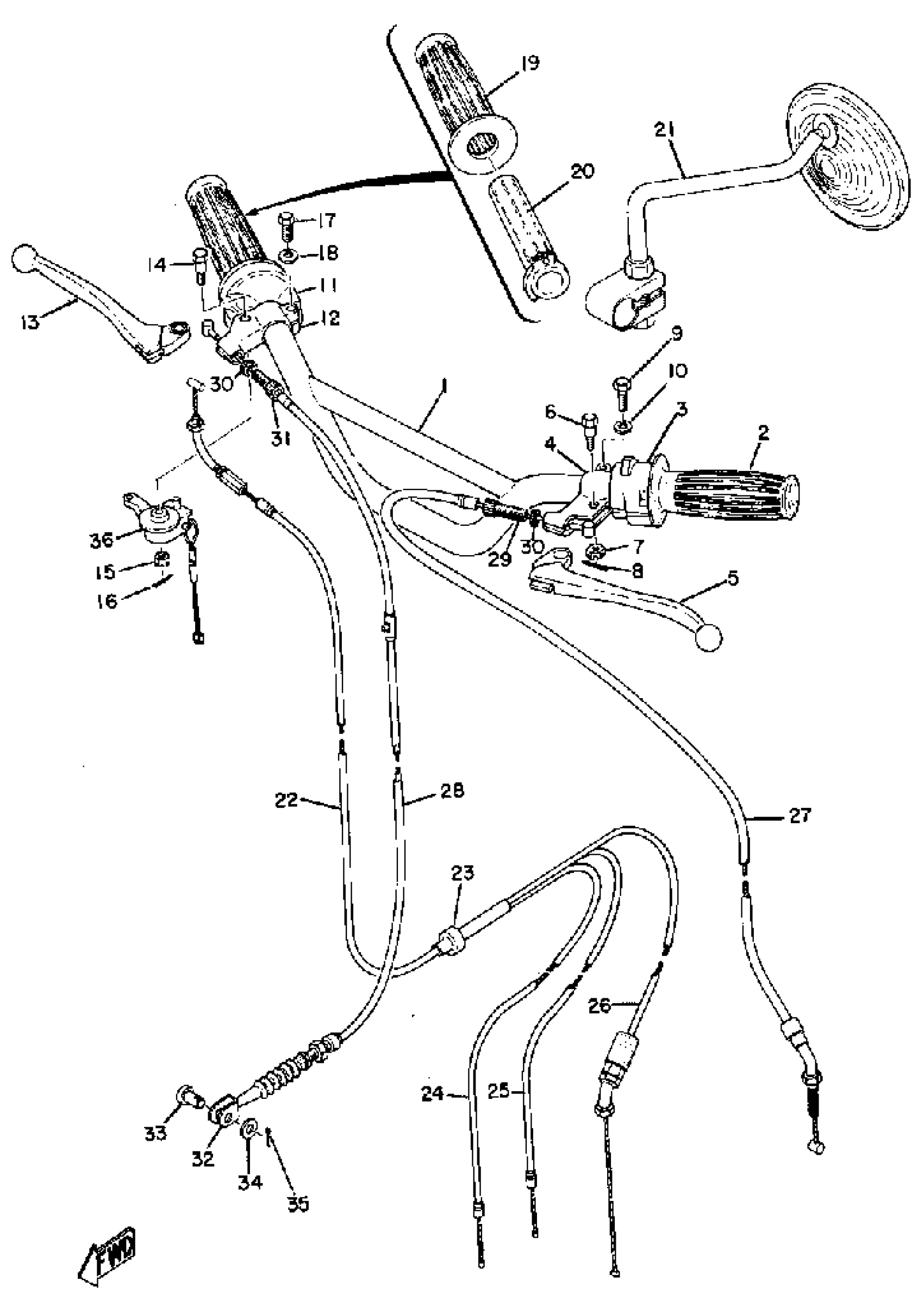

Find the part on the Handle & Wire diagram for your 1970 Yamaha CS3C (CS3C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha CS3C (CS3C) Handle & Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

(157-26111-00-00)

1
Out of stock

1

HANDLEBAR

(173-26111-10-00)

1
Out of stock

1

LEVER HOLDER ASSY 1

214-82910-07-00

1
Out of stock

2

LEVER HOLDER ASSEMBLY 2

(233-82920-33-00)

1
Out of stock

2

GRIP LH

341-26241-00-00

1
Out of stock

3

SWITCH, HANDLE 4

(237-83972-10-00)

1
Out of stock

4

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

5

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

6

. SCREW, LVR FITTING

214-83915-00-00

1
Out of stock

7

. NUT, SLOTTED

95301-06900-00

1
Out of stock

8

. PIN, COTTER

91401-12018-00

1
Out of stock

9

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

SWITCH, HANDLE 1

(237-83976-00-00)

1
Out of stock

12

HOLDER, LEVER (R.H)

233-82921-31-00

1

$58.60

In stock

13

LEVER(R.H)

233-83922-30-00

—

$19.29

In stock

14

SCREW, LVR FITTING

(233-83915-00-00)

1
Out of stock

15

NUT, SLTED

95307-05900-00

1
Out of stock

16

. PIN, COTTER

91401-12018-00

1
Out of stock

17

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

GRIP RH

(306-26242-10-00)

1
Out of stock

20

TUBE, GUIDE

214-26243-00-00

—

$39.75

In stock

21

MIRROR ASSEMBLY LH

253-26290-10-00

1
Out of stock

22

CABLE, THROTTLE 1

(337-26311-00-00)

1
Out of stock

23

CYLINDER, WIRE

156-26261-01-00

1
Out of stock

24

CABLE, THROTTLE 3

(193-26313-00-00)

1
Out of stock

25

CABLE, THROTTLE 3

(237-26313-00-00)

1
Out of stock

26

CABLE, PUMP

(178-26321-00-00)

1
Out of stock

27

CABLE, CLUTCH

396-26335-10-00

1
Out of stock

28

CABLE, BRAKE

(174-26341-10-00)

1
Out of stock

28

CABLE, BRAKE

238-26341-00-00

1
Out of stock

29

BOLT

90123-08002-00

—

$8.93

In stock

30

NUT

90179-08030-00

—

$3.78

In stock

31

BOLT

90123-08002-00

—

$8.93

In stock

32

JOINT, WIRE

156-26347-00-00

—

$7.51

In stock

33

PIN W/HOLE 307181180000

90240-08013-00

—

$5.10

In stock

34

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

35

PIN, COTTER

91490-20025-00

—

$1.31

In stock

36

FRONT STOP SWITCH ASSY

232-83980-30-00

—

$68.85

In stock
← Flasher Lamp Head Lamp & Tail Lamp →
