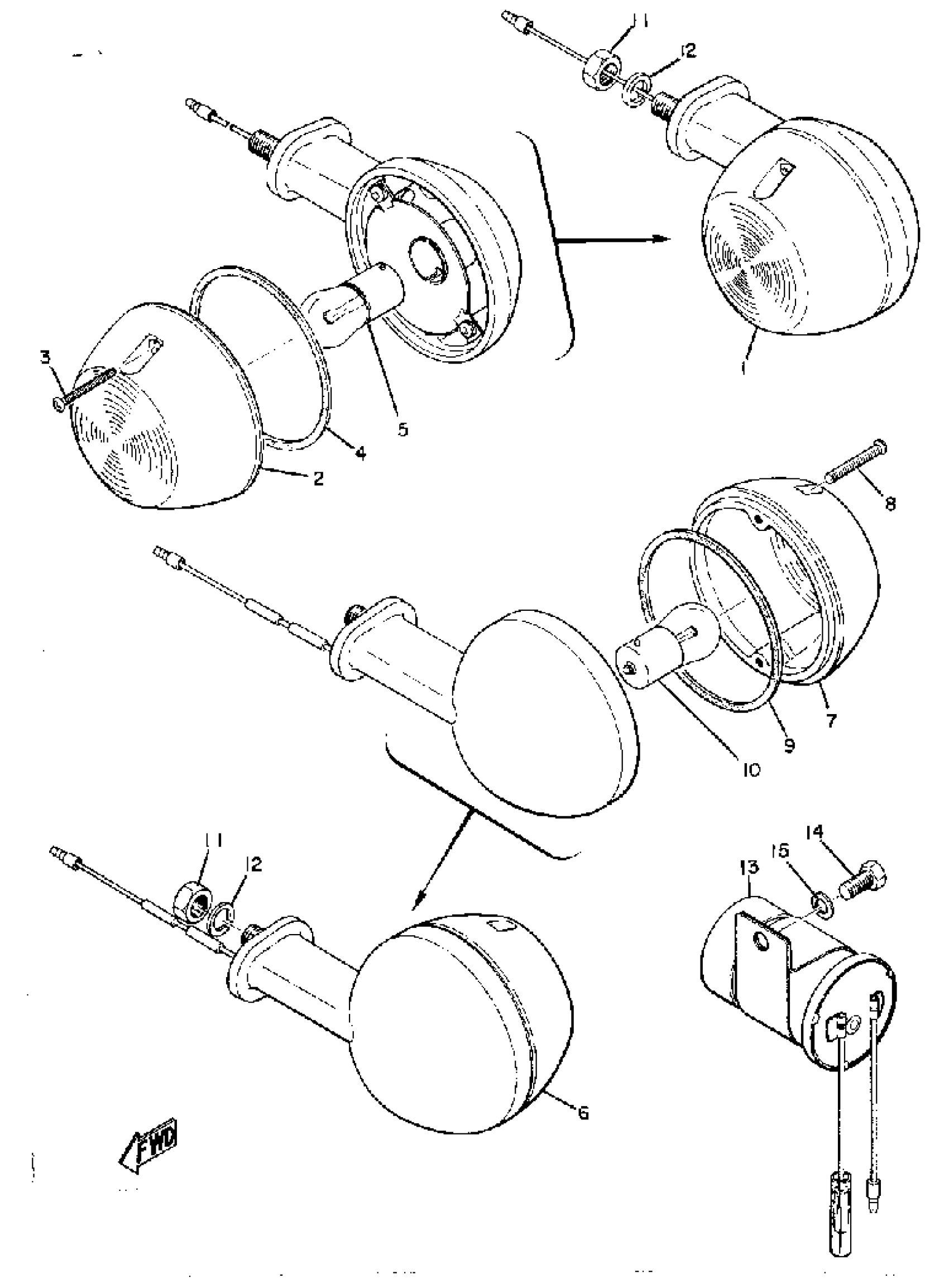

Yamaha CS3C (CS3C) 1970 FLASHER LAMP (CS3C) Diagram

#

Description
Price

1

FRT FLSHR LITE ASSEMBLY

(235-83310-71-93)

Unavailable

2

LENS, FLASHER

183-83312-70-00

Unavailable

3

SCREW, LENS FITTING (3X32)

183-83333-71-00

$7.03

4

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

5

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

6

R FLSHR LITE ASSEMBLY

(235-83330-75-93)

Unavailable

7

. LENS, REAR RED FLASHER

211-83332-75-00

Unavailable

8

SCREW, LENS FITTING (3X32)

183-83333-71-00

$7.03

9

GASKET,FLASHER LANS

183-83313-70-00

Unavailable

10

. BULB (12V-32CP)

256-83311-70-XX

Unavailable

11

. NUT

95380-08700-00

$3.05

12

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

13

FLASHER RELAY ASSEMBLY

173-83350-70-00

Unavailable

14

BOLT (661)

97013-06012-00

$4.40

15

WASHER, SPRING

92995-06100-00

$2.95
