1997 Yamaha Ovation LE (CS340EA) Shroud Diagram

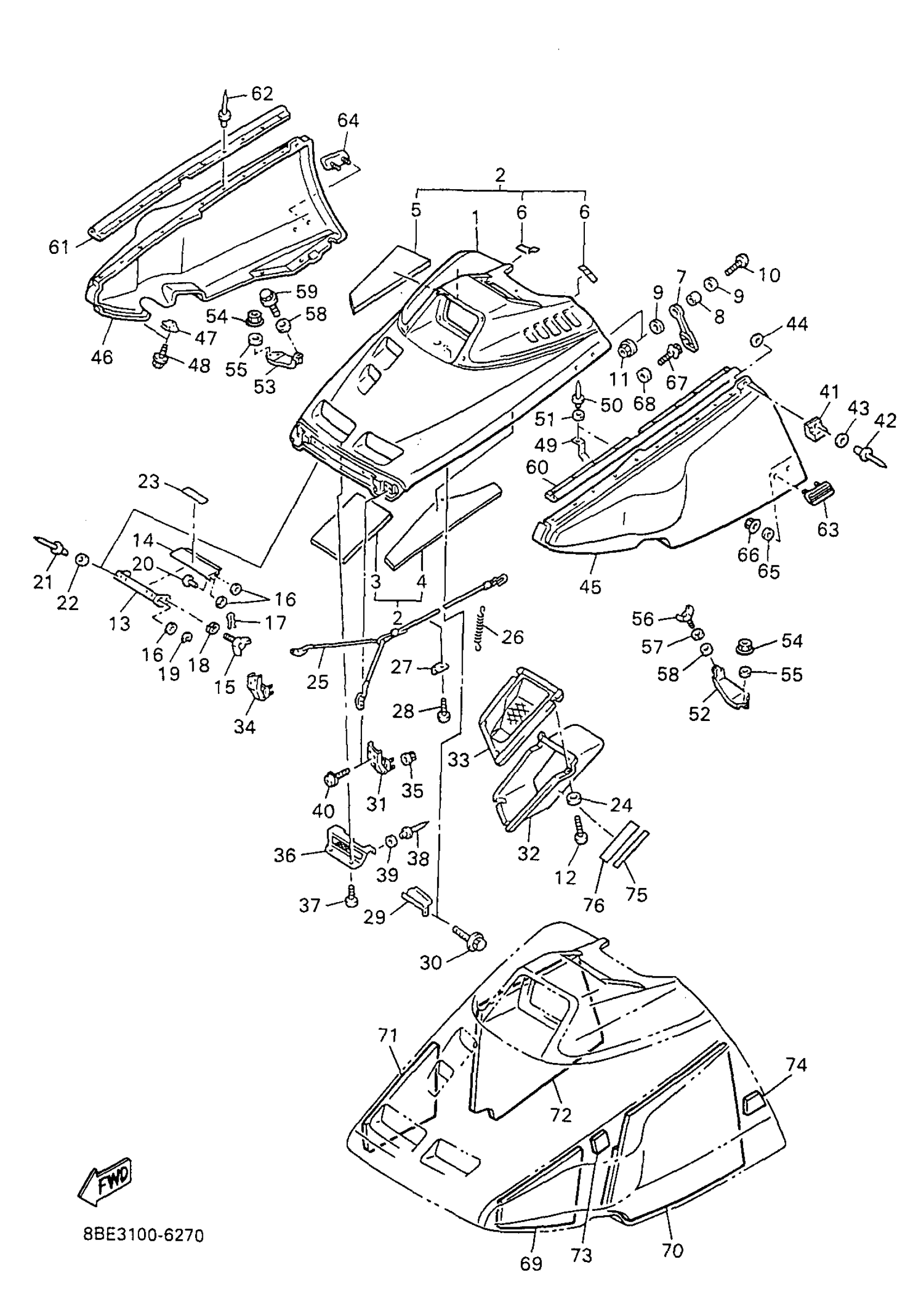

Find the part on the Shroud diagram for your 1997 Yamaha Ovation LE (CS340EA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SHROUD ASSEMBLY
88E-Y7711-10-00
2
LINING SET
89E-W7726-00-00
3
LINING, SHROUD 1
85L-77261-00-00
4
LINING, SHROUD 2
85L-77262-00-00
5
LINING, SHROUD 3
85L-77263-00-00
6
DAMPER, SHROUD
85L-77196-00-00
13
STAY 1
85L-77125-01-00
14
STAY 3
85L-77127-01-00
20
PIN
90249-05136-00
21
RIVET (856)
90267-48014-00
22
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
23
LABEL,WARNING 2
8BE-77762-00-00
25
STOPPER,SHROUD
89X-77118-00-00
26
CLAMP, ROD
80L-77159-00-00
29
PLATE 1
85L-77185-00-00
31
HINGE ASSEMBLY
85L-77140-00-00
32
DUCT
85L-77194-00-00
33
PROTECTOR 3
85L-77553-00-00
34
HINGE ASSEMBLY 2
85L-7714A-00-00
36
PROTECTOR 4
85L-77554-00-00
38
RIVET (856)
90267-48014-00
43
WASHER, SPECIAL
85L-77116-00-00
44
. WASHER, PLATE (90201-04325-00 )
90201-044R6-00
45
HOOD 1
88E-21982-10-00
46
HOOD 2
88E-21983-10-00
49
STAY, BELT
85L-77338-00-00
50
RIVET, BLIND (8K1)
90267-40076-00
51
WASHER, PLATE (8M6)
90201-047A2-00
52
BRACKET 3
85L-2196F-00-00
53
BRACKET 4
85L-2196G-00-00
55
WASHER, PLAIN LARGE
92907-05200-00
60
BUSH, RUBBER 1
85L-77515-00-00
61
BUSH, RUBBER 2
85L-77516-00-00
63
PROTECTOR 1
85L-77551-00-00
64
PROTECTOR 2
85L-77552-00-00
68
PLATE
4U5-2176E-00-00
69
LINING, SHROUD 4
85L-77264-00-00
70
LINING, SHROUD 5
85L-77265-00-00
71
DAMPER, NOISE 12
85L-77272-00-00
72
DAMPER, NOISE 13
85L-77273-00-00
73
TAPE 3
85L-7717G-01-00
74
TAPE 4
85L-7717H-01-00
75
LABEL, CAUTION
87D-1417E-01-00
76
LABEL 1
8Y7-47578-00-00
