1997 Yamaha Ovation LE (CS340EA) Carburetor Diagram

← All diagrams

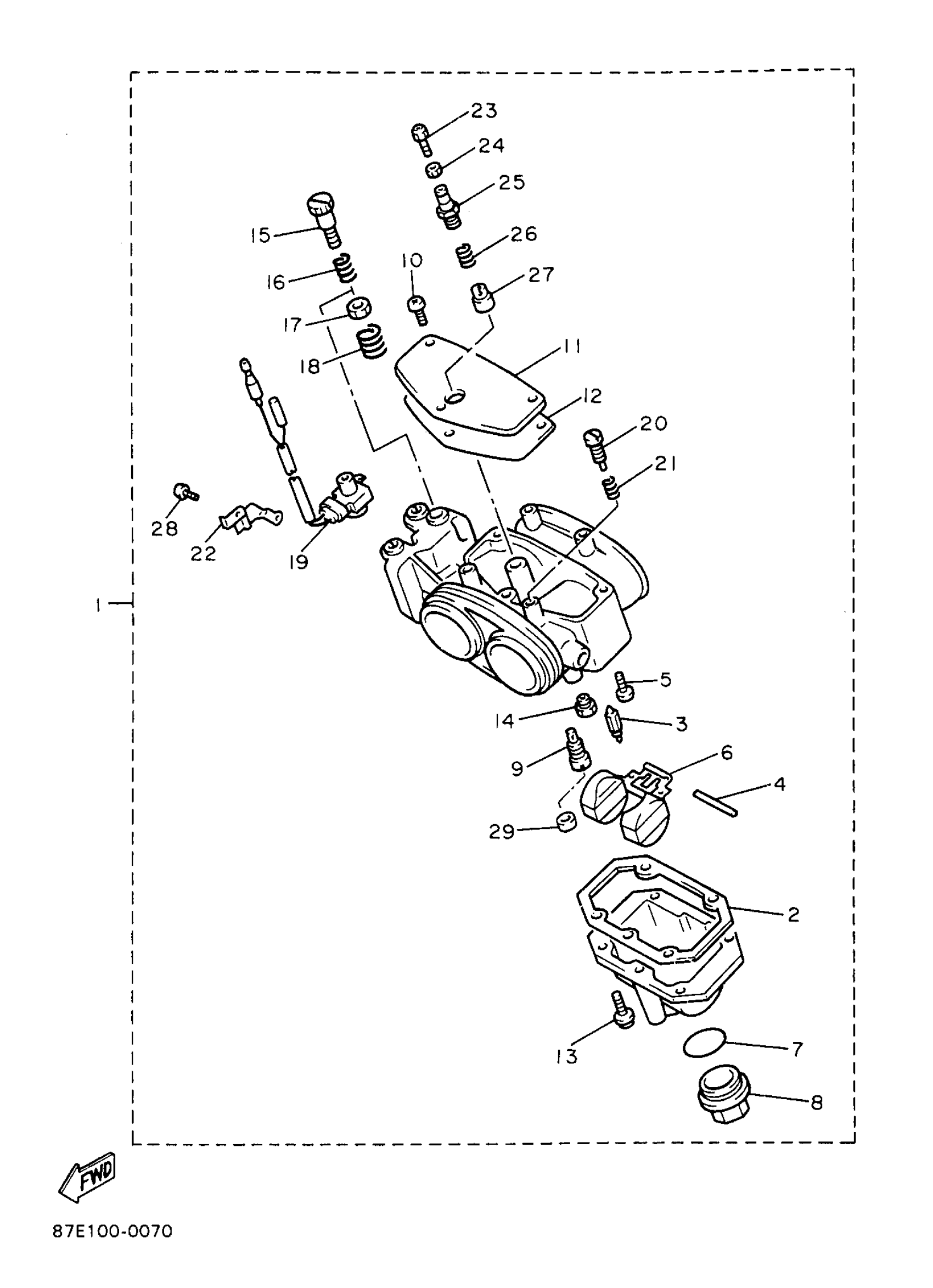

Find the part on the Carburetor diagram for your 1997 Yamaha Ovation LE (CS340EA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Ovation LE (CS340EA) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

87D-14301-01-00

1
Out of stock

2

GASKET, FLOAT CHBR

85L-14384-01-00

1
Out of stock

3

VALVE, NEEDLE

85L-14392-00-00

1

$41.91

In stock

4

. PIN, FLOAT

6E5-14386-01-00

1

$5.34

In stock

5

SCREW, BIND(6L2)

98980-04006-00

1

$4.89

In stock

6

. FLOAT

87D-14385-00-00

1
Out of stock

7

O-RING

85L-14147-00-00

1
Out of stock

8

. PLUG, DRAIN

85L-14191-00-00

1
Out of stock

9

. JET, PILOT (# 72)

85L-14342-36-00

1
Out of stock

9

. JET, PILOT (# 76)

85L-14342-38-00

1
Out of stock

10

GASKET, EXHAUST

98507-05008-00

1

$2.69

In stock

11

. COVER, MIXING

85L-14157-00-00

1
Out of stock

12

. WASHER

85L-14227-00-00

1
Out of stock

13

SCREW, PAN HEAD

98517-04016-00

1
Out of stock

14

JET, MAIN #152

288-14343-76-00

1
Out of stock

14

JET,MAIN #156

288-14329-78-00

1
Out of stock

14

. JET, MAIN (162)

288-14329-81-00

1
Out of stock

14

. JET, MAIN (166)

288-14329-83-00

1
Out of stock

14

. JET, MAIN (#168)

288-14329-84-00

1
Out of stock

14

. JET, MAIN (#172)

288-14329-86-00

1
Out of stock

14

. JET, MAIN (#174)

288-14329-87-00

1
Out of stock

14

. JET, MAIN (#176)

288-14329-88-00

1
Out of stock

14

JET, MAIN (# 160)

288-14343-80-00

—

$8.97

In stock

14

JET, MAIN (# 170)

288-14343-85-00

—
Out of stock

15

. SCREW, THROTTLE

85L-14321-00-00

1
Out of stock

16

. SPRING, THROTTLE STOP

85L-14333-00-00

1
Out of stock

17

. NUT

85L-14358-00-00

1
Out of stock

18

. SPRING, THROTTLE STOP

85L-14133-00-00

1
Out of stock

19

SWITCH, CARBURETOR

87S-8259A-01-00

—

$73.57

In stock

20

. SCREW, AIR ADJUSTING

85L-14323-00-00

1
Out of stock

21

. SPRING, AIR ADJUSTING

85L-14334-00-00

1
Out of stock

22

. PLATE

85L-14146-00-00

1
Out of stock

23

. SCREW, CABLE ADJUSTING

288-14124-00-00

1
Out of stock

24

NUT, CABLE ADJUSTING

85L-14161-00-00

1
Out of stock

25

. CAP, PLUNGER

85L-14374-00-00

1
Out of stock

26

SPRING, PLUNGER

85L-14335-01-00

1
Out of stock

27

. PLUNGER, STARTER

87D-14371-00-00

1
Out of stock

28

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

29

PLUG

50M-14355-01-00

—
Out of stock
