1997 Yamaha Ovation Le (CS340EA) Crankshaft Piston Diagram

← All diagrams

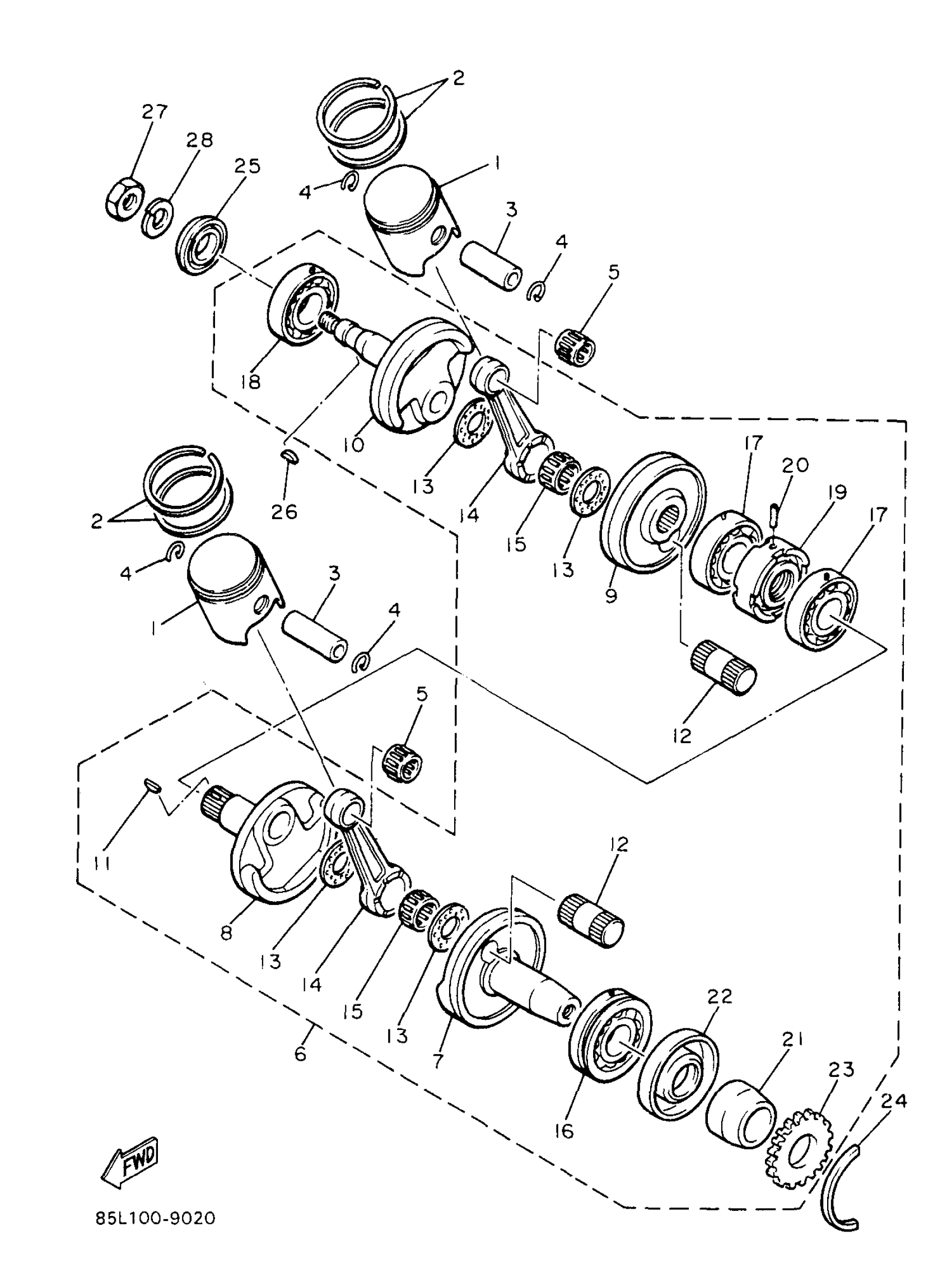

Find the part on the Crankshaft Piston diagram for your 1997 Yamaha Ovation Le (CS340EA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Ovation Le (CS340EA) Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON (STD)

85L-11631-00-96

1
Out of stock

1

PISTON (0.25MM O/S)

85L-11635-00-00

1
Out of stock

1

PISTON (0.50MM O/S)

85L-11636-00-00

1
Out of stock

2

PISTON RING SET (STD)

8G8-11601-00-00

1
Out of stock

2

PISTON RING SET (0.25MM O/S)

8G8-11601-10-00

1
Out of stock

2

PISTON RING SET (0.50MM O/S)

8G8-11601-20-00

1
Out of stock

3

PIN, PISTON

137-11633-10-00

1
Out of stock

4

CIRCLIP (137-11634-00)

93450-17025-00

1
Out of stock

5

BRG,CYL-CAL ROLLER 14-7G KY

93310-216E1-00

1
Out of stock

6

CRANKSHAFT ASSEMBLY

85L-11400-00-00

1
Out of stock

7

. CRANK 1

8G8-11412-01-00

1
Out of stock

8

. CRANK 2

8L3-11422-01-00

1
Out of stock

9

. CRANK 3

8L3-11432-01-00

1
Out of stock

10

. CRANK 4

8G8-11442-01-00

1
Out of stock

11

KEY, WOOD RUFF (324)

90280-05014-00

1
Out of stock

12

PIN, CRANK

8G8-11681-00-00

—
Out of stock

13

WASHER (29L)

90209-22248-00

—
Out of stock

14

ROD, CONNECTING

34X-11651-00-00

—
Out of stock

15

BEARING, CYLIMDRICAL (4A7)

93310-422L0-00

—
Out of stock

16

. BEARING (B6306)

93306-30618-00

1
Out of stock

17

BEARING (8G8)

93306-20617-00

—
Out of stock

18

BEARING

93306-30571-00

—
Out of stock

19

. SEAL, LABYRINTH 1

8L3-11515-01-00

1
Out of stock

20

PIN, SPRING (663)

91690-30010-00

1
Out of stock

21

. COLLAR

82Y-11478-00-00

1
Out of stock

22

. OIL SEAL

93102-40373-00

1
Out of stock

23

. GEAR, PUMP DRIVE

85L-13178-00-00

1
Out of stock

24

CIRCLIP (1J7)

93440-72049-00

—
Out of stock

25

OIL SEAL (8G8)

93102-25183-00

—
Out of stock

26

KEY, WOODRUFF

90280-05001-00

—
Out of stock

27

NUT

90170-16425-00

—
Out of stock

28

WASHER(JN5)

92907-16100-00

—
Out of stock
