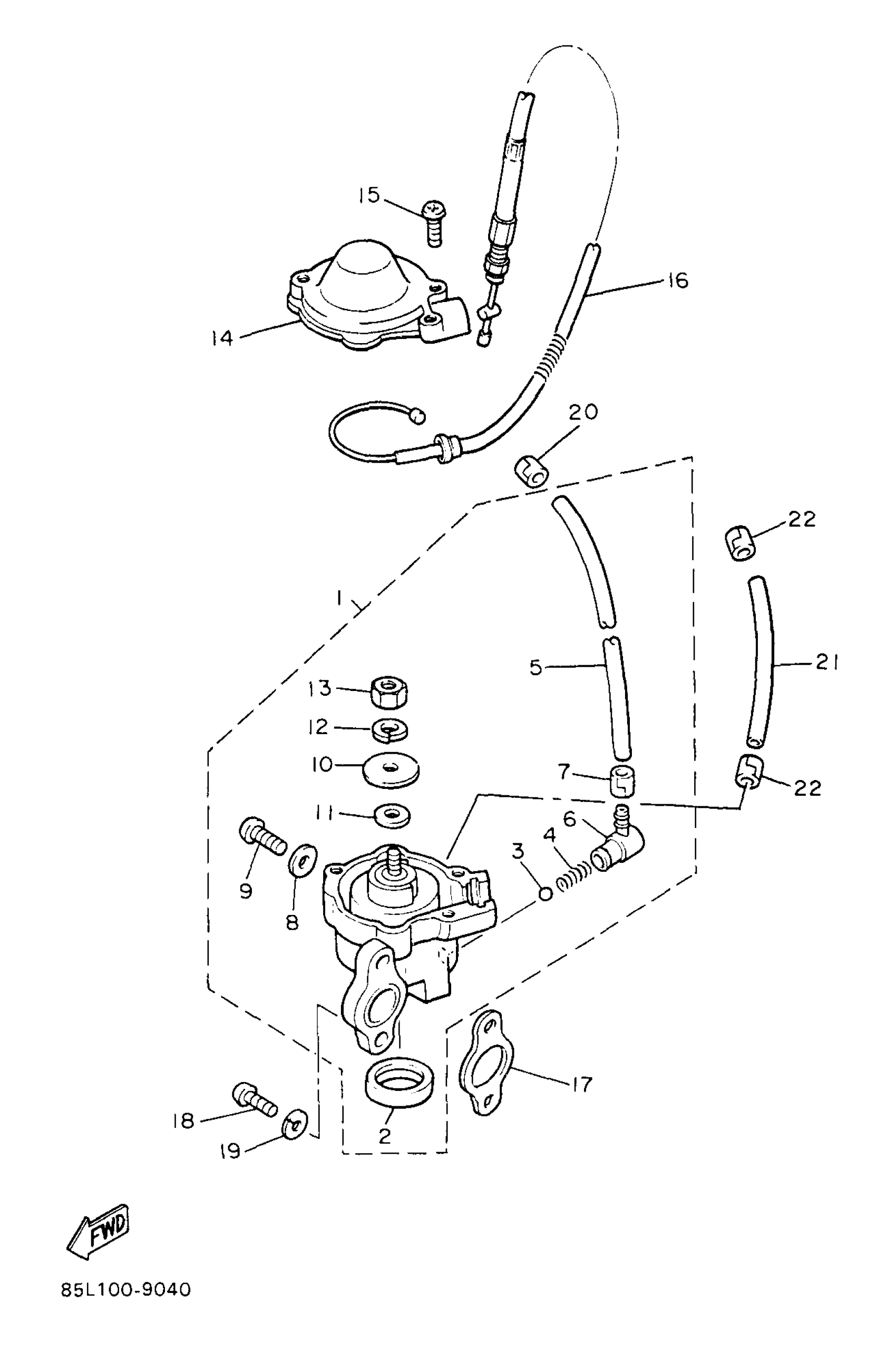

Find the part on the OIL Pump diagram for your 1997 Yamaha Ovation LE (CS340EA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Ovation LE (CS340EA) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

85L-13101-00-00

1
Out of stock

2

. PLUG

90338-21100-00

1
Out of stock

3

BALL

93505-32002-00

1

$2.22

In stock

4

SPRING (278-13169-00)

90501-02018-00

1

$7.69

In stock

5

HOSE

91A30-03052-00

1
Out of stock

6

NOZZLE

353-13552-01-00

1
Out of stock

7

CLIP (2A6)

90468-02025-00

1

$7.02

In stock

8

GASKET 137131870000

90430-04004-00

1
Out of stock

9

SCREW, BIND

98980-04008-00

1

$3.26

In stock

10

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

11

SHIM,PLUNGER

137-13137-00-03

1

$5.35

In stock

11

SHIM,PLUNGER

137-13137-00-05

1

$5.32

In stock

11

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

COVER, ADJUST PULLEY

8A5-13146-01-00

—

$15.95

In stock

15

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

16

PUMP CABLE ASSY

85L-26320-00-00

1
Out of stock

17

GASKET, PUMP CASE

126-13116-01-00

—
Out of stock

18

SCREW, PAN HEAD(JJ6)

98507-05016-00

—

$1.40

In stock

19

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

20

CLIP (2A6)

90468-02025-00

1

$7.02

In stock

21

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

—

$8.80

In stock

22

CLIP (8A1)

90467-09026-00

—

$2.72

In stock
