1988 Kawasaki Concours Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

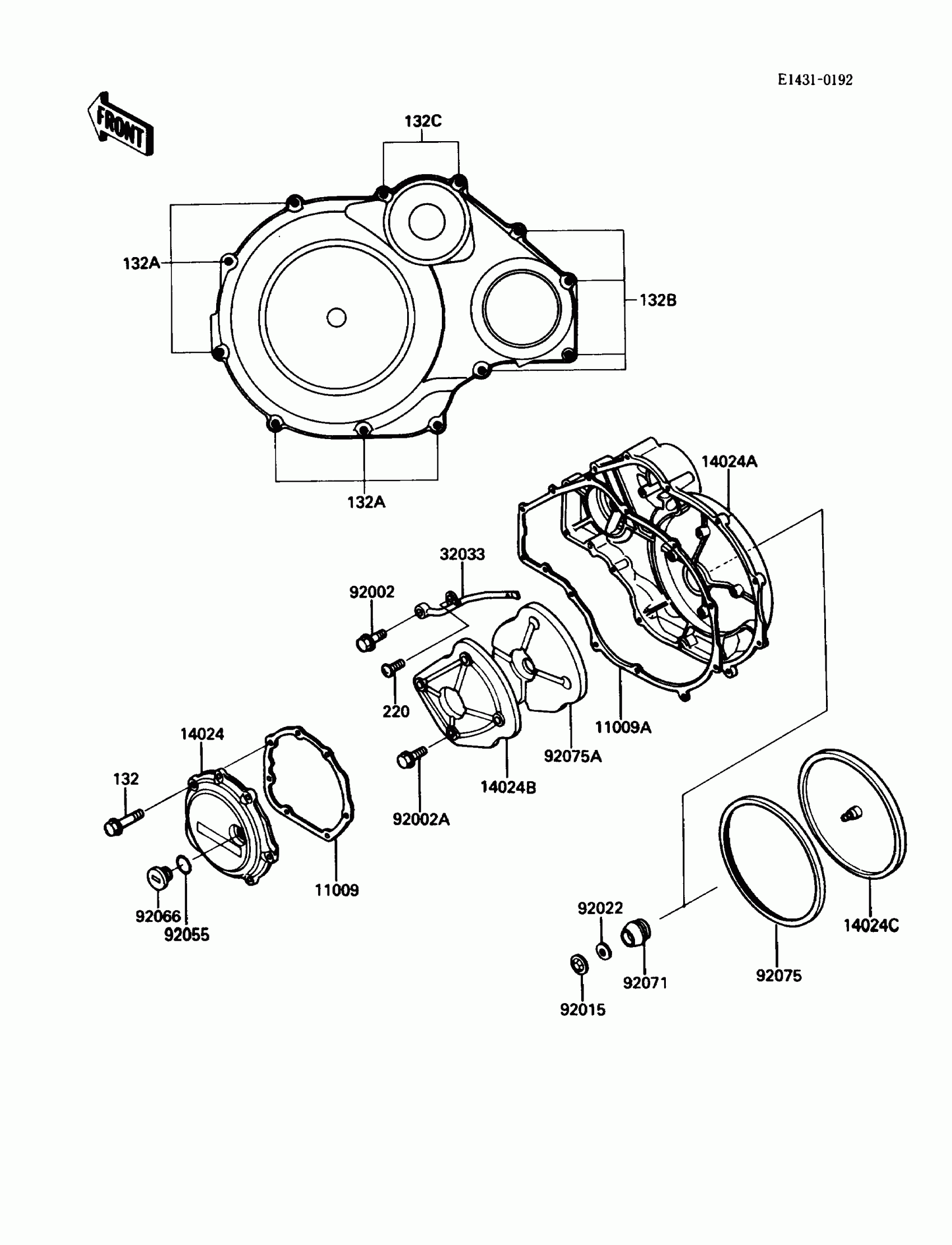

1988 Kawasaki Concours Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,COVER,LH

11009-1387

1
Out of stock

11009A

GASKET,CLUTCH COVER

11009-1388

1
Out of stock

14024

COVER,LH

14024-1066

1
Out of stock

14024A

COVER,CLUTCH

14024-1067

1
Out of stock

14024B

COVER,SOUND ARRESTER

14025-1740

1
Out of stock

14024C

COVER,CLUTCH COVER

14025-1814

1
Out of stock

32033

PIPE,CLUTCH COVER

32033-1204

1

$31.22

In stock

92002

BOLT,BANJO,8X20

92001-1855

1

$8.44

In stock

92002A

BOLT,6X10

92002-1449

1

$3.68

In stock

92015

NUT,SPEED,5MM

92018-004

1

$3.92

In stock

92022

WASHER,5.5X20X1.2

92022-104

1

$3.43

In stock

92055

RING-O,20X2

92055-1146

1

$6.82

In stock

92066

PLUG,COVER,LH

92066-1218

1

$14.00

In stock

92071

1

$5.32

In stock

92075

DAMPER,CLUTCH COVER

92075-1594

1

$29.19

In stock

92075A

1

$138.78

In stock

132

BOLT-FLANGED-SMALL

132W0620

1
Out of stock

132A

BOLT-FLANGED-SMALL

132W0625

1
Out of stock

132B

BOLT-FLANGED-SMALL

132W0640

1
Out of stock

132C

BOLT-FLANGED-SMALL

132W0655

1
Out of stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock
