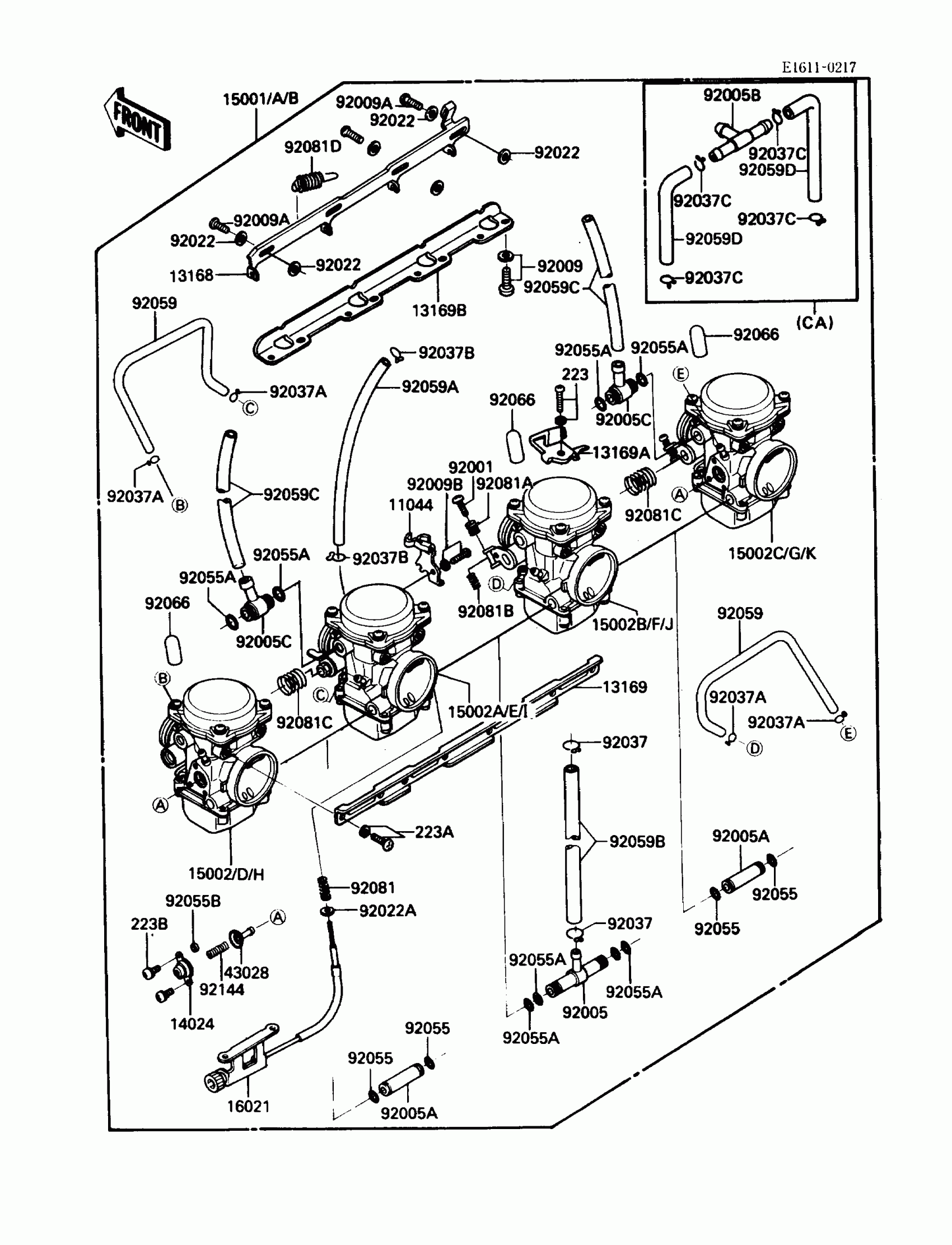

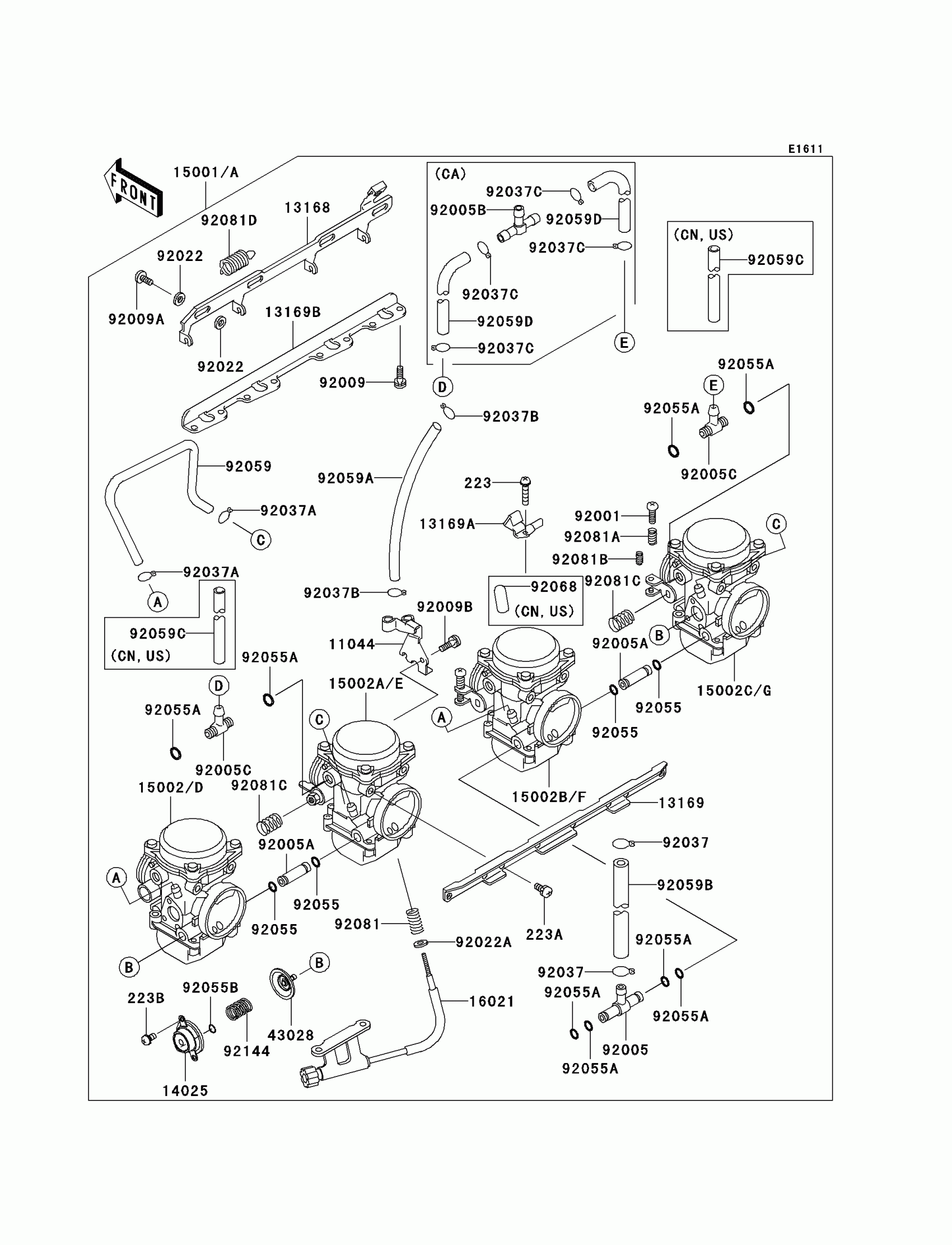

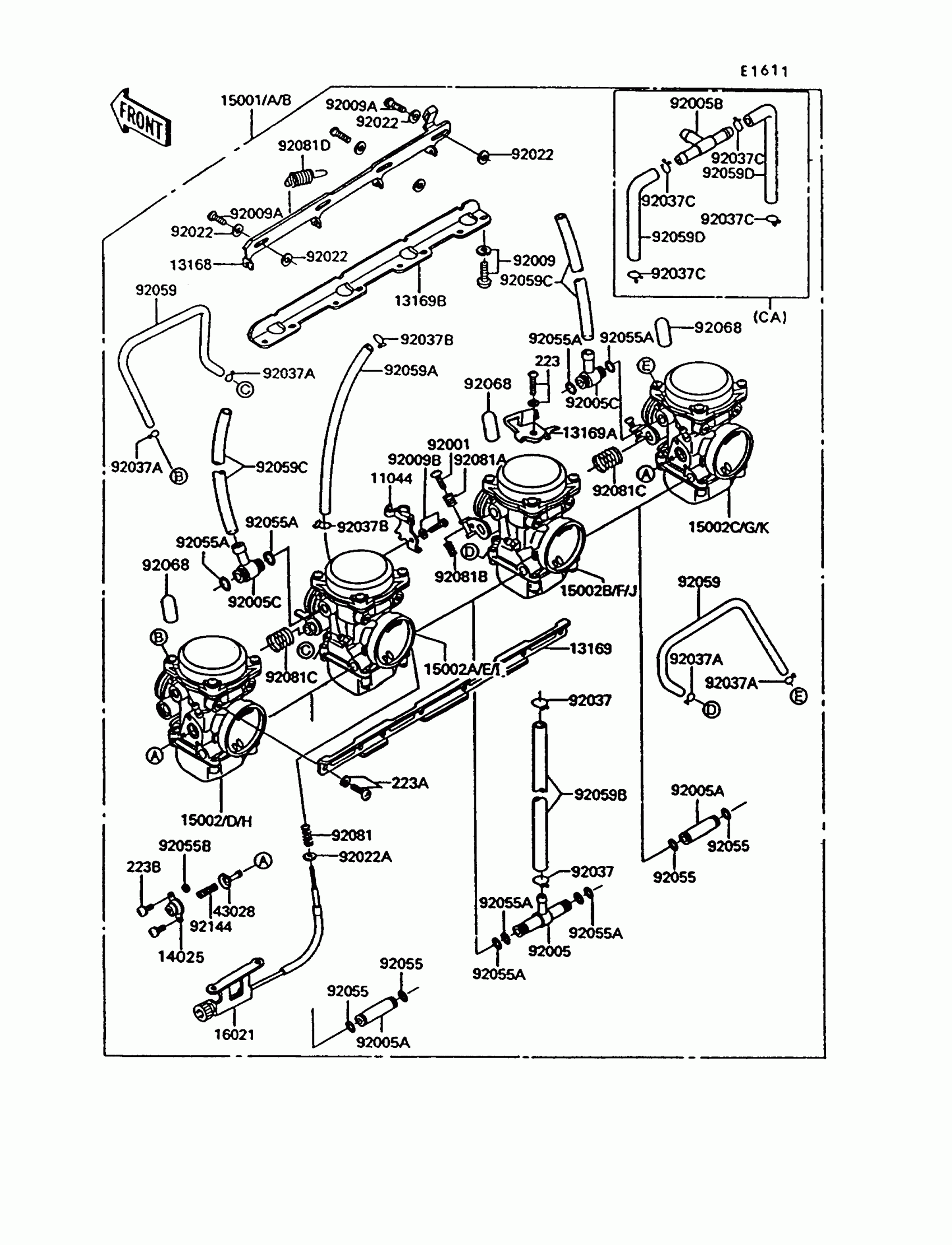

Find the part on the Carburetor diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Concours Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

1

$70.10

In stock

13168

LEVER,STARTER

13168-1245

1

$125.91

In stock

13169

1

$122.60

In stock

13169A

PLATE,STARTER CABLE

13169-1871

1
Out of stock

13169B

1

$122.60

In stock

14024

COVER,AIR CUT VALVE

14025-1903

1

$59.59

In stock

15001

CARBURETOR-ASSY

15001-1247

1
Out of stock

15001A

CARBURETOR-ASSY

15001-1251

1

$2,863.96

In stock

15001B

CARBURETOR-ASSY

15001-1252

1

$2,813.71

In stock

15002

CARBURETOR,LH,OUTSIDE

15002-1346

1
Out of stock

15002A

CARBURETOR,LH,INSIDE

15002-1347

1
Out of stock

15002B

CARBURETOR,RH,INSIDE

15002-1348

1
Out of stock

15002C

CARBURETOR,RH,OUTSIDE

15002-1349

1
Out of stock

15002D

1

$735.16

In stock

15002E

1

$722.03

In stock

15002F

1

$735.16

In stock

15002G

1

$722.03

In stock

15002H

1

$770.77

In stock

15002I

1

$770.77

In stock

15002J

1

$770.77

In stock

15002K

1

$784.67

In stock

16021

SCREW-THROTTLE STOP

16021-1101

1

$123.70

In stock

43028

DIAPHRAGM,5.9MM,AIR CUT VALVE

43028-1053

1
Out of stock

92001

1

$15.88

In stock

92005

FITTING,FUEL,T-TYPE

92005-1108

1
Out of stock

92005A

FITTING,FUEL,I-TYPE

92005-1109

1
Out of stock

92005B

FITTING,T-TYPE

92005-1119

1
Out of stock

92005C

FITTING,T-TYPE

92005-1125

1
Out of stock

92009

SCREW,6X16

92009-1129

1
Out of stock

92009A

SCREW

92009-1262

1
Out of stock

92009B

SCREW,5X10

92009-1365

1
Out of stock

92022

1

$3.82

In stock

92022A

1

$4.42

In stock

92037

CLAMP,FUEL TUBE

92037-1075

1

$3.16

In stock

92037A

CLAMP,TUBE

92037-1142

1

$3.43

In stock

92037B

CLAMP,TUBE

92037-1477

1

$3.43

In stock

92037C

CLAMP,TUBE

92037-1606

1

$4.92

In stock

92055

RING-O

92055-1004

1

$3.43

In stock

92055A

RING-O

92055-1223

1

$4.37

In stock

92055B

RING-O

92055-1245

1

$4.42

In stock

92059

TUBE,3.5X6.5X180

92059-1140

1

$21.76

In stock

92059A

TUBE,5X9X200

92059-1173

1

$24.51

In stock

92059B

TUBE,7.3X12.5X260

92059-1492

1

$34.56

In stock

92059C

TUBE,6.5X9.5X260

92059-1598

1

$34.01

In stock

92059D

TUBE,7X11X140

92059-1688

1
Out of stock

92066

PLUG,12X25

92068-006

1

$3.39

In stock

92066

PLUG,12X25

92068-006

1

$3.39

In stock

92081

1

$5.32

In stock

92081A

SPRING

92081-1620

1

$3.94

In stock

92081B

1

$4.12

In stock

92081C

1

$10.27

In stock

92081D

1

$22.88

In stock

92144

1

$10.54

In stock

223

SCREW-PAN-WS-CROS,4X20

223C0420

1
Out of stock

223A

1

$3.28

In stock

223B

1

$1.17

In stock
