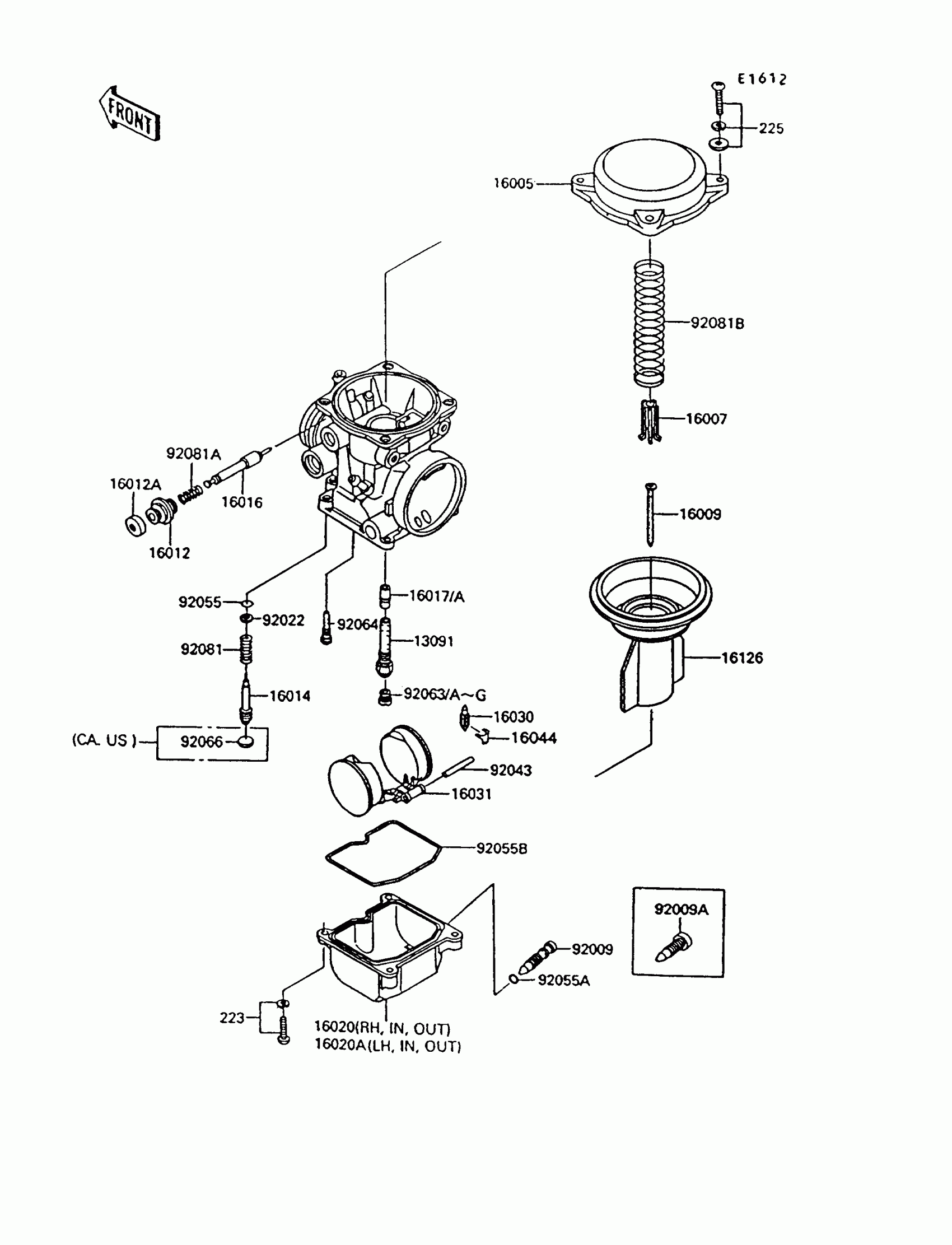

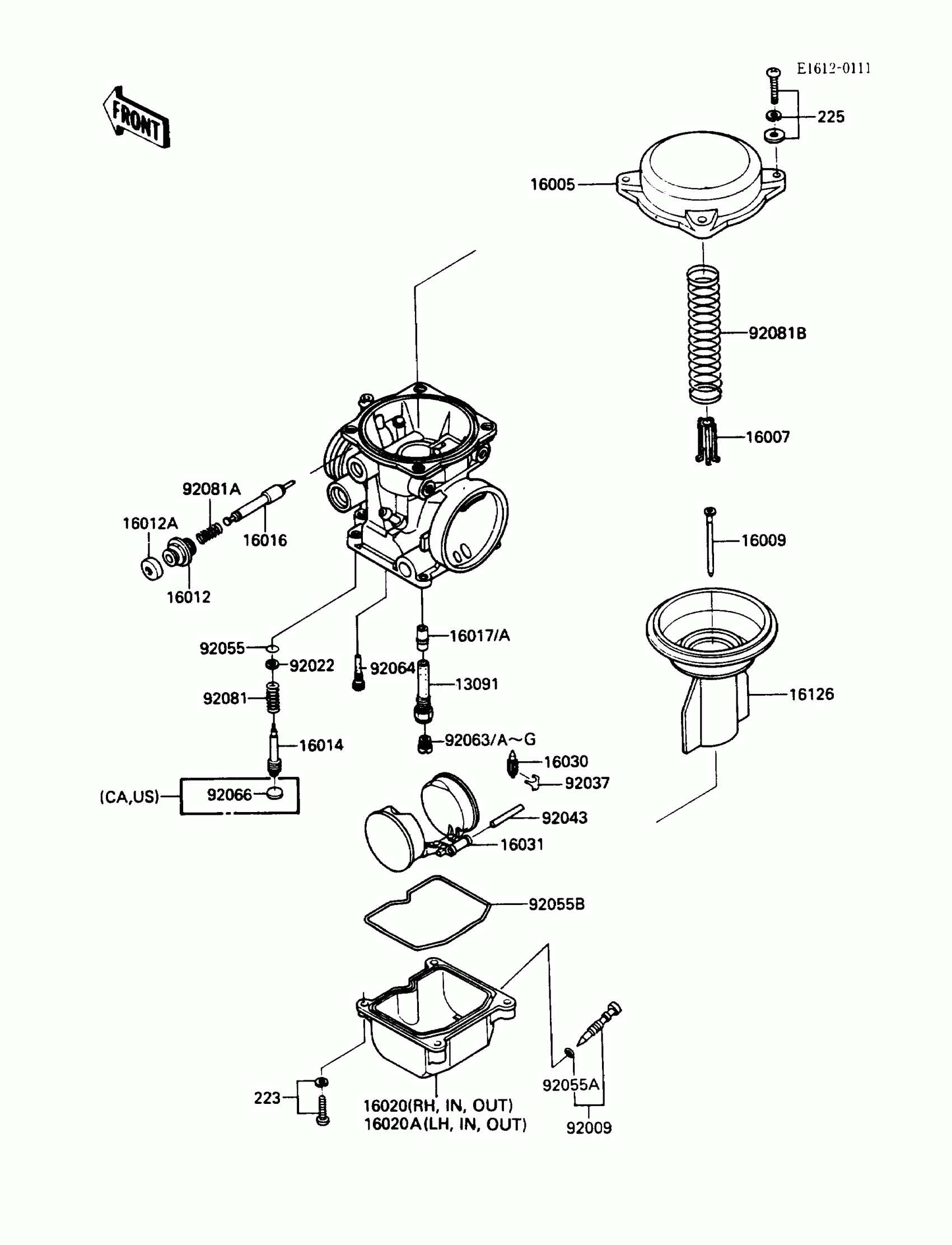

Find the part on the Carburetor Parts diagram for your 1988 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Concours Carburetor Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,NEEDLE JET

13091-1259

1
Out of stock

16005

TOP-CHAMBER,MIXING

16005-1056

1

$72.08

In stock

16007

1

$23.70

In stock

16009

NEEDLE-JET,N52M

16009-1326

1
Out of stock

16012

CAP-STARTER PLUNGER

16012-1051

1

$8.86

In stock

16012A

CAP-STARTER PLUNGER

16012-1052

1

$12.22

In stock

16014

SCREW-PILOT AIR

16014-1054

1

$23.12

In stock

16016

PLUNGER,STARTER

16016-1061

1

$45.45

In stock

16017

JET-NEEDLE

16017-1313

1
Out of stock

16017A

JET-NEEDLE

16017-1316

1
Out of stock

16020

1

$149.91

In stock

16020A

1

$136.52

In stock

16030

VALVE-FLOAT

16030-1007

1

$43.50

In stock

16031

FLOAT

16031-1056

1

$48.44

In stock

16126

VALVE,VACUUM

16126-1160

1

$204.57

In stock

92009

SCREW,DRAIN,M6X1.0

92009-1487

1
Out of stock

92022

WASHER,PLAIN

92022-1003

1

$3.43

In stock

92037

CLAMP,FLOAT VALVE

16044-007

1

$6.30

In stock

92043

PIN,FLOAT

92043-1207

1

$10.71

In stock

92055

RING-O,PILOT ADJUST

92055-1002

1

$3.43

In stock

92055A

RING-O

92055-1053

1

$3.38

In stock

92055B

1

$13.70

In stock

92063

JET-MAIN,#135

92063-1014

1

$11.16

In stock

92063A

JET-MAIN,#125

92063-1069

1

$14.02

In stock

92063B

JET-MAIN,#120

92063-1072

1

$14.02

In stock

92063C

JET-MAIN,#122

92063-1073

1

$14.02

In stock

92063D

JET-MAIN,#128

92063-1074

1

$13.39

In stock

92063E

JET-MAIN,#130

92063-1075

1

$13.39

In stock

92063F

JET-MAIN,#130

92063-1075

1

$13.39

In stock

92063G

JET-MAIN,#132

92063-1076

1

$13.39

In stock

92064

JET-PILOT,#35

92064-1101

1

$13.38

In stock

92066

1

$4.01

In stock

92081

1

$4.34

In stock

92081A

1

$9.31

In stock

92081B

SPRING,VACUUM VALVE

92081-1925

1

$23.73

In stock

223

1

$3.28

In stock

225

SCREW-PAN-WSP-CROS,4X18

225C0418

1
Out of stock
