1991 Kawasaki Concours AIR Filter Diagram

← All diagrams

Find the part on the AIR Filter diagram for your 1991 Kawasaki Concours, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

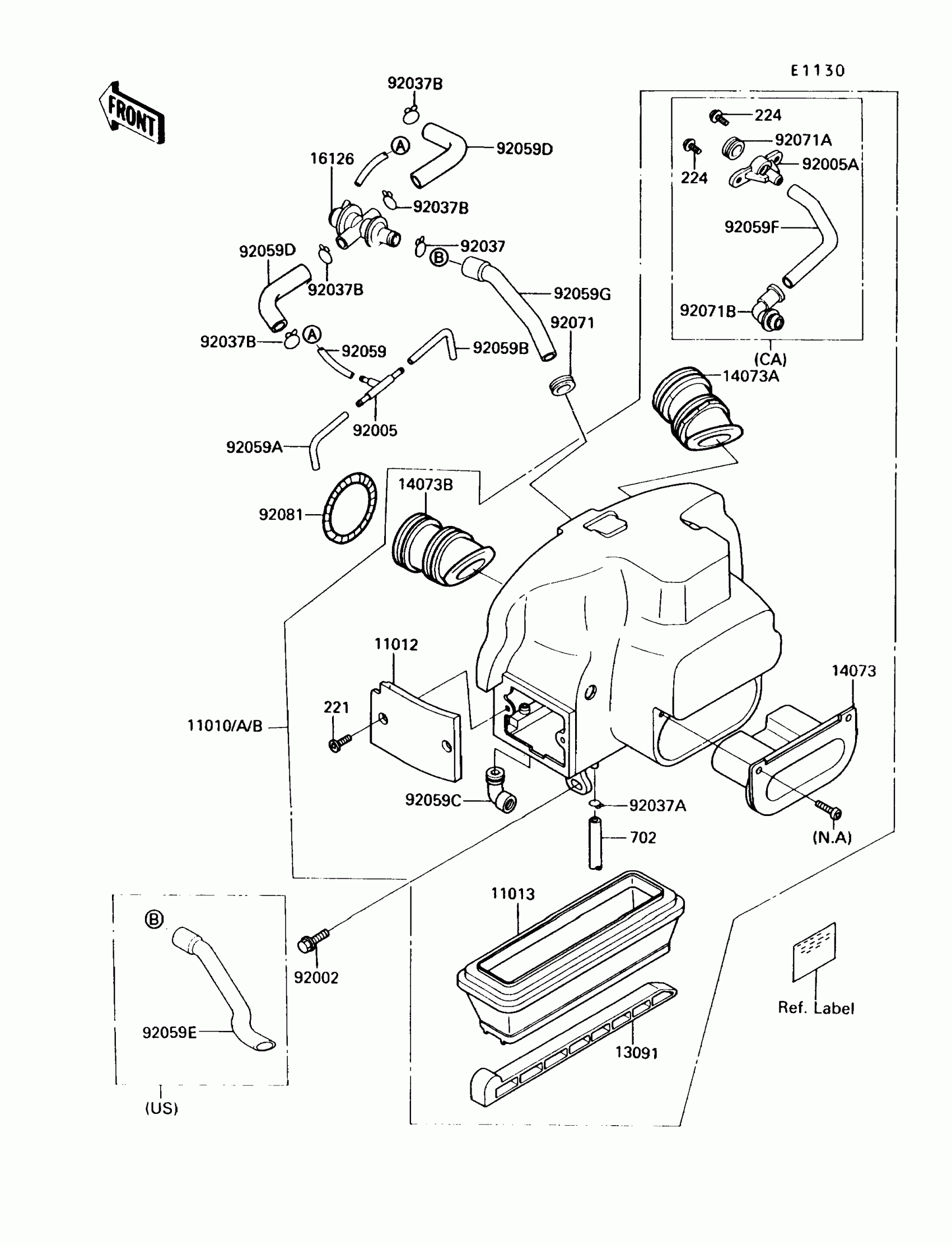

1991 Kawasaki Concours AIR Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-1254

1
Out of stock

11010A

FILTER-ASSY-AIR

11010-1299

1
Out of stock

11010B

FILTER-ASSY-AIR

11010-1300

1
Out of stock

11012

CAP,AIR FILTER

11012-1373

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1112

1
Out of stock

13091

HOLDER,ELEMENT

13091-1277

1

$35.72

In stock

14073

DUCT,AIR INTAKE

14073-1179

1

$20.20

In stock

14073A

DUCT,#1,#3

14073-1224

1

$26.20

In stock

14073B

DUCT,#2,#4

14073-1225

1

$26.20

In stock

16126

VALVE,AIR SWITCH

16126-1144

1
Out of stock

92002

BOLT,6X16

92001-1950

1
Out of stock

92005

FITTING,TUBE,T-TYPE

92005-1017

1
Out of stock

92005A

FITTING

92005-1139

1
Out of stock

92037

CLAMP,TUBE

92037-1076

1
Out of stock

92037A

CLAMP,TUBE

92037-1972

1
Out of stock

92037B

CLAMP,TUBE

92037-213

1
Out of stock

92059

TUBE,4X9X190

92059-1032

1
Out of stock

92059A

TUBE,4X9X230

92059-1068

1
Out of stock

92059B

TUBE,4X9X80

92059-1365

1
Out of stock

92059C

TUBE,BREATHER

92059-1391

1
Out of stock

92059D

TUBE

92059-1629

1
Out of stock

92059E

TUBE

92059-1630

1
Out of stock

92059F

TUBE

92059-1640

1
Out of stock

92059G

TUBE

92059-1648

1
Out of stock

92071

GROMMET,AIR FILTER

92071-1028

1
Out of stock

92071A

GROMMET,AIR FILTER

92071-1042

1
Out of stock

92071B

GROMMET,AIR FILTER

92071-1133

1
Out of stock

92081

SPRING,AIR FILTER DUCT

92081-1422

1
Out of stock

221

SCREW-CSK-CROS

221C0616

1
Out of stock

224

SCREW-PAN-WP-CROS

224C0614

1
Out of stock

702

TUBE-RUBBER

702A07480

1
Out of stock
