2009 Kawasaki Concours™ 14 Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2009 Kawasaki Concours™ 14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

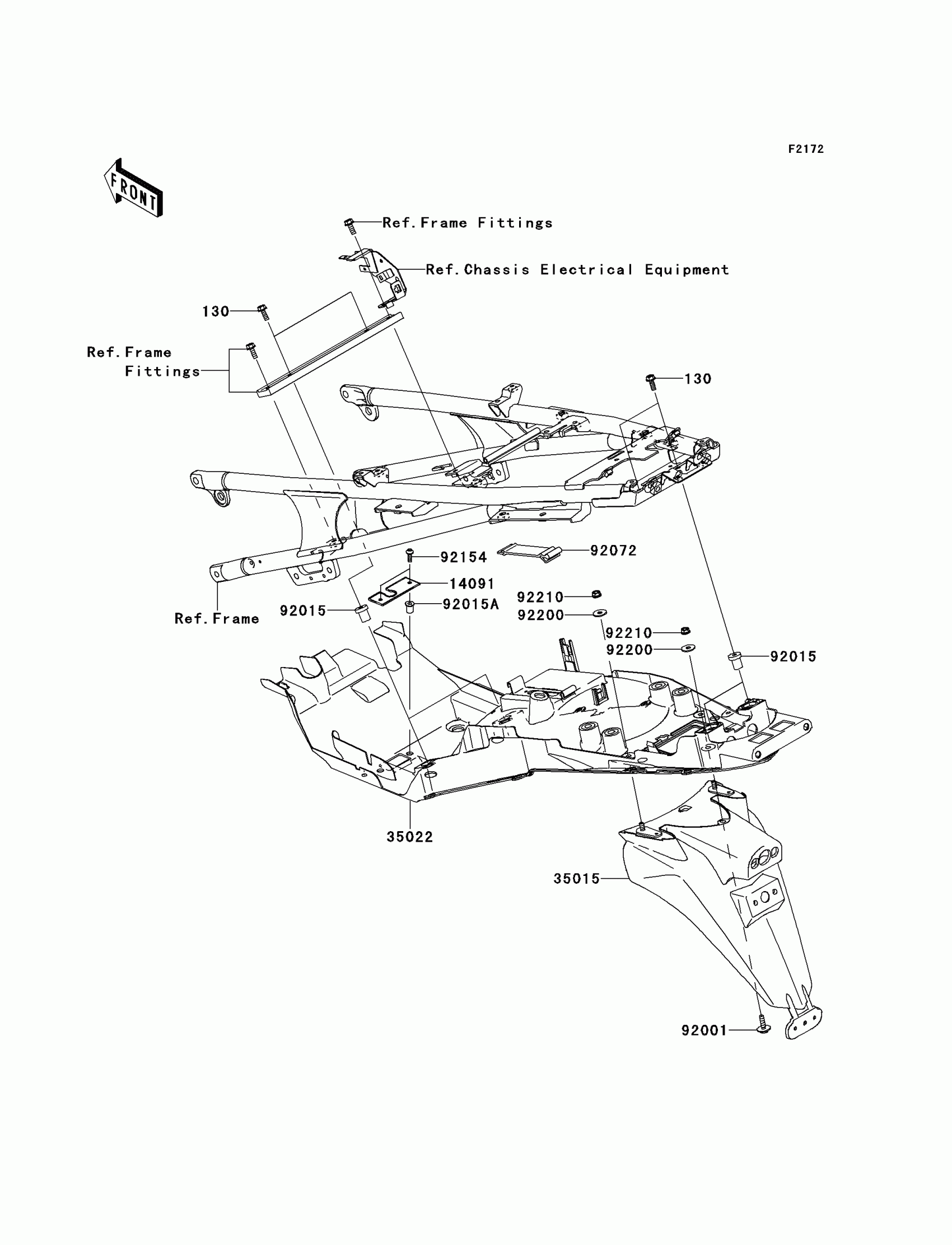

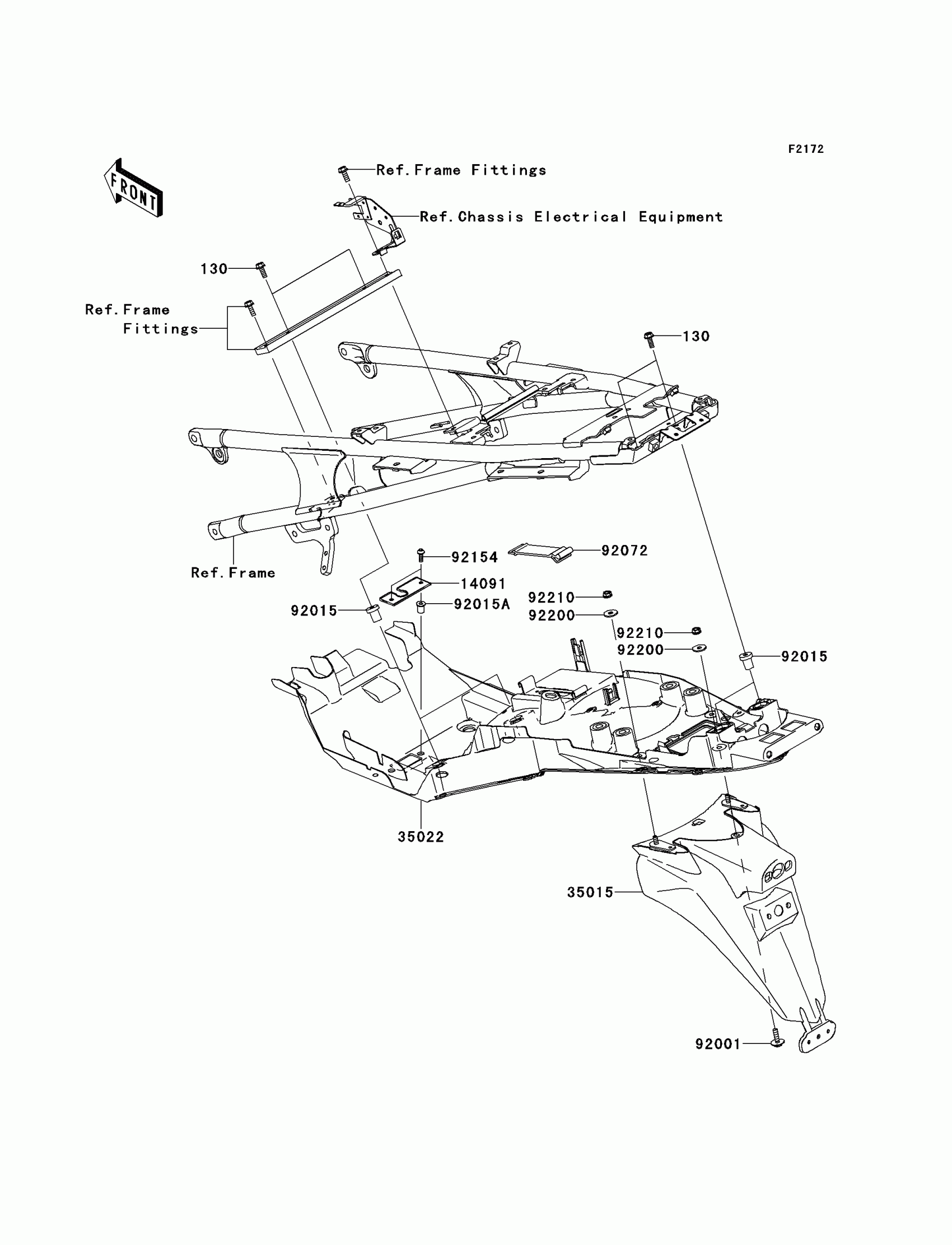

2009 Kawasaki Concours™ 14 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock

14091

COVER,REGULATOR HARNESS

14091-0813

1
Out of stock

35015

FLAP-COMP

35015-0015

1
Out of stock

35022

FENDER-COMP-REAR,FR

35022-0048

1
Out of stock

92001

BOLT,UPSET-WP,6X22

92001-1774

1
Out of stock

92015

NUT,RUBBER,6MM

92015-1692

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92072

BAND

92072-1044

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92200

WASHER,6.5X20X1.6

92200-0283

1
Out of stock

92210

NUT,LOCK,FLANGED,6MM

92210-0303

1
Out of stock
