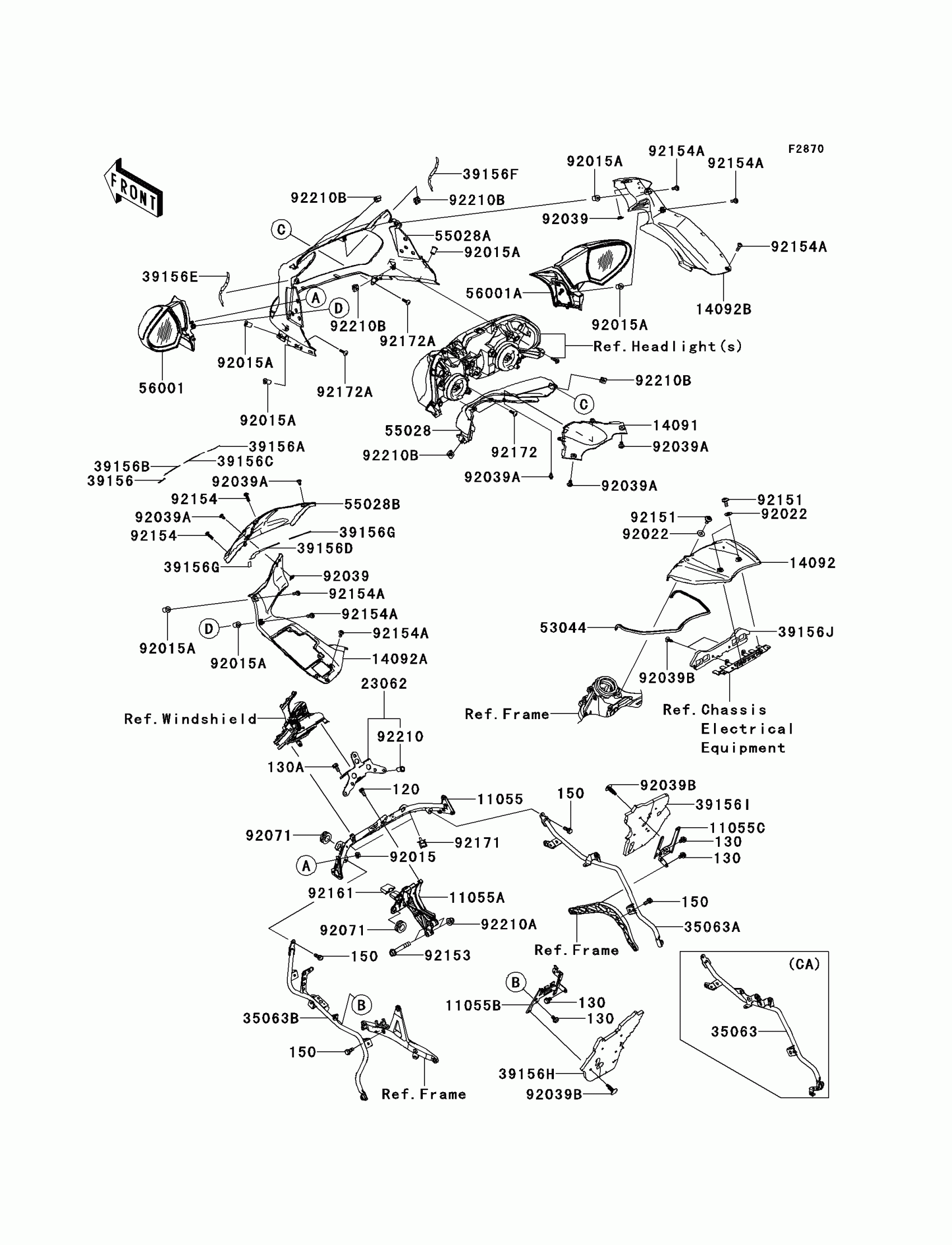

Kawasaki Concours™ 14 Cowling(Upper) Diagram

#

Description
Price

11054

BRACKET,COWLING

11054-0741

Unavailable

11055

BRACKET,MIRROR

11055-0143

$183.46

14091

COVER,SHROUD,CNT

14091-0859

$41.25

14091A

COVER,INNER,LH

14091-0906

$113.46

14091B

COVER,INNER,RH

14091-0907

$129.60

23062

BRACKET-COMP,METER

23062-0036

$190.10

35063

STAY,COWLING,LH

35063-0471

$281.46

35063A

STAY,COWLING,RH

35063-0472

$281.46

39156

PAD,INNER COWLING,LH

39156-0293

$9.31

39156A

PAD,INNER COWLING,RH

39156-0295

$9.31

39156B

PAD,UPP COWLING,CNT,LH

39156-0378

$5.95

39156C

PAD,UPP COWLING,CNT,RH

39156-0379

$5.95

39156D

PAD,UPP COWLING,CNT,LH

39156-0380

$7.39

39156E

PAD,UPP COWLING,CNT,RH

39156-0381

$7.39

39156F

PAD,UPP COWLING,CNT

39156-0382

$19.19

39156G

PAD,UPP COWLING,LH

39156-0384

$23.44

39156H

PAD,UPP COWLING,RH

39156-0385

$7.39

39156I

PAD,INNER COWLING

39156-0386

$2.32

39156J

PAD,INNER COWLING,LH

39156-0387

$31.36

39156K

PAD,INNER COWLING,RH

39156-0388

$31.36

39156L

PAD,UPP COWLING,CNT

39156-0398

$2.19

55028

COWLING,INTAKE

55028-0192

$64.56

55028A

COWLING,UPP,M.D.BLACK

55028-0198-17K

$509.72

55028C

COWLING,UPP,C.D.RED

55028-0198-25T

$509.72

55028D

COWLING,UPP,CNT

55028-0210

Unavailable

56001

MIRROR-ASSY,LH,M.D.BLACK

56001-0113-17K

$235.18

56001B

MIRROR-ASSY,LH,C.D.RED

56001-0113-25T

$236.78

56001C

MIRROR-ASSY,RH,M.D.BLACK

56001-0114-17K

Unavailable

56001E

MIRROR-ASSY,RH,C.D.RED

56001-0114-25T

$236.78

92009

SCREW,5X16

92009-1909

$1.47

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,WELL,5MM

92015-1757

$5.58

92039

RIVET

92039-0048

$4.24

92039A

RIVET

92039-0051

$3.54

92071

GROMMET

92071-1131

$5.93

120

BOLT-SOCKET,6X12

120CA0612

$1.27

130

BOLT-FLANGED,6X12

130BA0612

$1.25

150

BOLT-WS,6X22

150R0622

$4.15

156

BOLT-WP,6X18

156R0618

$2.84

156A

BOLT-WP,6X25

156R0625

$3.63

92153

BOLT,FLANGED,8X50

92153-1877

Unavailable

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92161

DAMPER,HEAD LAMP

92161-0412

$8.80

92161A

DAMPER,UPP COWLING,CNT,LH

92161-0565

$10.20

92161B

DAMPER,UPP COWLING,CNT,RH

92161-0566

$10.20

92171

CLAMP

92171-1665

$2.17

92172

SCREW,TAPPING,5X14

92172-0265

$1.04

92172A

SCREW,5X16

92172-0322

$1.57

92210

NUT,POP,6MM,L=16.5

92210-0324

$4.68

92210A

NUT,CAP,8MM

92210-0325

Unavailable

92210B

NUT,5MM

92210-0351

$4.27
