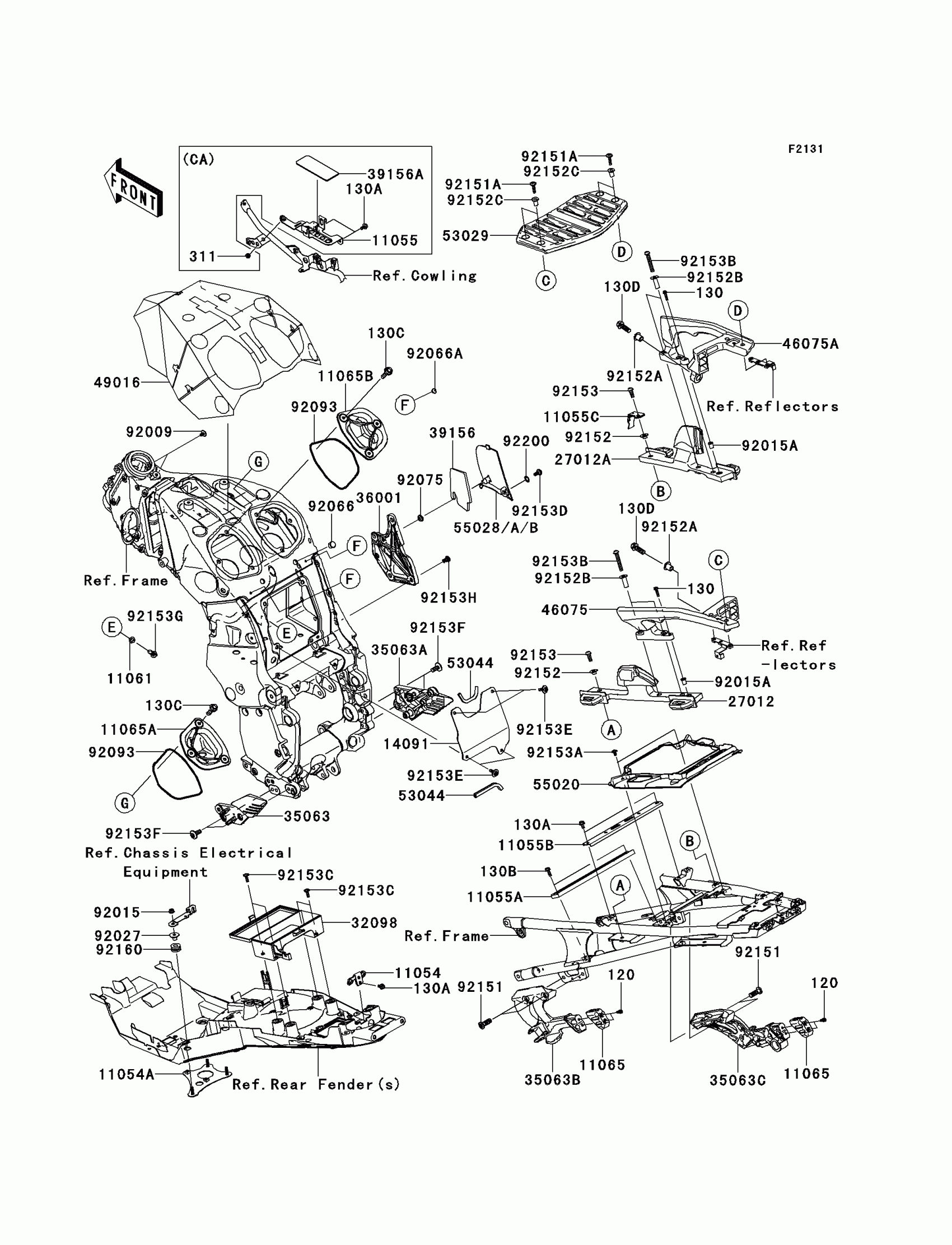

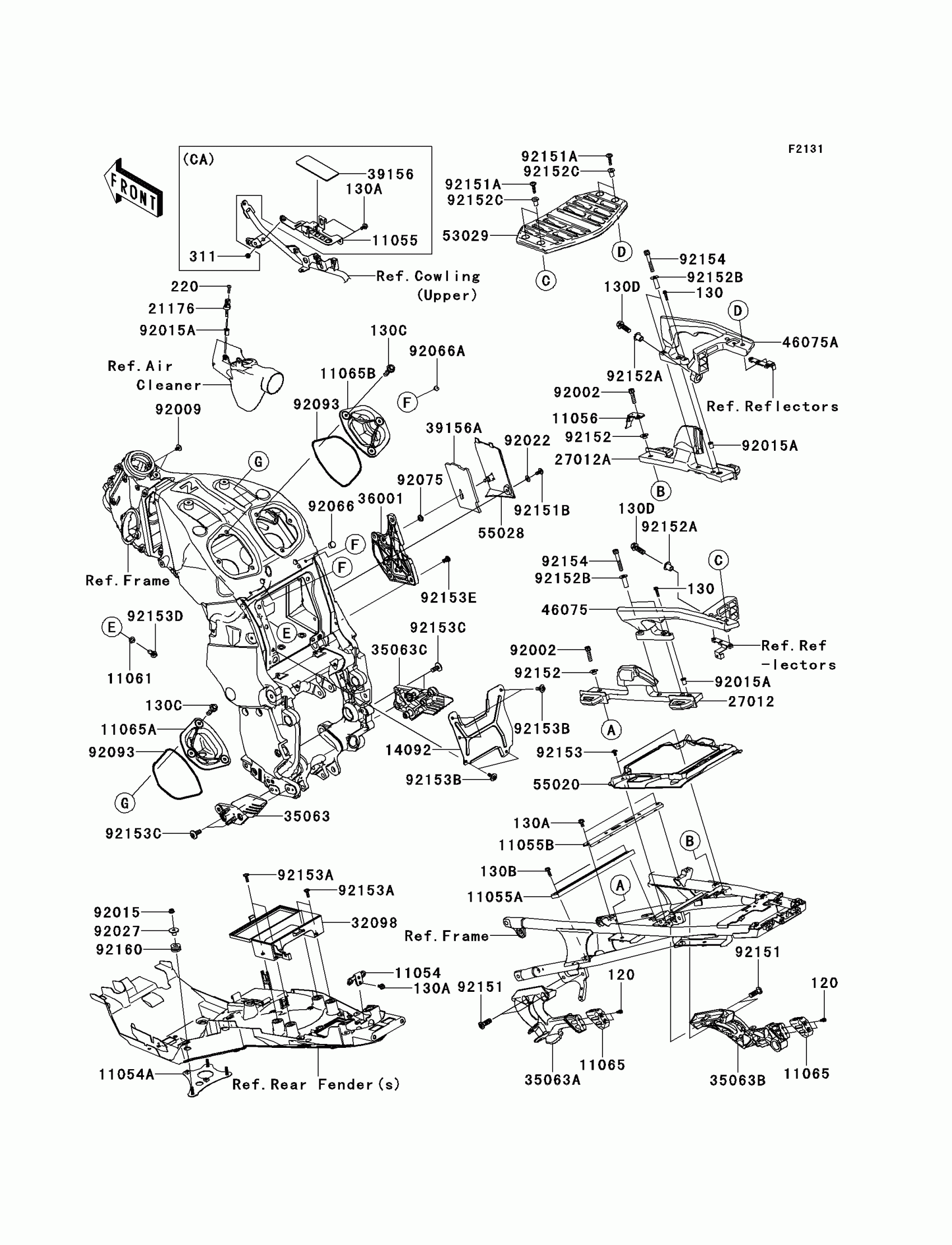

Kawasaki Concours™ 14 Frame Fittings Diagram

#

Description
Price

11054

BRACKET,DOWN SENSOR

11054-1194

$15.20

11054A

BRACKET,REGULATOR

11054-1197

$22.01

11055A

BRACKET,RR FENDER,CROSS

11055-0129

$27.22

11055B

BRACKET,FUEL TANK

11055-1890

$25.76

11056

BRACKET,SIGNAL LAMP RELAY

11056-0063

$14.13

11061

GASKET

11061-0107

$2.58

11065

CAP

11065-0166

$10.21

11065A

CAP,AIR CLEANER,LH

11065-0222

$48.58

11065B

CAP,AIR CLEANER,RH

11065-0223

$46.35

14092

COVER,BACK BATTERY

14092-0025

$45.05

21176

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

27012

HOOK,LH

27012-0123

Unavailable

27012A

HOOK,RH

27012-0124

Unavailable

32098

CASE-TOOL

32098-0016

$30.76

35063

STAY,FR,LH,P.SILVER

35063-0357-458

$118.41

35063A

STAY,RR,LH,F.BLACK

35063-0359-W9

$162.49

35063B

STAY,RR,RH,F.BLACK

35063-0360-W9

$164.62

35063C

STAY,FR,RH,P.SILVER

35063-0637-458

$135.96

36001

COVER-SIDE,BATTERY,RH,F.S.BLK

36001-0188-18R

$141.70

39156A

PAD,BATTERY COWLING

39156-0544

$8.01

46075

GRIP,TAIL,LH,P.SILVER

46075-0066-458

$175.26

46075A

GRIP,TAIL,RH,P.SILVER

46075-0067-458

$175.26

53029

CARRIER

53029-0076

Unavailable

55020

GUARD,TAIL COVER

55020-0410

$37.51

55028

COWLING,BATTERY,C.N.BLUE

55028-0326-27Z

Unavailable

92002

BOLT,SOCKET,8X30

92002-1844

Unavailable

92009

SCREW,6X10

92009-1661

$4.31

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,6.5X16X1

92022-1143

$3.92

92027

COLLAR,L=13.1

92027-251

Unavailable

92066

PLUG

92066-1081

$8.60

92066A

PLUG

92066-1547

$3.62

92075

DAMPER,6X16X7

92075-1011

$7.33

92093

SEAL

92093-1507

$4.78

92151

BOLT,SOCKET,10X30

92151-1372

$7.62

120

BOLT-SOCKET,5X12

120CA0512

$1.57

130

BOLT-FLANGED,5X25

130BA0525

$0.65

130B

BOLT-FLANGED,6X16

130BA0616

$1.20

130C

BOLT-FLANGED,6X22

130BA0622

$1.29

130D

BOLT-FLANGED,10X35

130BA1035

$3.26

220

SCREW-PAN-CROS,5X16

220AB0516

$1.74

92151A

BOLT,SOCKET,6X25

92151-1611

$2.34

92151B

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR

92152-0532

$4.65

92152A

COLLAR

92152-0534

$4.65

92152B

COLLAR

92152-0610

$6.75

92152C

COLLAR

92152-0627

$4.65

92153

BOLT,SOCKET,6X10

92153-0410

$2.80

92153A

BOLT,6X18

92153-0478

$2.55

92153B

BOLT,6X16

92153-1423

$1.34

92153C

BOLT,SOCKET,8X20

92153-1621

$2.15

92153D

BOLT,FLANGED,6X14

92153-1676

$2.15

92153E

BOLT,SOCKET,8X15

92153-1810

$3.90

92154

BOLT,SOCKET,8X50

92154-0344

$2.52

92160

DAMPER

92160-1162

$5.00

11055

BRACKET,CANISTER

11055-0112

$31.86

39156

PAD,CANISTER BRACKET

39156-0330

$4.61

130A

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X12

130BA0612

$1.72

311

NUT-HEX,6MM

311BA0600

$2.23
