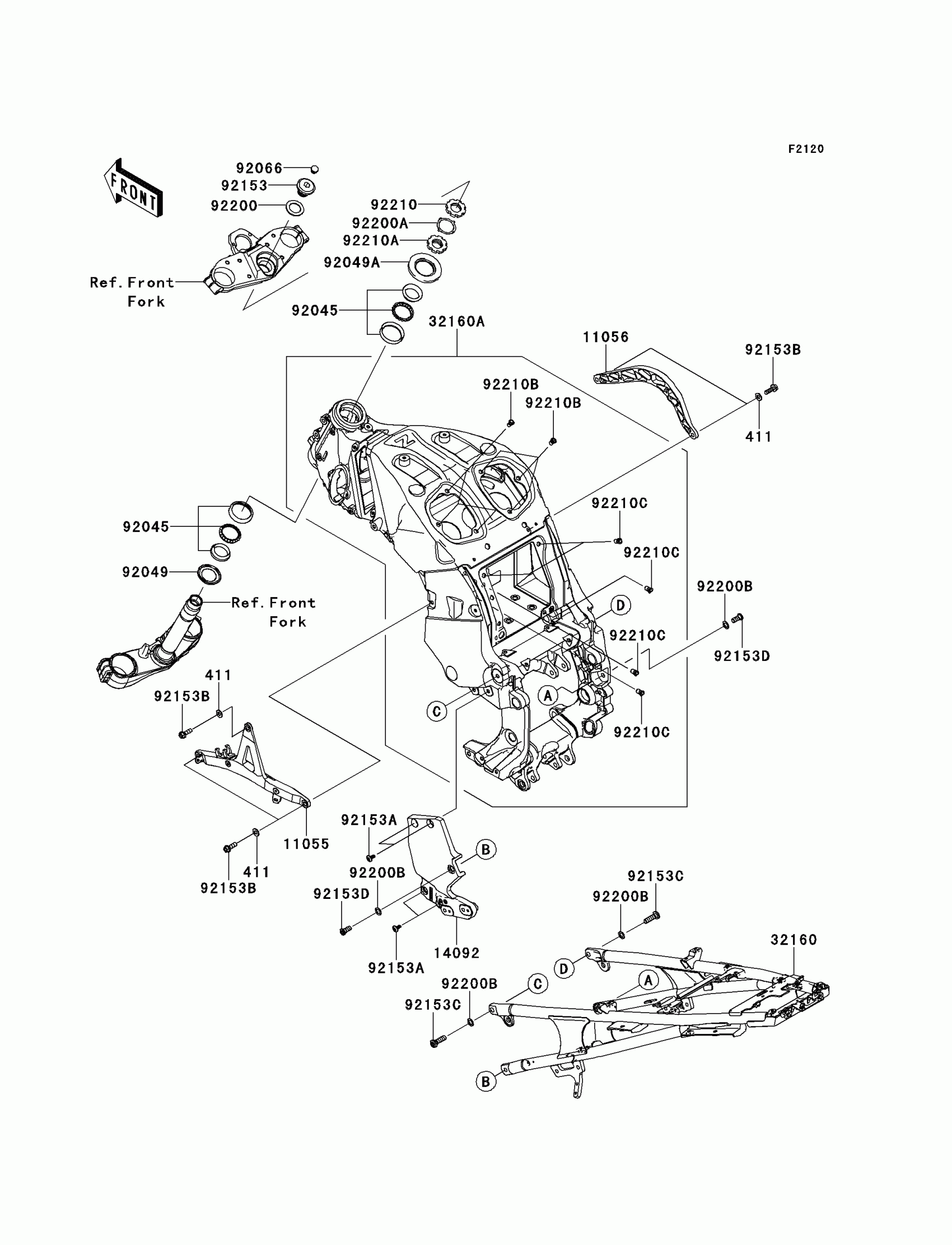

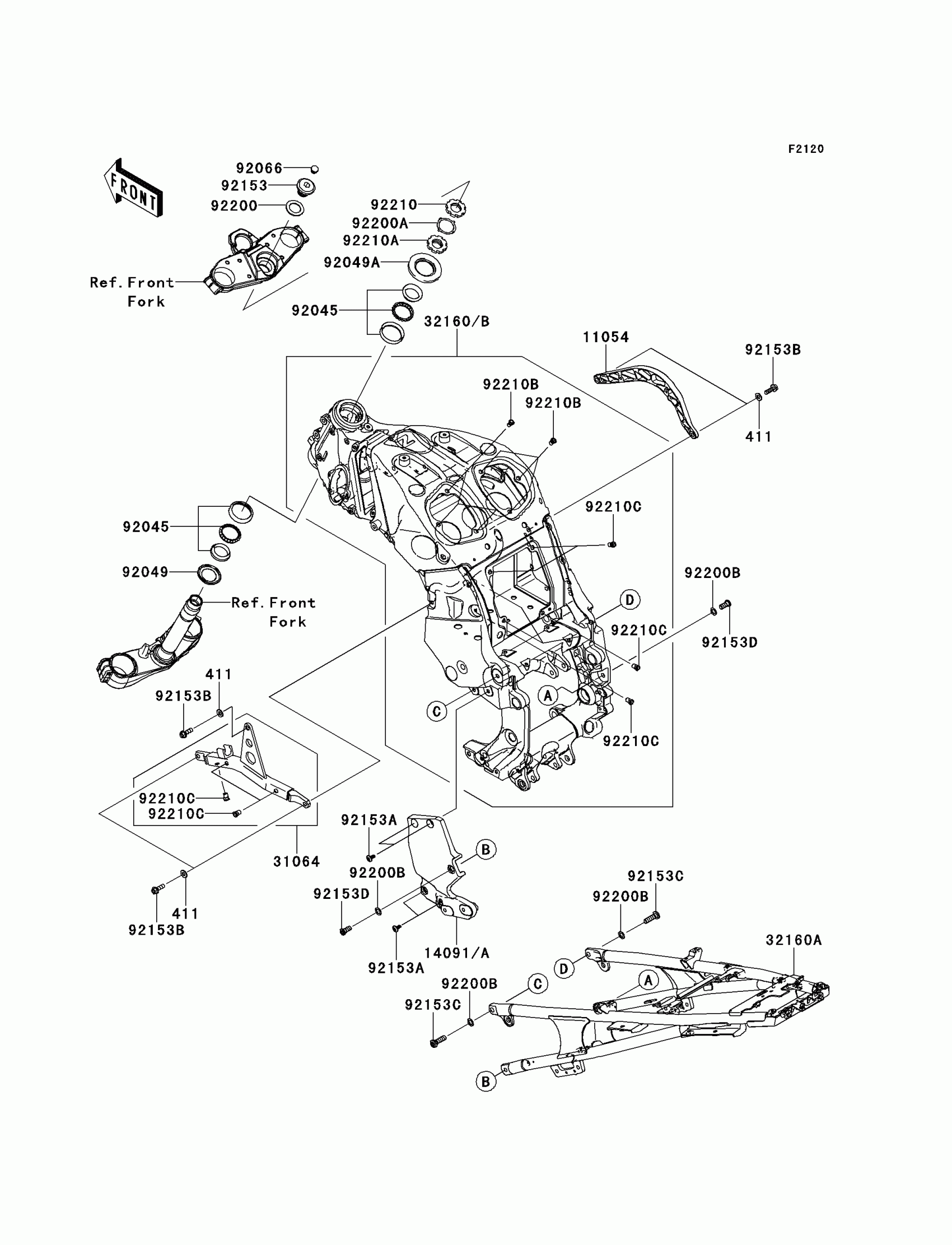

Kawasaki Concours™ 14 Frame Diagram

#

Description
Price

411

WASHER-PLAIN,8MM

411AA0800

Unavailable

11054

BRACKET,SUB FRAME,RH

11054-1183

$138.92

14091A

COVER,FRONT FRAME SHAFT,BLACK

14091-1709-18R

$216.56

31064

PIPE-COMP,SUB FRAME,LH

31064-0109

$196.59

32160A

FRAME-COMP,RR,BLACK

32160-0294-18R

$1,143.18

32160B

FRAME-COMP,FR,BLACK

32160-0314-18R

Unavailable

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$40.52

92049

SEAL-OIL,DS35X55X4

92049-0022

$13.12

92049A

SEAL-OIL,MX043N3

92049-0091

$20.03

92066

PLUG

92066-0071

$2.31

92153

BOLT,26MM

92153-0474

$29.32

92153A

BOLT,SOCKET,8X20

92153-1621

$1.57

92153B

BOLT,FLANGED,8X25

92153-1768

$3.51

92153C

BOLT,SOCKET,10X35

92153-1904

$4.95

92153D

BOLT,SOCKET,10X22

92153-1905

$4.34

92200

WASHER,27X42X2.3

92200-0081

$2.84

92200A

WASHER

92200-0281

$2.98

92200B

WASHER,11X18X1

92200-0324

$7.92

92210

NUT,35MM

92210-0095

$13.77

92210A

NUT,35MM

92210-0096

$18.51

92210B

NUT,POP,6MM,L=16.5

92210-0324

$4.68

92210C

NUT,POP,6MM,L=15

92210-1397

$4.81
