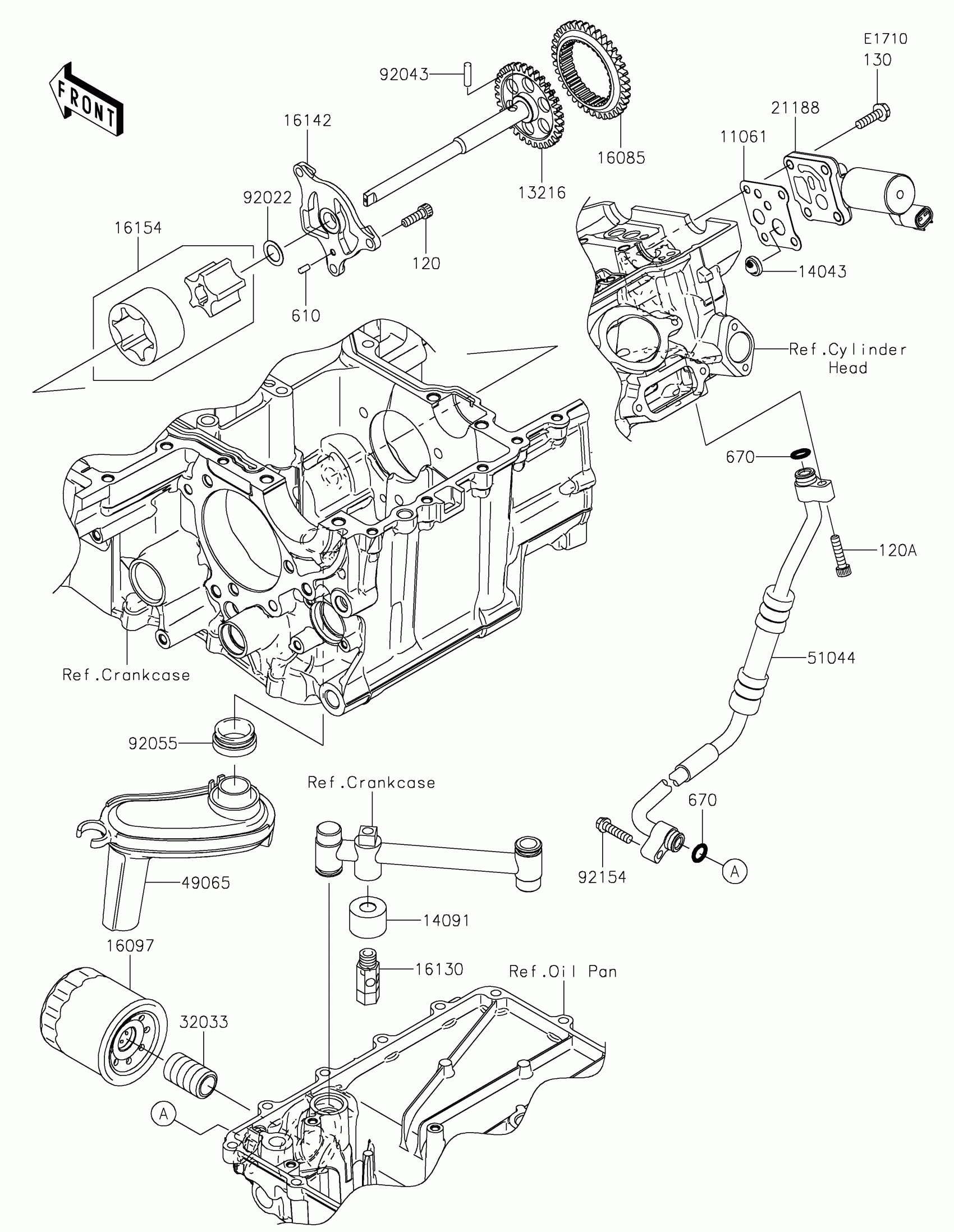

Kawasaki Concours 14 ABS Oil Pump/Oil Filter Diagram

Description

Price

120

BOLT-SOCKET,6X20

120CA0620

$1.28

120A

BOLT-SOCKET,6X25

120CA0625

Unavailable

130

BOLT-FLANGED,6X22

130BA0622

$1.01

610

ROLLER,4X8

610A0408

$3.29

670

O RING,11MM

670D2011

$1.05

11061

GASKET,SOLENOID

11061-3748

$7.75

13216

GEAR-COMP,OIL PUMP

13216-0024

$132.81

14043

FILTER,ELEMENT

14043-0009

$10.46

14091

COVER,VALVE

14091-0497

$4.92

16085

GEAR

16085-0103

$80.44

16097

FILTER-ASSY-OIL

16097-0004

Unavailable

16130

VALVE-ASSY-RELIEF

16130-1059

$37.32

16142

COVER-PUMP

16142-0027

$56.86

16154

ROTOR-PUMP

16154-0047

$28.61

21188

SOLENOID,VVT

21188-0006

$284.11

32033

PIPE,OIL FILTER

32033-1535

$9.85

49065

FILTER-OIL

49065-0014

$22.41

51044

TUBE-ASSY,EG OIL

51044-0049

$183.58

92022

WASHER,13.2X20X0.5

92022-1224

$3.29

92043

PIN,17.9X5.0

92043-1444

$3.85

92055

RING-O,OIL FILTER

92055-1503

$7.25

92153

BOLT,FLANGED,6X25

92153-1795

$1.81
