2009 Kawasaki Concours 14 ABS Crankshaft/piston Diagram

← All diagrams

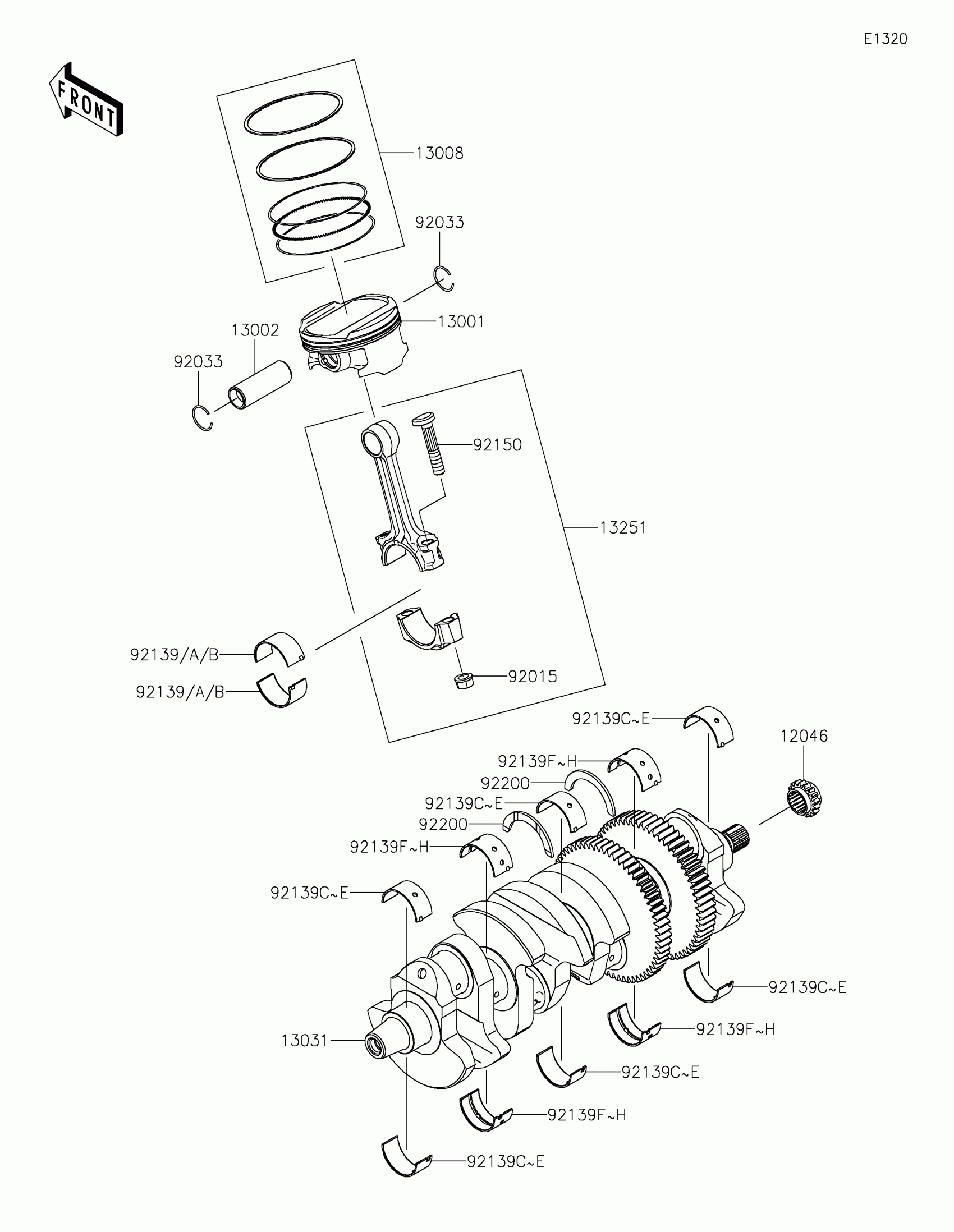

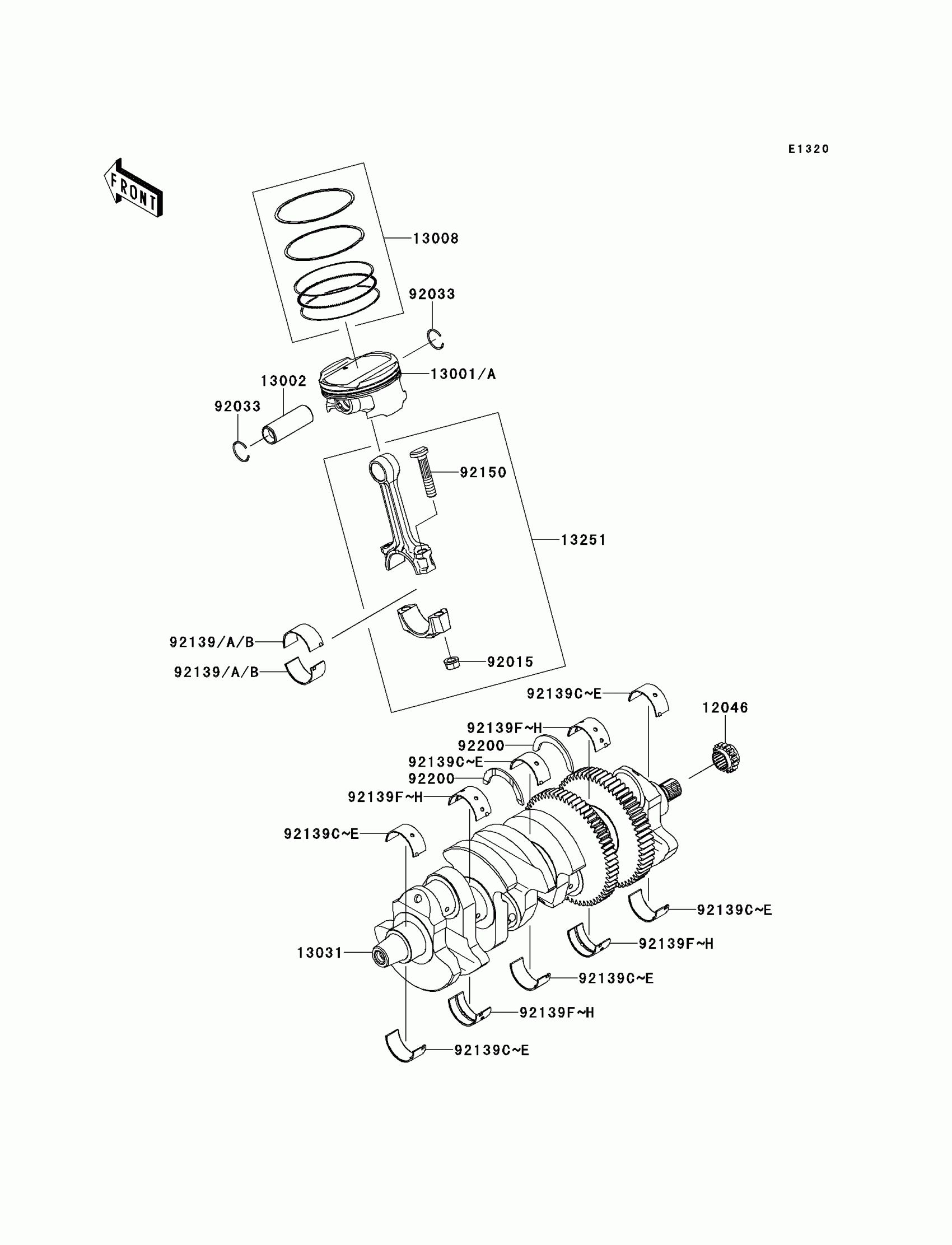

Find the part on the Crankshaft/piston diagram for your 2009 Kawasaki Concours 14 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki Concours 14 ABS Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,17T

12046-0052

1
Out of stock

13001A

PISTON-ENGINE

13001-0109

1
Out of stock

13002

PIN-PISTON

13002-0010

1
Out of stock

13008

RING-SET-PISTON

13008-0027

1
Out of stock

13031

CRANKSHAFT-COMP

13031-0094

1
Out of stock

13251

ROD-ASSY-CONNECTING,JJ

13251-0025-JJ

—
Out of stock

92015

NUT,CONNECTING ROD

92015-1559

1
Out of stock

92033

RING-SNAP

92033-1207

1
Out of stock

92139

BUSHING,CON-ROD,BLUE

92139-0129

1
Out of stock

92139A

BUSHING,CON-ROD,BLACK

92139-0130

—
Out of stock

92139B

BUSHING,CON-ROD,BROWN

92139-0131

—
Out of stock

92139C

BUSHING,CRANK #1,BLUE

92139-0132

1
Out of stock

92139D

BUSHING,CRANK #1,BLACK

92139-0133

—
Out of stock

92139E

BUSHING,CRANK #1,BROWN

92139-0134

—
Out of stock

92139F

BUSHING,CRANK #2,BLUE

92139-0135

1
Out of stock

92139G

BUSHING,CRANK #2,BLACK

92139-0136

—
Out of stock

92139H

BUSHING,CRANK #2,BROWN

92139-0137

—
Out of stock

92150

BOLT,CONNECTING ROD,9MM

92150-1362

1
Out of stock

92200

WASHER,T=2.5

92200-0331

1
Out of stock
