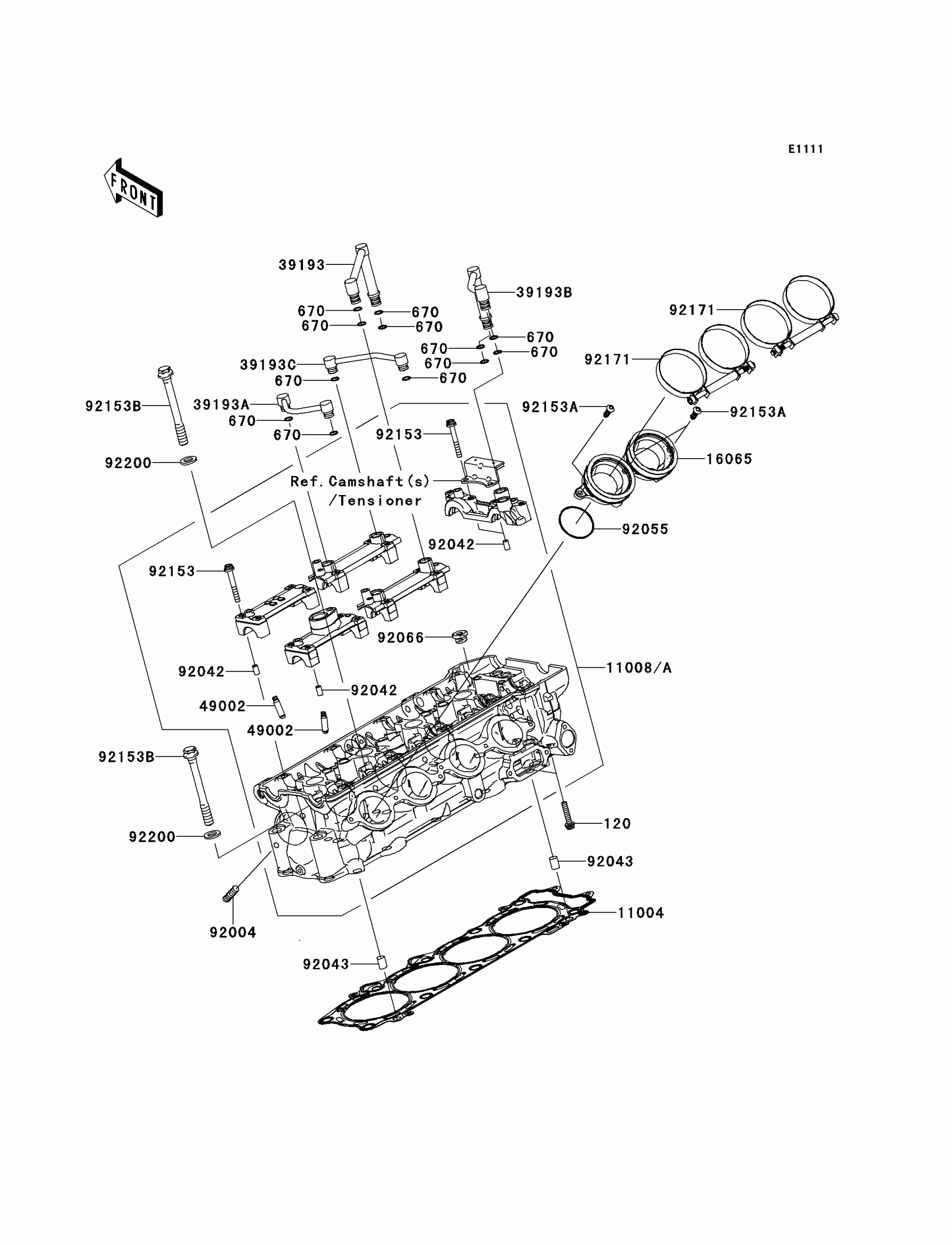

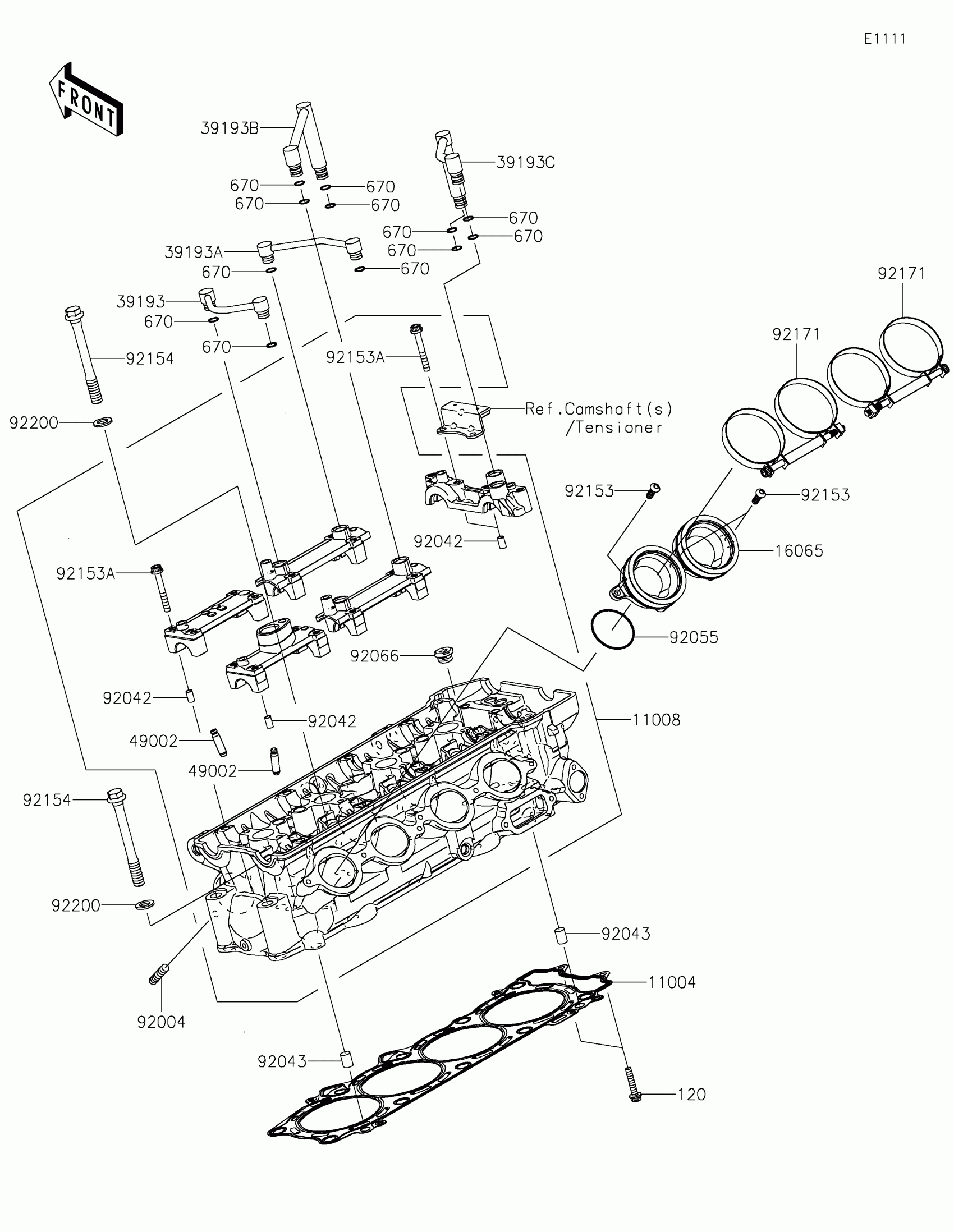

Kawasaki Concours 14 ABS Cylinder Head Diagram

Description

Price

120

BOLT-SOCKET,6X30

120CD0630

$4.24

670

O RING,9MM

670D1509

$3.57

11004

GASKET-HEAD

11004-0059

$113.20

11008A

HEAD-COMP-CYLINDER

11008-0166

$3,269.57

16065

HOLDER-CARBURETOR

16065-0040

$62.88

39193

PIPE-OIL

39193-0039

$101.07

39193A

PIPE-OIL

39193-0040

$48.53

39193B

PIPE-OIL

39193-0041

$101.07

39193C

PIPE-OIL

39193-0042

$48.53

49002

GUIDE-VALVE

49002-0014

Unavailable

92004

STUD,8X22

92004-0025

$2.95

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043

PIN,8.2X10X14

92043-1264

$0.51

92055

RING-O,47X1.9

92055-1600

$7.00

92066

PLUG,18X10

92066-0016

$12.31

92153

BOLT,SOCKET,6X45

92153-0656

$1.81

92153A

BOLT,TORX,6X18

92153-1629

$3.59

92153B

BOLT,FLANGED-SMALL,11X98

92153-1674

$13.67

92171

CLAMP

92171-1892

$30.73

92200

WASHER,11.5X21X2.3

92200-0341

$3.74
