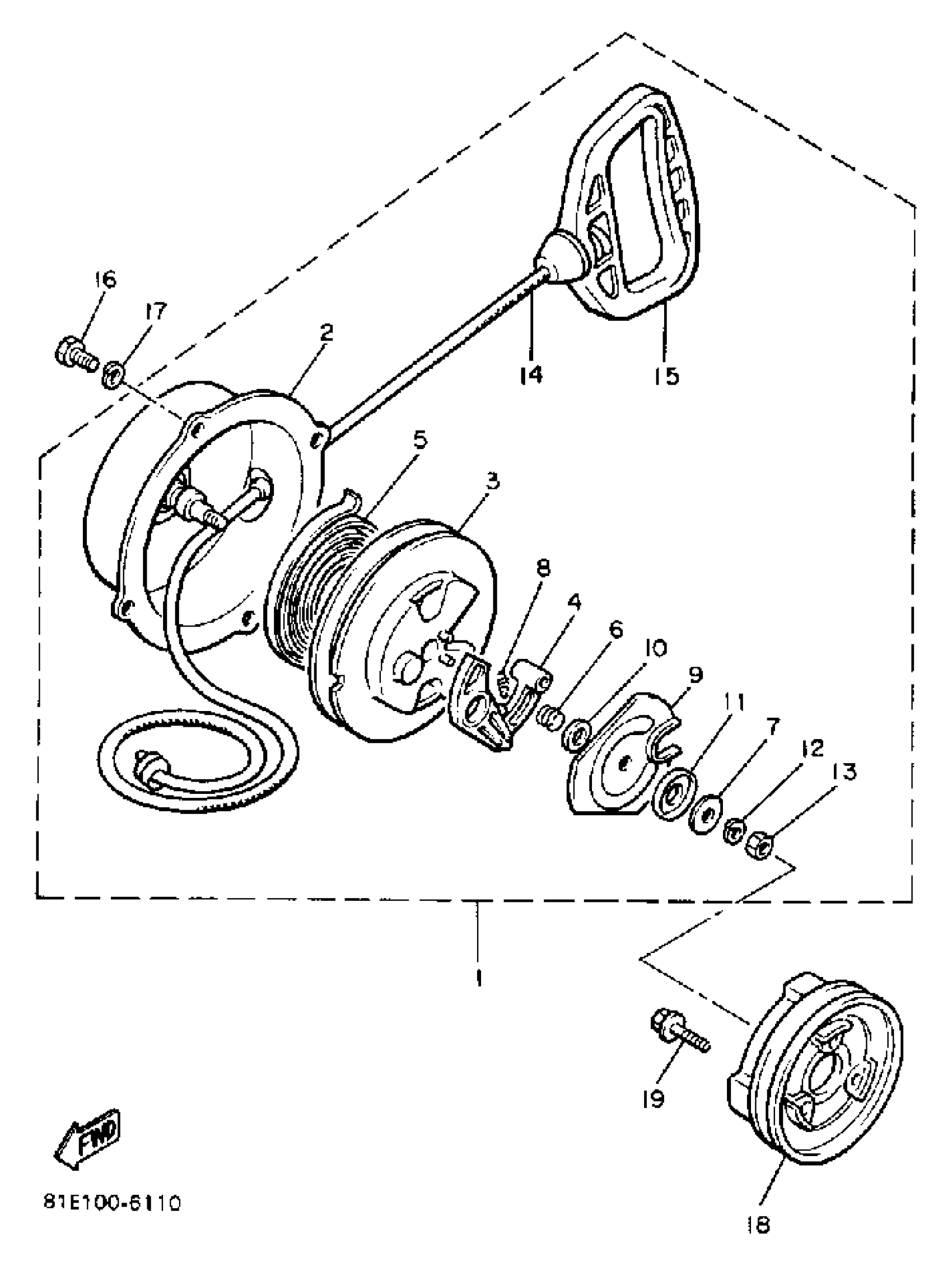

Yamaha CF300M (INVITER) 1988 STARTER Diagram

#

Description
Price

1

STARTER ASSY

8V0-15710-00-00

Unavailable

2

. CASE, STARTER

8V0-15711-00-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$44.94

4

PAWL, DRIVE

8F3-15741-01-00

$20.73

5

SPRING, STARTER

8F3-15713-01-00

$39.64

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.02

7

WASHER, THRUST

8F3-15739-01-00

$10.86

8

SPRING, RETURN

8F3-15734-00-00

$5.05

9

WASHER, THRUST

8G5-15739-00-00

$6.83

10

COLLOR

82M-15779-00-00

$6.77

11

PLATE, DRIVE

8F3-15716-03-00

$22.65

12

WASHER, SPRING

92995-06100-00

$2.95

13

NUT(650)

95380-06700-00

$5.75

14

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$26.39

15

HANDLE, STARTER

8F3-15755-00-00

$21.46

16

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.57

17

WASHER, SPRING

92995-06100-00

$2.95

18

PULLEY, STARTER

8V0-15723-00-00

Unavailable

19

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable
