1988 Yamaha Inviter (CF300M) Instrument Panel Diagram

← All diagrams

Find the part on the Instrument Panel diagram for your 1988 Yamaha Inviter (CF300M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

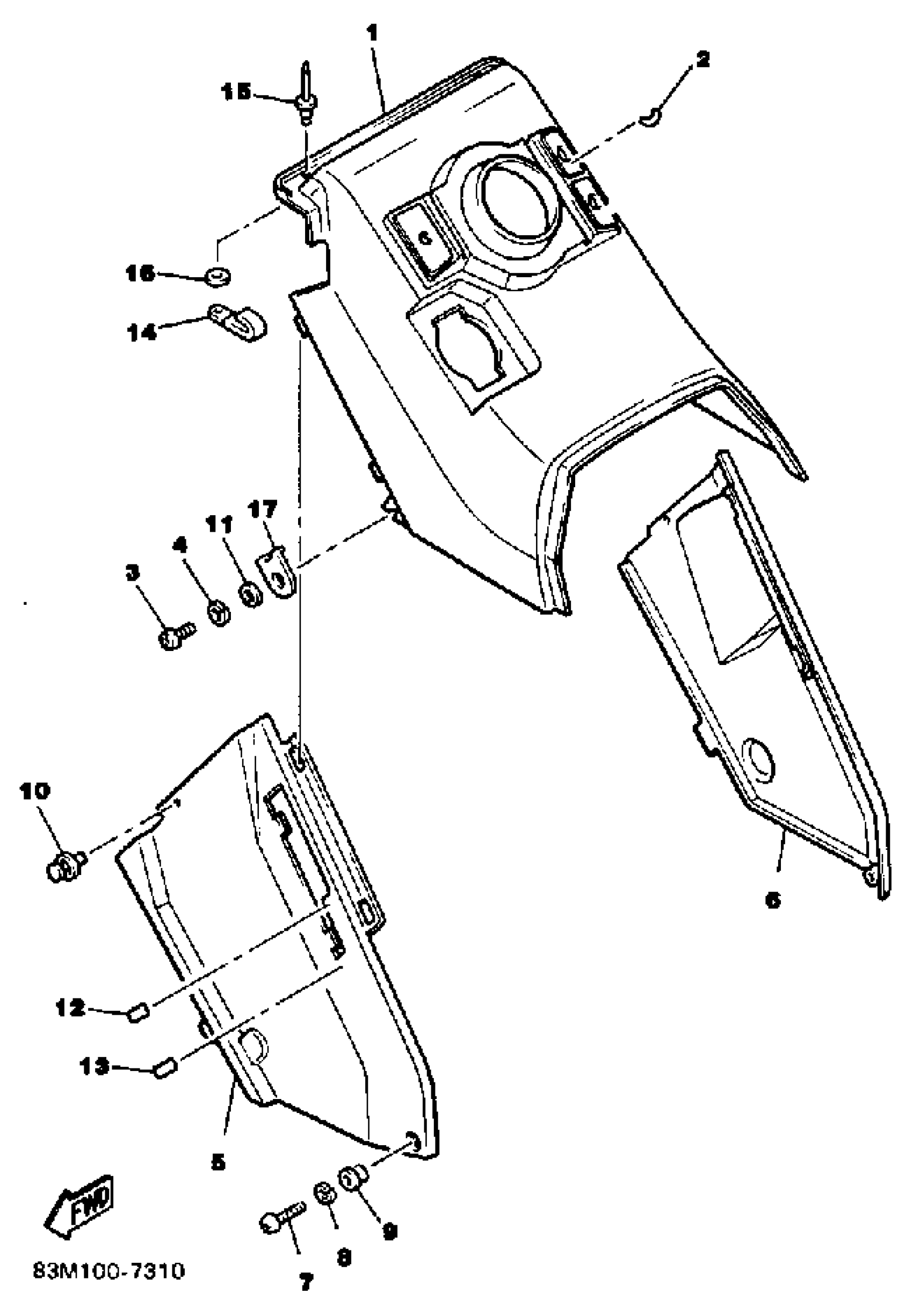

1988 Yamaha Inviter (CF300M) Instrument Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, INSTRUMENT

83U-77711-00-00

1
Out of stock

2

INDICATOR 2

8U9-77742-00-00

—

$13.05

In stock

3

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

4

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

5

COVER 1

83U-2198F-00-00

1
Out of stock

6

COVER 2

83U-2198G-00-00

1
Out of stock

7

SCREW, PAN HEAD(3TJ)

98507-06016-00

1

$2.43

In stock

8

WASHER, SPRING

92907-06100-00

1
Out of stock

9

COLLAR

90387-06107-00

1

$7.05

In stock

10

RIVET

90269-07052-00

1
Out of stock

11

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

12

INDICATOR 2

8G8-77742-00-00

1
Out of stock

13

INDICATOR 3

8A1-77743-00-00

1
Out of stock

14

CLAMP

90462-10236-00

1

$8.97

In stock

15

RIVET (856)

90267-48014-00

1
Out of stock

16

WASHER, PLATE

90201-04027-00

—
Out of stock

17

WASHER

81E-77728-00-00

1
Out of stock
