1990 Yamaha BIG Wheel (BW80A) Front Fork Diagram

← All diagrams

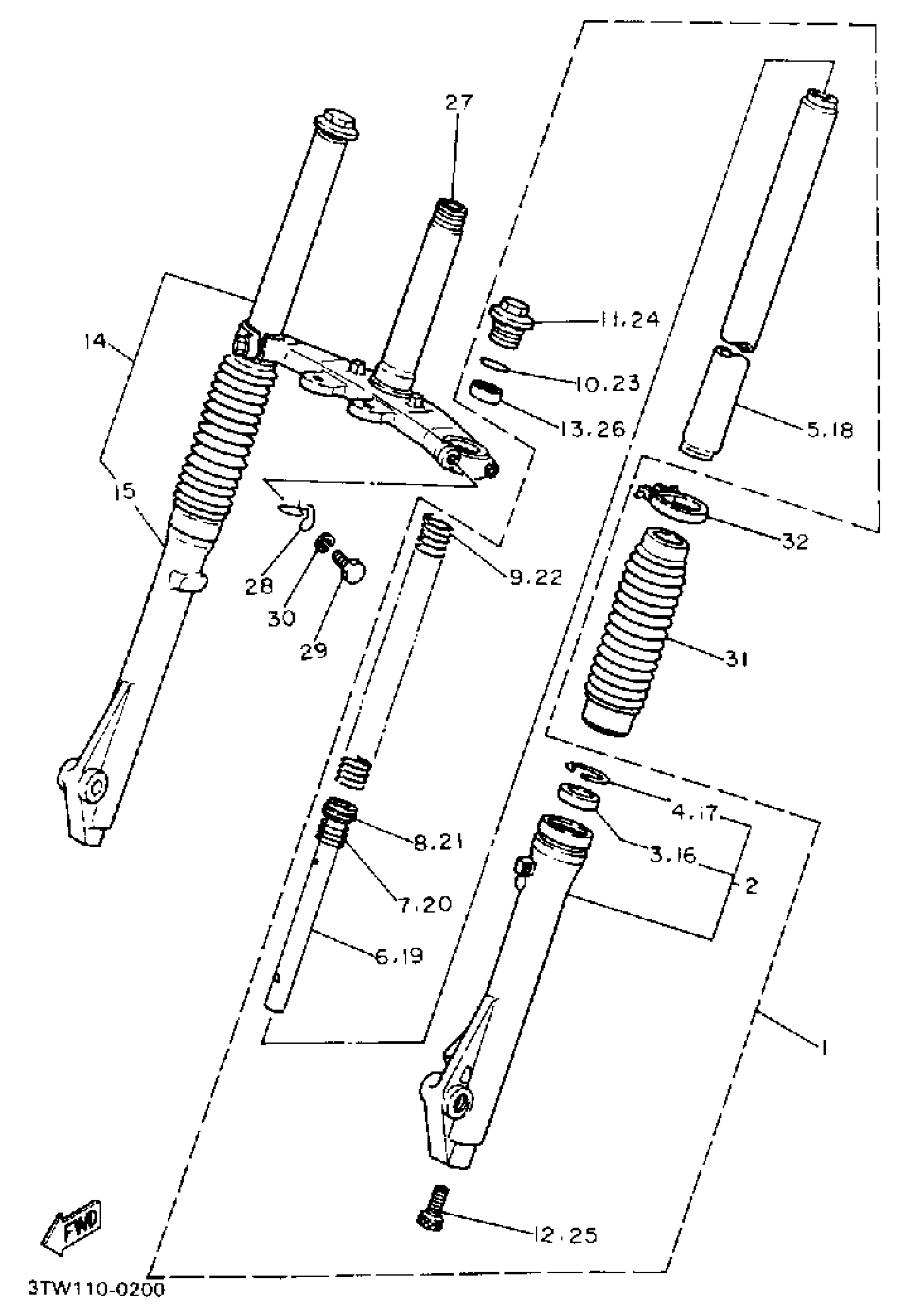

Find the part on the Front Fork diagram for your 1990 Yamaha BIG Wheel (BW80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha BIG Wheel (BW80A) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY LH (L.H.)

1RY-23102-00-NJ

1
Out of stock

2

OUTER TUBE COMP.LH (L.H.)

1RY-23106-00-NJ

1
Out of stock

3

OIL SEAL

1RY-23145-00-00

1
Out of stock

4

CLIP, OIL SEAL

3M7-23156-00-00

1
Out of stock

5

. INNER TUBE 1

1RY-23110-00-00

1
Out of stock

6

. CYLINDERCOMPFRFORK

1RY-23170-00-00

1
Out of stock

7

SPRING, REBOUND

2J5-23151-00-00

1
Out of stock

8

RING, PISTON

2J5-23157-00-00

1
Out of stock

9

. SPRING, FRONT FORK

1RY-23141-00-00

1
Out of stock

10

O-RING(36Y)

93210-17570-00

1

$5.86

In stock

11

BOLT, CAP

3M7-23111-01-00

1
Out of stock

12

BOLT

3M7-23181-00-00

1

$7.75

In stock

13

BOLT, INNER TUBE

3M7-23142-00-00

1
Out of stock

14

FR.FORK ASSEMBLY.RH (R.H.)

1RY-23103-00-NJ

1
Out of stock

15

. OUTER TUBE COMPRH (RH)

1RY-23107-00-NJ

1
Out of stock

16

OIL SEAL

1RY-23145-00-00

1
Out of stock

17

CLIP, OIL SEAL

3M7-23156-00-00

1
Out of stock

18

. INNER TUBE 1

1RY-23110-00-00

1
Out of stock

19

. CYLINDERCOMPFRFORK

1RY-23170-00-00

1
Out of stock

20

SPRING, REBOUND

2J5-23151-00-00

1
Out of stock

21

RING, PISTON

2J5-23157-00-00

1
Out of stock

22

. SPRING, FRONT FORK

1RY-23141-00-00

1
Out of stock

23

O-RING(36Y)

93210-17570-00

1

$5.86

In stock

24

BOLT, CAP

3M7-23111-01-00

1
Out of stock

25

BOLT

3M7-23181-00-00

1

$7.75

In stock

26

BOLT, INNER TUBE

3M7-23142-00-00

1
Out of stock

27

UNDER BRACKET

1RY-23340-00-00

1
Out of stock

28

HOLDER, CABLE 1

(1RY-23318-00-00)

1
Out of stock

29

BOLT

451-23346-01-00

—

$10.43

In stock

30

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

31

BOOT

1RY-23191-10-00

1
Out of stock

32

BAND

(1RY-23192-00-00)

1
Out of stock
