1990 Yamaha BIG Wheel (BW80A) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1990 Yamaha BIG Wheel (BW80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

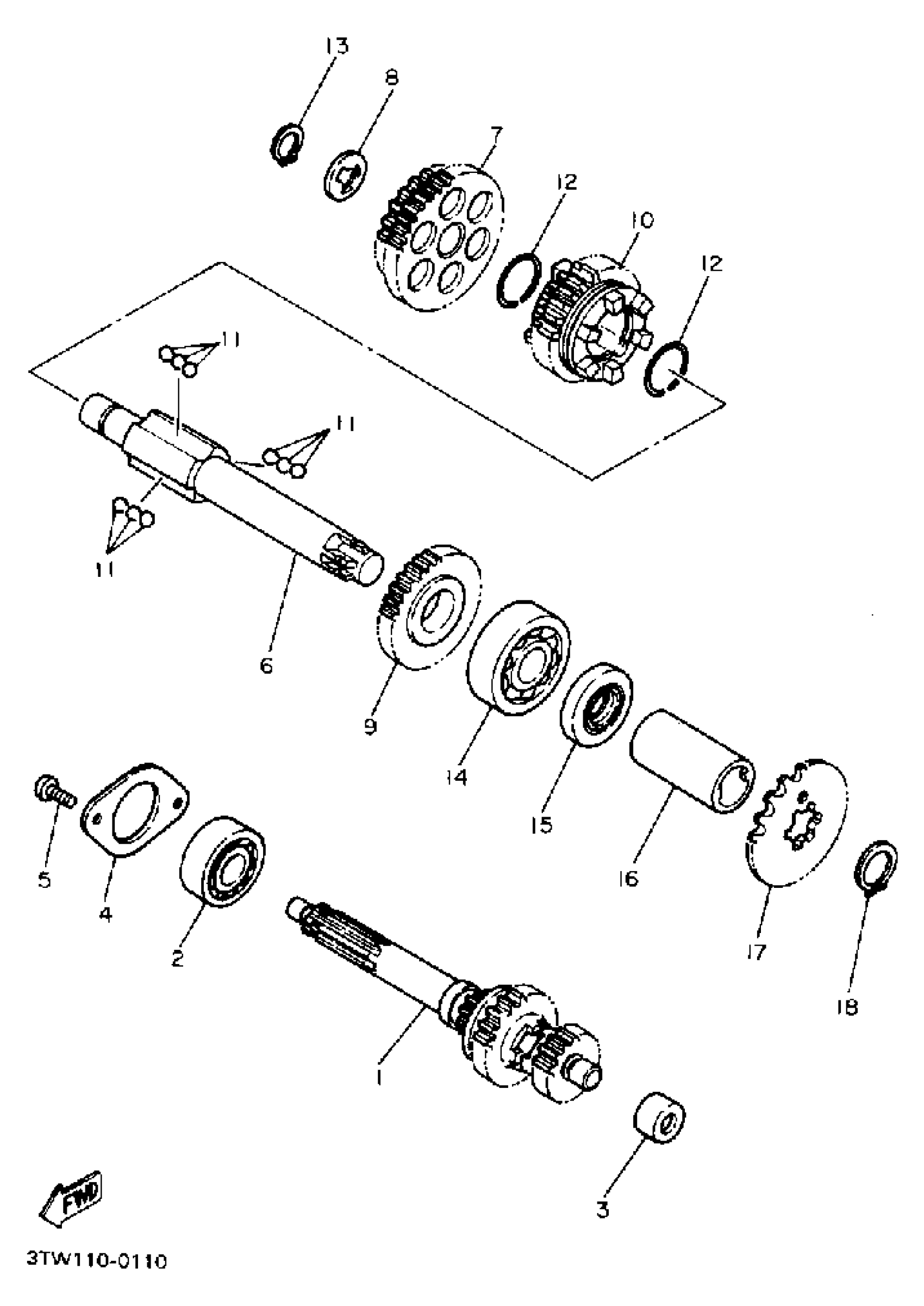

1990 Yamaha BIG Wheel (BW80A) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MAIN AXLE

1RY-17410-00-00

1
Out of stock

2

1

$31.64

In stock

3

BRG,CYL-CAL ROLLER 10G NT

93320-41202-00

1
Out of stock

4

PLATE, BEARING COVER

296-17471-00-00

1
Out of stock

5

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

6

AXLE, DRIVE

1RY-17421-00-00

1
Out of stock

7

GEAR, 1ST WHEEL

1W7-17211-12-00

—
Out of stock

8

WASHER (1M9)

90209-15178-00

—
Out of stock

8

WASHER (1M9)

90209-15179-00

1
Out of stock

8

WASHER (1M9)

90209-15180-00

—
Out of stock

9

GEAR, 2ND WHEEL

1RY-17221-00-00

1
Out of stock

10

GEAR, 3RD WHEEL

1RY-17231-00-00

1
Out of stock

11

BALL

93509-32012-00

—
Out of stock

12

CIRCLIP (1W7)

93450-28049-00

1
Out of stock

13

CIRCLIP

93440-15012-00

1
Out of stock

14

BEARING(1YW)

93306-20461-00

—

$33.41

In stock

15

OIL SEAL (20X38X5-517)

93102-20143-00

—
Out of stock

16

COLLAR 1

1RY-17158-00-00

1
Out of stock

17

SPROCKET,DRIVE 15T(5171746152)

93812-15063-00

—
Out of stock

18

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock
