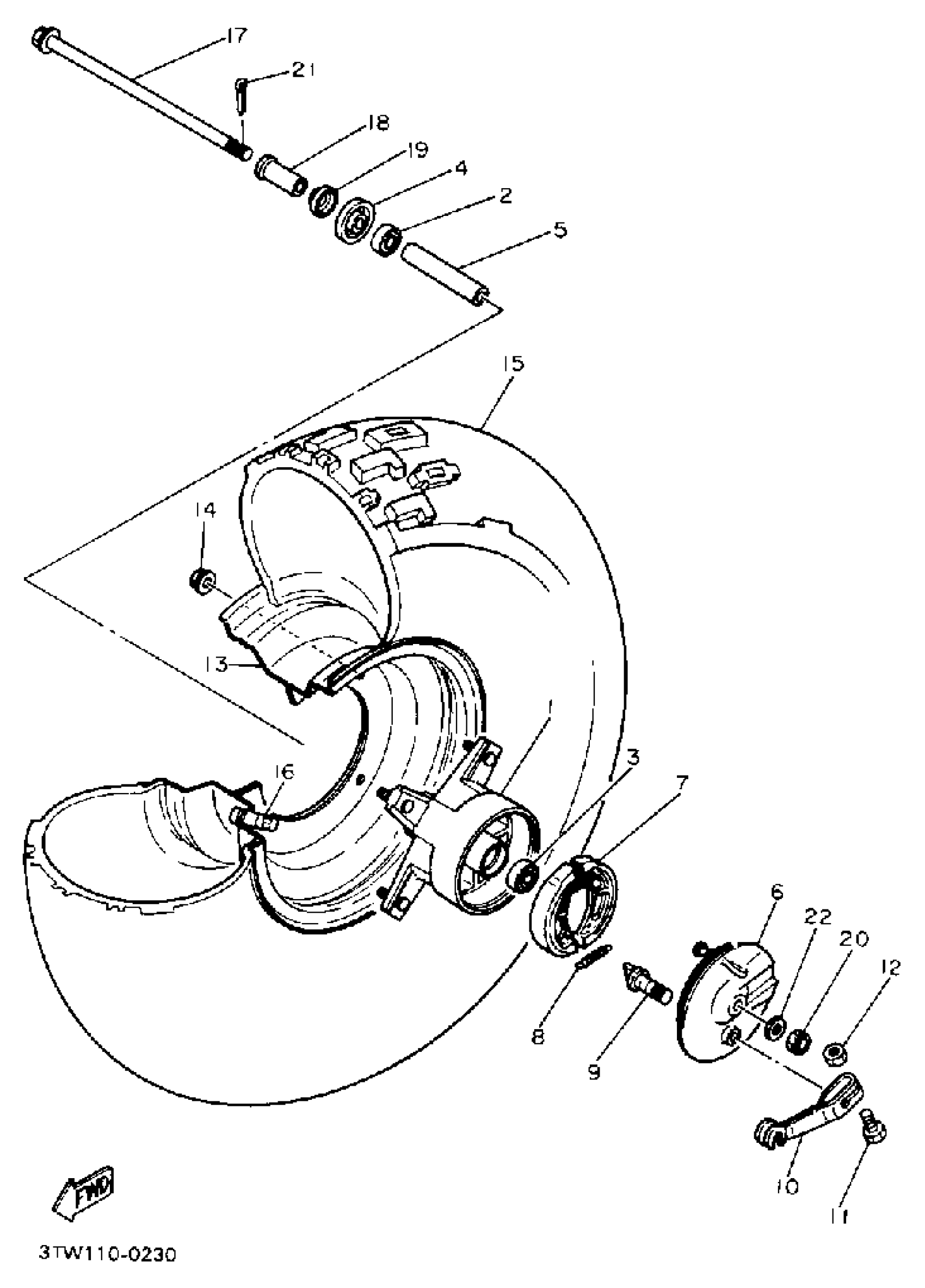

Find the part on the Front Wheel diagram for your 1990 Yamaha BIG Wheel (BW80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha BIG Wheel (BW80A) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

1RY-25111-00-35

1
Out of stock

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

1

$25.40

In stock

3

BEARING (32N)

93306-00108-00

1

$26.69

In stock

4

OIL SEAL (18X28X8-462)

93106-18013-00

1

$9.22

In stock

5

COLLAR

90387-123N0-00

1
Out of stock

6

PLATE, BRAKE SHOE

2J5-25121-00-35

1
Out of stock

7

BRAKE SHOE KIT

3EC-W253A-00-00

1
Out of stock

8

1

$7.51

In stock

9

CAMSHAFT

1YT-25351-00-00

1
Out of stock

10

LEVER, CAM SHAFT

451-25155-00-00

—

$32.20

In stock

11

BOLT, HEXAGON (462)

90101-06291-00

1

$6.68

In stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

WHEEL, FRONT

1RY-25180-10-35

1
Out of stock

14

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

15

AT19X6-10KT646A DN (AT19X6-10 KT046A T/L)

94106-106W2-00

1
Out of stock

16

VALVE, RIM(2GH)

93900-00030-00

—

$14.46

In stock

17

AXLE, WHEEL

1RY-25181-00-00

1
Out of stock

18

COLLAR

90387-122N9-00

1
Out of stock

19

COVER, HUB DUST

462-25118-00-00

1
Out of stock

20

NUT,CASTLE

90171-12058-00

1
Out of stock

21

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

22

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock
