1970 Kawasaki Bushwhacker Cylinder Head/cylinder Diagram

← All diagrams

Find the part on the Cylinder Head/cylinder diagram for your 1970 Kawasaki Bushwhacker, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

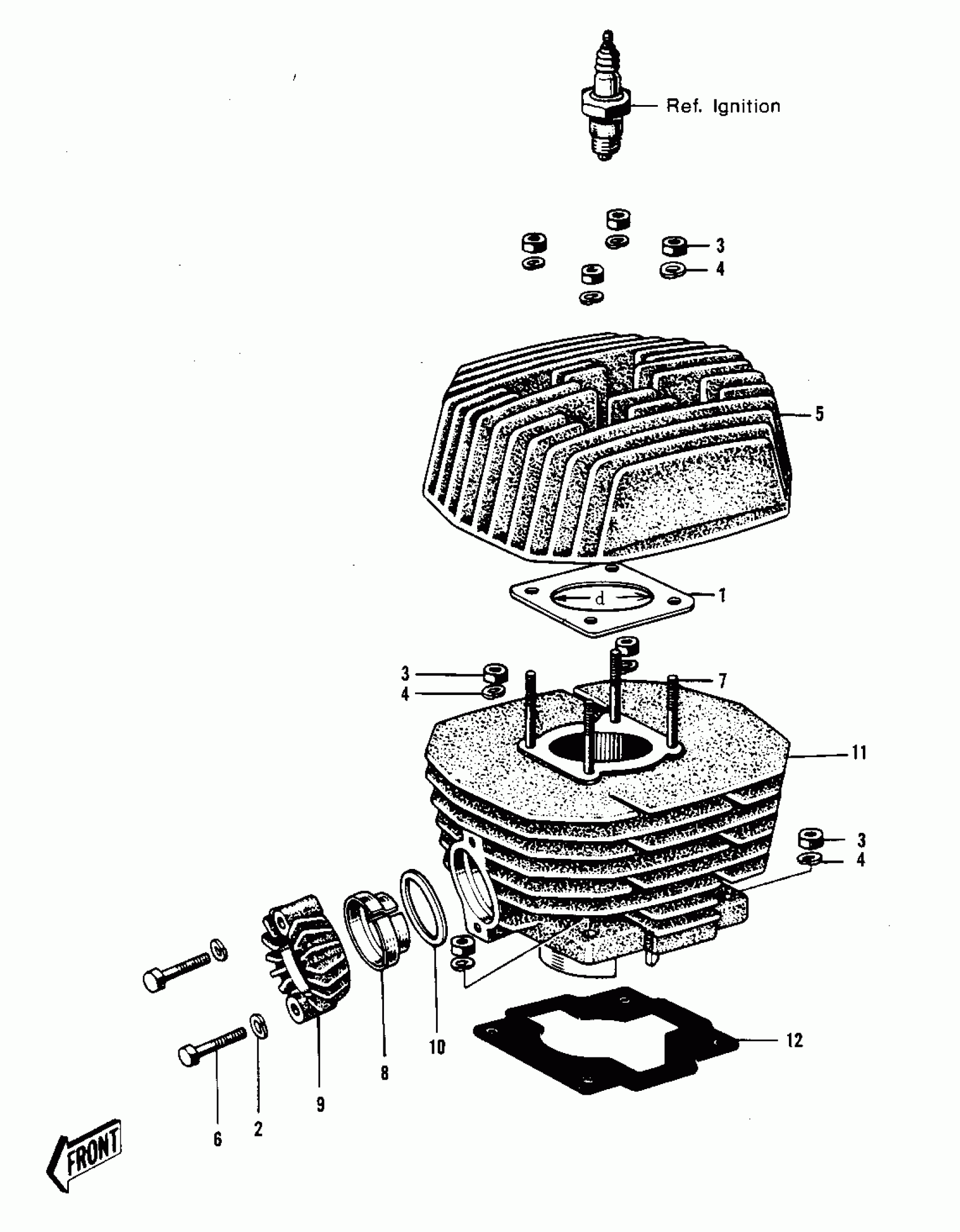

1970 Kawasaki Bushwhacker Cylinder Head/cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET CYLINDER HEAD

11004-021

1
Out of stock

2

WASHER SPRING 6MM

461F0600

1
Out of stock

3

NUT,8MM

311B0800

1
Out of stock

4

WASHER SPRING 8MM

461F0800

1
Out of stock

4

WASHER SPRING 8MM

461F0800

—
Out of stock

4

WASHER SPRING 8MM

461F0800

—
Out of stock

5

CYLINDER HEAD

11001-031

1
Out of stock

6

BOLT-UPSET,6X40

112G0640

1
Out of stock

7

STUD 8X40

92004-003

1
Out of stock

8

1

$2.97

In stock

9

1

$15.25

In stock

10

1

$15.24

In stock

11

CYLINDER

11005-041

1
Out of stock

12

GASKET CYLINDER BASE

11009-012

1
Out of stock
