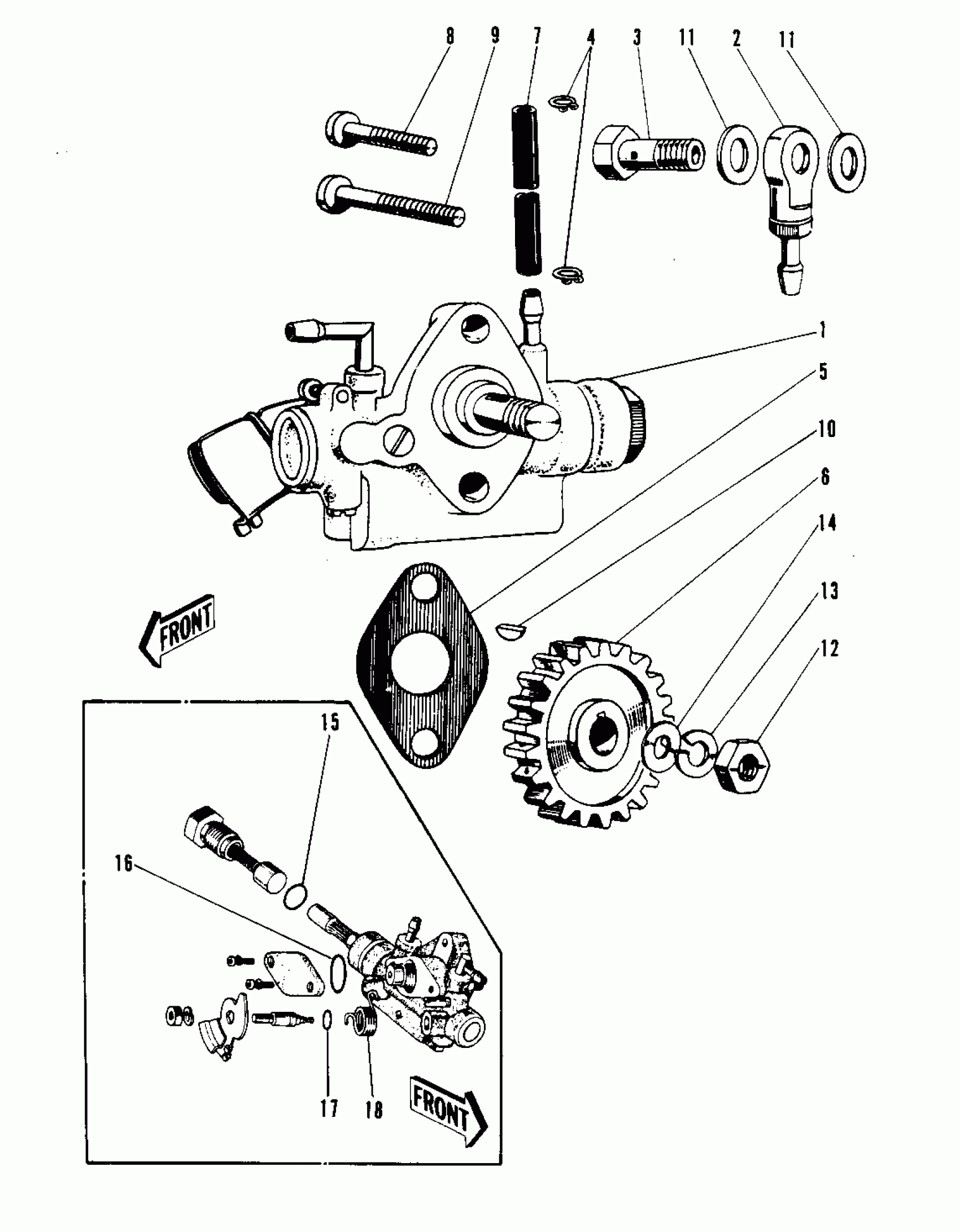

Kawasaki Bushwhacker OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

16082-010

$124.94

2

CHECK VALVE

16087-002

$49.75

3

BOLT BANJO 8X21

92060-014

Unavailable

3

BOLT BANJO 8X21

92060-014

Unavailable

4

CLAMP OIL PIPE

92037-019

$2.17

5

GASKET,OIL PUMP

11060-1160

$4.20

6

GEAR OIL PUMP

16085-003

$15.12

7

TUBE

92059-074

Unavailable

8

SCREW-PAN-CROS

220B0514

Unavailable

9

SCREW, PAN HEAD, 5 X 28

220B0528A

$1.34

10

WOODRUFF KEY

510A2500

$7.27

11

GASKET 8MM

751P0800

Unavailable

12

NUT,8MM

311B0800

Unavailable

13

WASHER SPRING 8MM

461F0800

Unavailable

13

WASHER SPRING 8MM

461F0800

Unavailable

14

WASHER PLAIN 8MM

410B0800

Unavailable

15

"0" RING,HOUSING

16088-001

Unavailable

16

"0" RING,WORM GEAR

16090-001

Unavailable

17

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

$7.91

18

SPRING OIL PUMP LEVER

16093-001

$3.07
