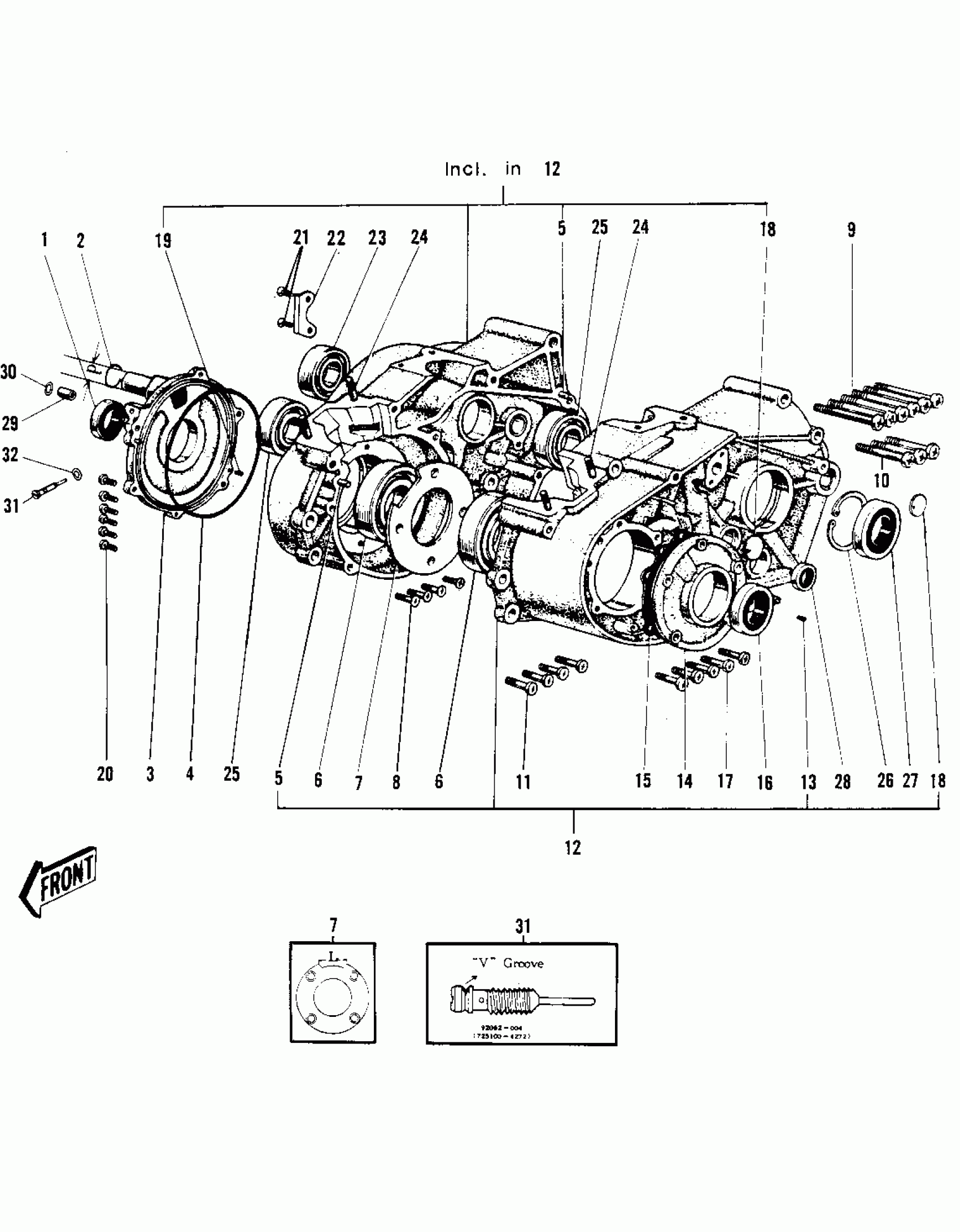

Kawasaki Bushwhacker CRANKCASE Diagram

#

Description
Price

1

OIL SEAL TB32457

653B324507

$13.29

2

"0" RING,35MM

671B2535

Unavailable

3

COVER ROTARY DISC VLV

14019-027

Unavailable

4

"0" RING,126MM

92055-013

$10.00

5

PIN DOWEL 8X16

551A0816

$1.14

6

BEARING-BALL,#6305C3

601B6305

$20.88

7

HOLDER BEARING

14014-005

Unavailable

8

SCREW-CSK-CROS,6X16

221B0616

$0.54

9

SCREW-PAN-CROS,6X60

220B0660

Unavailable

10

SCREW PAN HEAD 6X50

220B0650

$1.03

11

SCREW PAN HEAD 6X45

220B0645

$1.33

12

CRANKCASE SET

14001-015

Unavailable

13

PIN DOWEL 3X12

551A0312

Unavailable

14

RETAINER OIL SEAL

14020-006

Unavailable

15

GASKET OIL SEAL RETNR

14023-004

Unavailable

16

SEAL-OIL

92049-1250

$14.78

17

SCREW-CSK-CROS,6X12

221B0612

$1.49

18

PLUG

92084-001

$2.36

19

ROLLER,5X12

610A0512

$4.53

20

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

21

SCREW-PAN-CROS,6X14

220B0614

$1.14

22

HOLDER BEARING

14014-004

Unavailable

23

BEARING-BALL,#6203C3

601B6203

$10.67

24

BOLT-STUD,8X22

172G0822

Unavailable

25

BEARING-BALL,#6204C3

601B6204

$10.33

26

RING-SNAP,47MM

92033-1042

$3.22

27

OIL SEAL SC25476

92050-006

$24.78

28

SEAL-OIL

92049-1249

$7.87

29

PIN,DOWEL,8X16

92042-017

$4.89

30

RING-O,7.8X3.5

92055-029

$3.51

31

NOZZLE OIL INJECTION

92062-002

$6.92

31

NOZZLE OIL INJECTION

92062-004

Unavailable

32

"0" RING,5MM

92055-011

Unavailable
