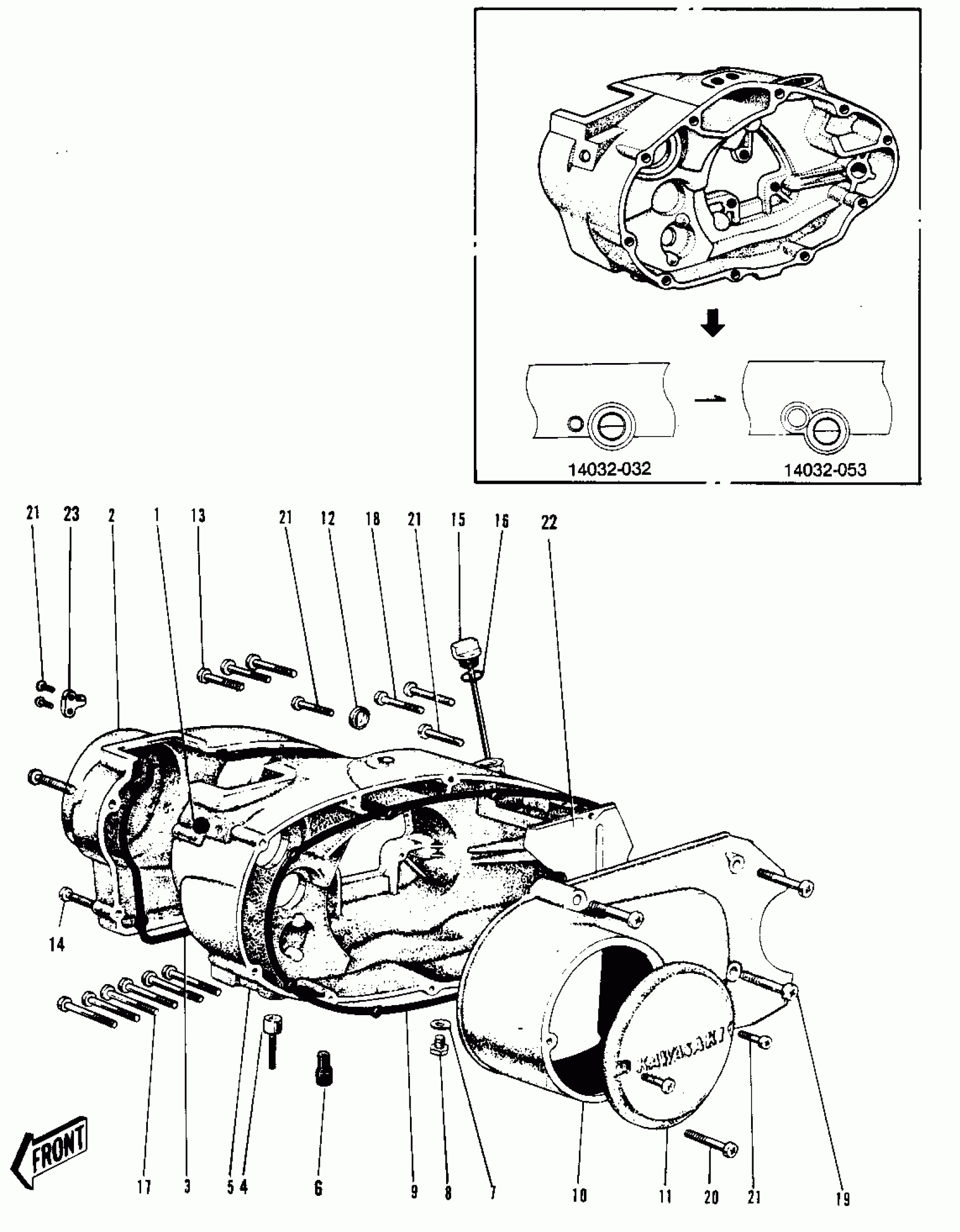

Kawasaki Bushwhacker ENGINE COVERS Diagram

#

Description
Price

1

CAP,RUBBER

14039-001

$3.28

2

COVER,CARBURETOR

14030-063

Unavailable

3

GASKET CARBURETOR COV

14047-003

Unavailable

4

PIPE FUEL OVERFLOW

16116-001

Unavailable

5

EQ PANT FLGRN/BU/GY32

14032-032A

$175.25

5

COVER-R.H ENGINE

14032-053

Unavailable

6

DRAIN-OVERFLOW

16116-004

Unavailable

7

GASKET,10.5X16X1

92065-058

$3.03

8

PLUG,DRAIN,10X12

92067-001

$3.36

9

GASKET R.H ENGINE COV

14046-005

Unavailable

10

COVER L.H ENGINE

14031-022

Unavailable

11

COVER CONTACT BREAKER

14027-006

Unavailable

12

SEAL-OIL,SB16244

92049-002

$6.75

13

SCREW PAN HEAD 6X35

220B0635

$1.24

14

SCREW PAN HEAD 6X25

220B0625

Unavailable

15

PLUG OIL FILLER

16115-003

Unavailable

16

O RING,20MM

670B2020

$0.97

17

SCREW PAN HEAD 6X70

220B0670

Unavailable

18

SCREW-PAN-CROS,6X60

220B0660

Unavailable

19

SCREW PAN HEAD 6X55

220B0655

$3.14

20

SCREW PAN HEAD 6X50

220B0650

$1.03

21

SCREW PAN HEAD 6X25

220B0625

Unavailable

22

COVER DRV CHAIN BACK

14024-002

Unavailable

23

GUIDE OIL PUMP CABLE

14044-003

Unavailable
