2025 Kawasaki Brute Force® 750 LE EPS Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2025 Kawasaki Brute Force® 750 LE EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

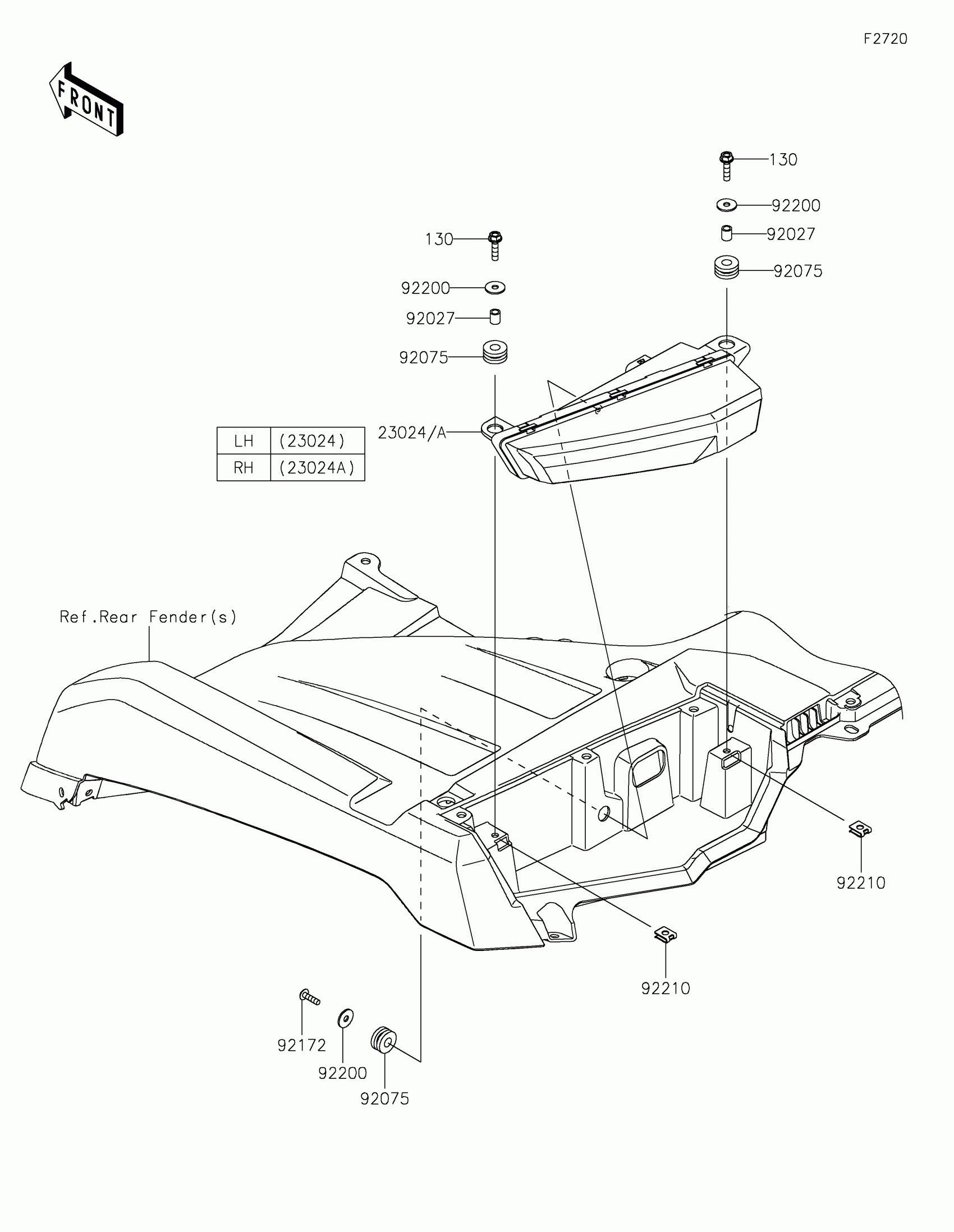

2025 Kawasaki Brute Force® 750 LE EPS Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23024

LAMP-ASSY-TAIL,LED,LH

23024-0007

1
Out of stock

23024A

LAMP-ASSY-TAIL,LED,RH

23024-0008

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92172

SCREW

92172-1072

1
Out of stock

92200

WASHER,6.5X20X1.6

92200-0283

1
Out of stock

92210

NUT

92210-0754

1
Out of stock

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock
