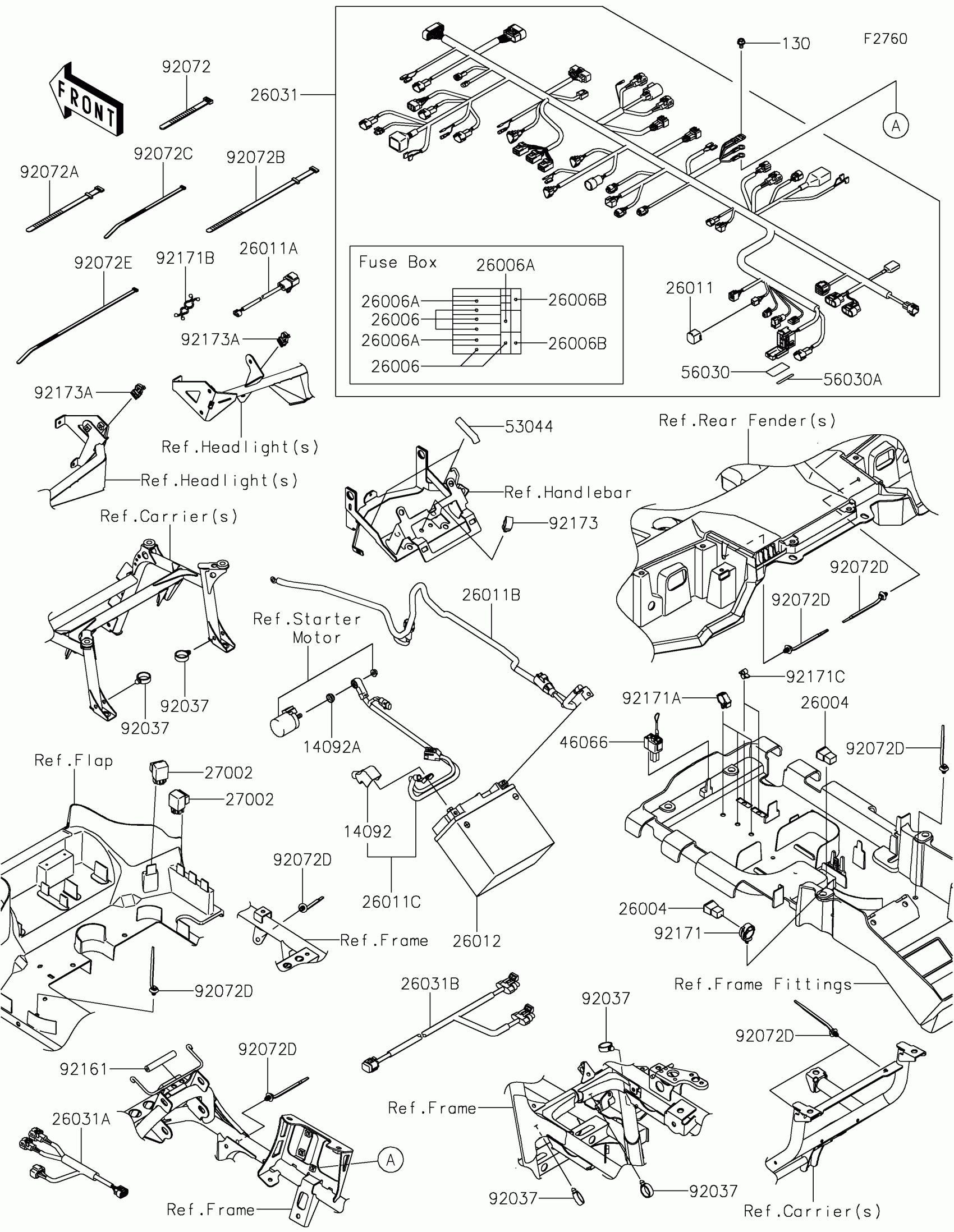

Kawasaki BRUTE FORCE® 750 LE EPS Chassis Electrical Equipment Diagram

Description

Price

14092

COVER

14092-0767

$6.01

14092A

COVER,MAGNETIC SW.

14092-0851

$1.63

26004

FUSE-ASSY,40A

26004-0035

$4.21

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,10A,RED

26006-0009

Unavailable

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD,CAP

26011-0271

$13.98

26011A

WIRE-LEAD,EPS EXTENSION

26011-0312

$29.83

26011B

WIRE-LEAD,BATTERY(-)

26011-0744

$46.97

26011C

WIRE-LEAD,BATTERY(+)

26011-2463

$80.57

26012

BATTERY,MF,KMX14-BS,12V 12AH

26012-0785

$117.11

26031

HARNESS,MAIN

26031-4045

$555.08

26031A

HARNESS,INJECTOR

26031-4136

$55.18

26031B

HARNESS,TAIL LAMP

26031-4176

$31.96

27002

RELAY-ASSY

27002-1062

$40.25

46066

CONNECTOR-ASSY,RESET

46066-0001

$21.77

53044

TRIM,L=60

53044-0651

$2.20

56030

LABEL,FUSE BOX,10A&15A

56030-0401

$3.31

56030A

LABEL,FUSE BOX,30A

56030-0404

$3.31

92037

CLAMP,HOSE

92037-1827

$5.69

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=186

92072-056

$3.81

92072B

BAND,L=278

92072-1087

Unavailable

92072C

BAND,L=188

92072-1239

$1.30

92072D

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92072E

BAND,L=292.1

92072-3509

Unavailable

92161

DAMPER,4.5X11X68

92161-0988

$2.19

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.29

92171A

CLAMP,BRAKE HOSE

92171-0316

$2.93

92171B

CLAMP

92171-0476

$3.51

92171C

CLAMP

92171-0477

$2.68

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP,W/EDGE CLIP,DIA.6-45

92173-1827

$1.93

130

BOLT-FLANGED,6X10

130BA0610

$0.97
