2025 Kawasaki Brute Force® 750 LE EPS Camo Labels Diagram

← All diagrams

Find the part on the Labels diagram for your 2025 Kawasaki Brute Force® 750 LE EPS Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

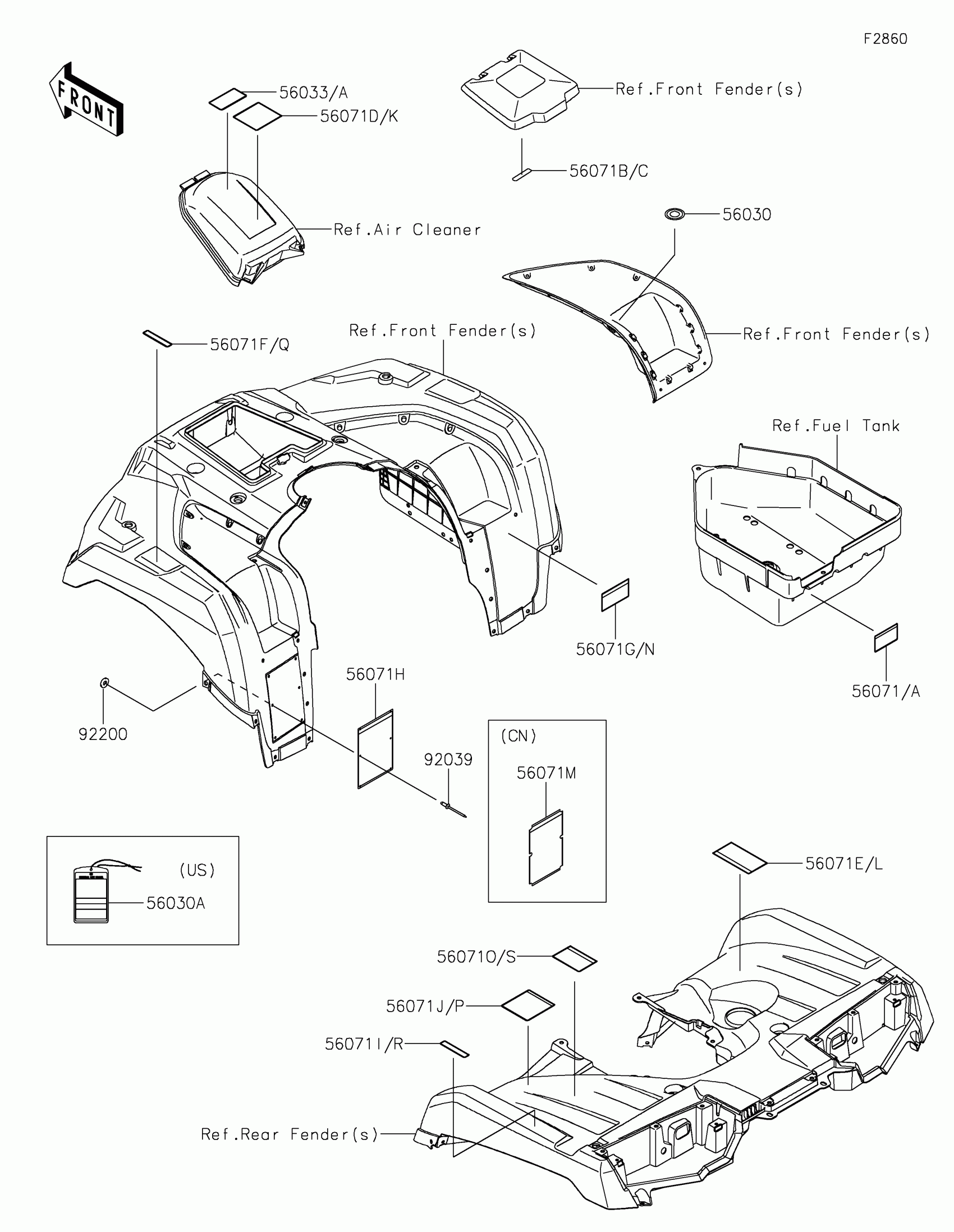

2025 Kawasaki Brute Force® 750 LE EPS Camo Labels Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56030

LABEL,IGNITION SWITCH

56030-0018

1
Out of stock

56030A

LABEL,HANGTAG

56030-0194

1
Out of stock

56033

LABEL-MANUAL,AIR CLEANER

56033-1504

1
Out of stock

56071

LABEL-WARNING,TOWING

56071-0079

1
Out of stock

56071B

LABEL-WARNING,STORAGE

56071-0199

1
Out of stock

56071D

LABEL-WARNING,UNDER 16

56071-1232

1
Out of stock

56071E

LABEL-WARNING,DRIVE BELT

56071-1233

1
Out of stock

56071F

LABEL-WARNING,MAX LOAD 40KG

56071-1234

1
Out of stock

56071G

LABEL-WARNING,SHIFT LEVER

56071-1236

1
Out of stock

56071H

LABEL-WARNING,SERIOUS INJURY

56071-1237

1
Out of stock

56071I

LABEL-WARNING,MAXIMUM LOAD

56071-1238

1
Out of stock

56071J

LABEL-WARNING,TIRE&LOAD

56071-1239

1
Out of stock

56071S

LABEL-WARNING,NO PASSENGER

56071-1257

1
Out of stock

92039

RIVET,3.2X8

92039-3763

1
Out of stock

92200

WASHER,3.5X8X1

92200-1251

1
Out of stock
