2025 Kawasaki Brute Force® 750 LE EPS Camo Flap Diagram

← All diagrams

Find the part on the Flap diagram for your 2025 Kawasaki Brute Force® 750 LE EPS Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

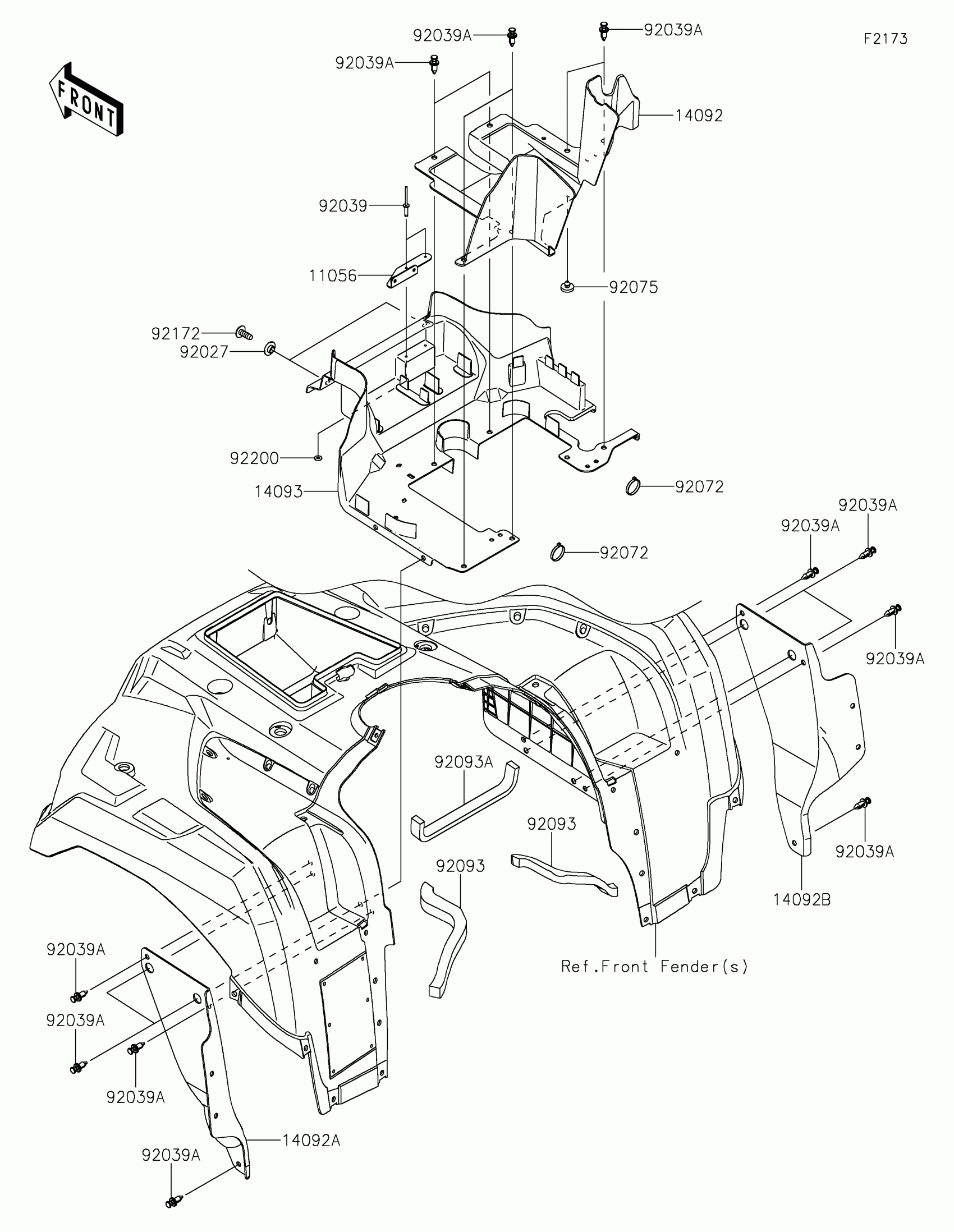

2025 Kawasaki Brute Force® 750 LE EPS Camo Flap Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,V.D. SENSOR

11056-0956

1
Out of stock

14092

COVER,TOP INNER,RR

14092-0182

1
Out of stock

14092A

COVER,SIDE INNER,LH

14092-0183

1
Out of stock

14092B

COVER,SIDE INNER,RH

14092-0184

1
Out of stock

14093

COVER,TOP INNER,FR

14093-0022

1
Out of stock

92027

COLLAR

92027-4020

1
Out of stock

92039

RIVET

92039-0031

1
Out of stock

92039A

RIVET

92039-0776

1
Out of stock

92072

BAND,L=292.1

92072-3509

1
Out of stock

92075

DAMPER,BOOST SENSOR

92075-2113

1
Out of stock

92093

SEAL,20X270X30

92093-0570

1
Out of stock

92093A

SEAL,20X300X20

92093-0571

1
Out of stock

92172

SCREW,TAPPING,6X16

92172-0739

1
Out of stock

92200

WASHER,3.5X8X1

92200-1251

1
Out of stock
