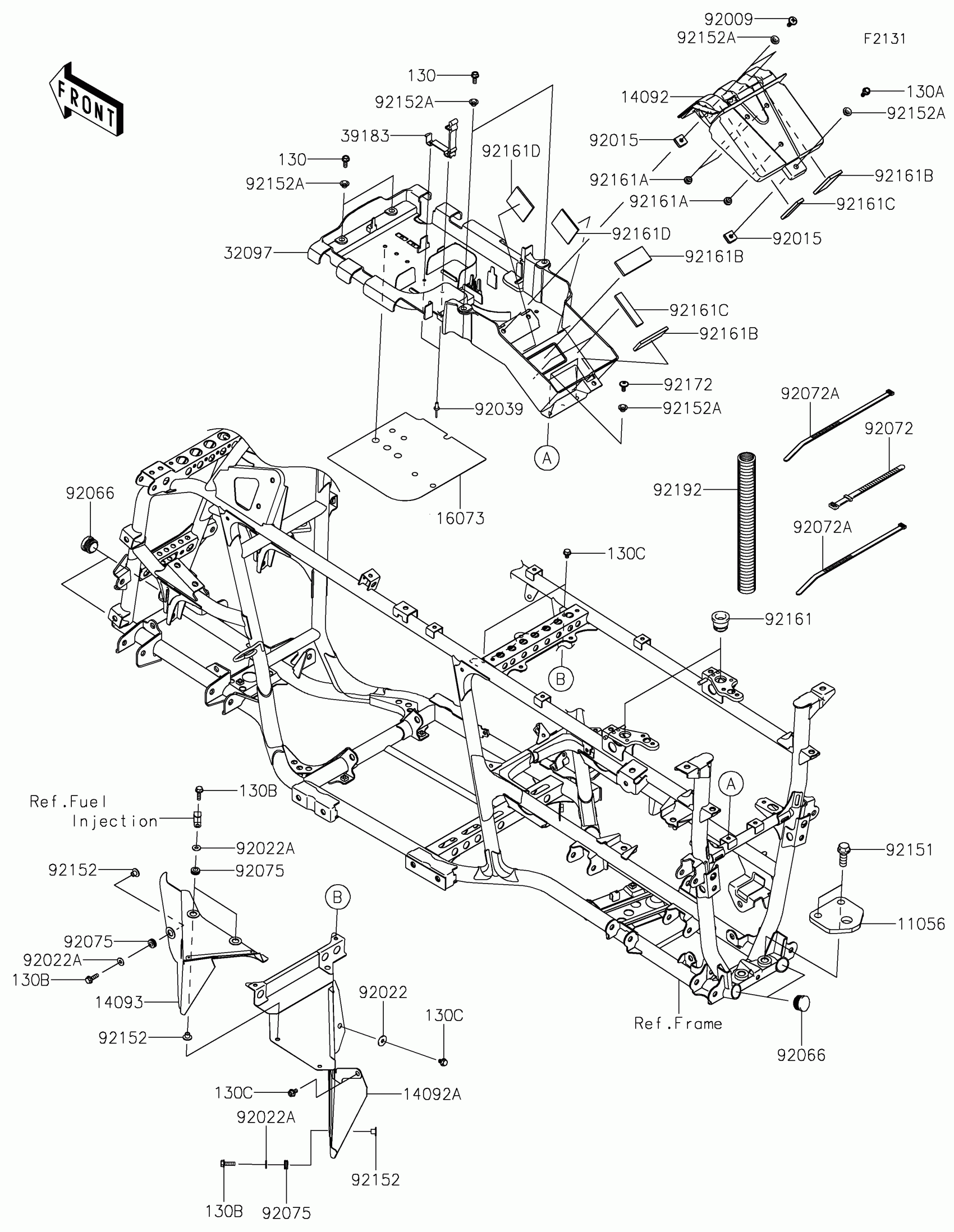

Kawasaki BRUTE FORCE® 750 LE EPS CAMO Frame Fittings Diagram

Description

Price

11056

BRACKET,TRAILER HITCH

11056-0299

$7.98

14092

COVER,BATTERY

14092-0189

$6.40

14092A

COVER,HEAT GUARD,FR

14092-0897

$75.53

14093

COVER,HEAT GUARD

14093-0021

$47.61

16073

INSULATOR,BATTERY CASE

16073-0809

$6.17

32097

CASE-BATTERY

32097-0577

$24.07

39183

BAND-ASSY,TOOL BAG

39183-1065

$9.17

92009

SCREW,6X20

92009-1289

$3.29

92015

NUT,6MM

92015-1094

$6.55

92022

WASHER,6.5X20X1.6

92022-1804

$1.08

92022A

WASHER,6.2X15X1.2

92022-2373

$0.46

92039

RIVET,4.8MM

92039-3719

$5.42

92066

PLUG

92066-0036

$1.52

92072

BAND,L=186

92072-056

$3.81

92072A

BAND,L=292.1

92072-3509

Unavailable

92075

DAMPER

92075-2097

$1.73

92151

BOLT,FLANGED,12X35

92151-1903

$7.27

92152

COLLAR,6.3X8.3X9.2

92152-0237

$4.27

92152A

COLLAR,6.3X8.3X7.2

92152-1865

$0.95

92161

DAMPER

92161-0048

$4.77

92161A

DAMPER

92161-1084

$1.89

92161B

DAMPER,30X70X5

92161-1127

$5.84

92161C

DAMPER,15X70X5

92161-1380

$2.11

92161D

DAMPER,50X50X3

92161-1386

$3.36

92172

SCREW,6X14

92172-0401

$1.81

92192

TUBE,CORRUGATED,25.5X32.25X300

92192-1042

$3.75

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED,6X18

130BA0618

$1.17

130B

BOLT-FLANGED,6X20

130BA0620

$1.28

130C

BOLT-FLANGED,6X10

130BD0610

$2.63
