2026 Kawasaki Brute Force® 750 EPS Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2026 Kawasaki Brute Force® 750 EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

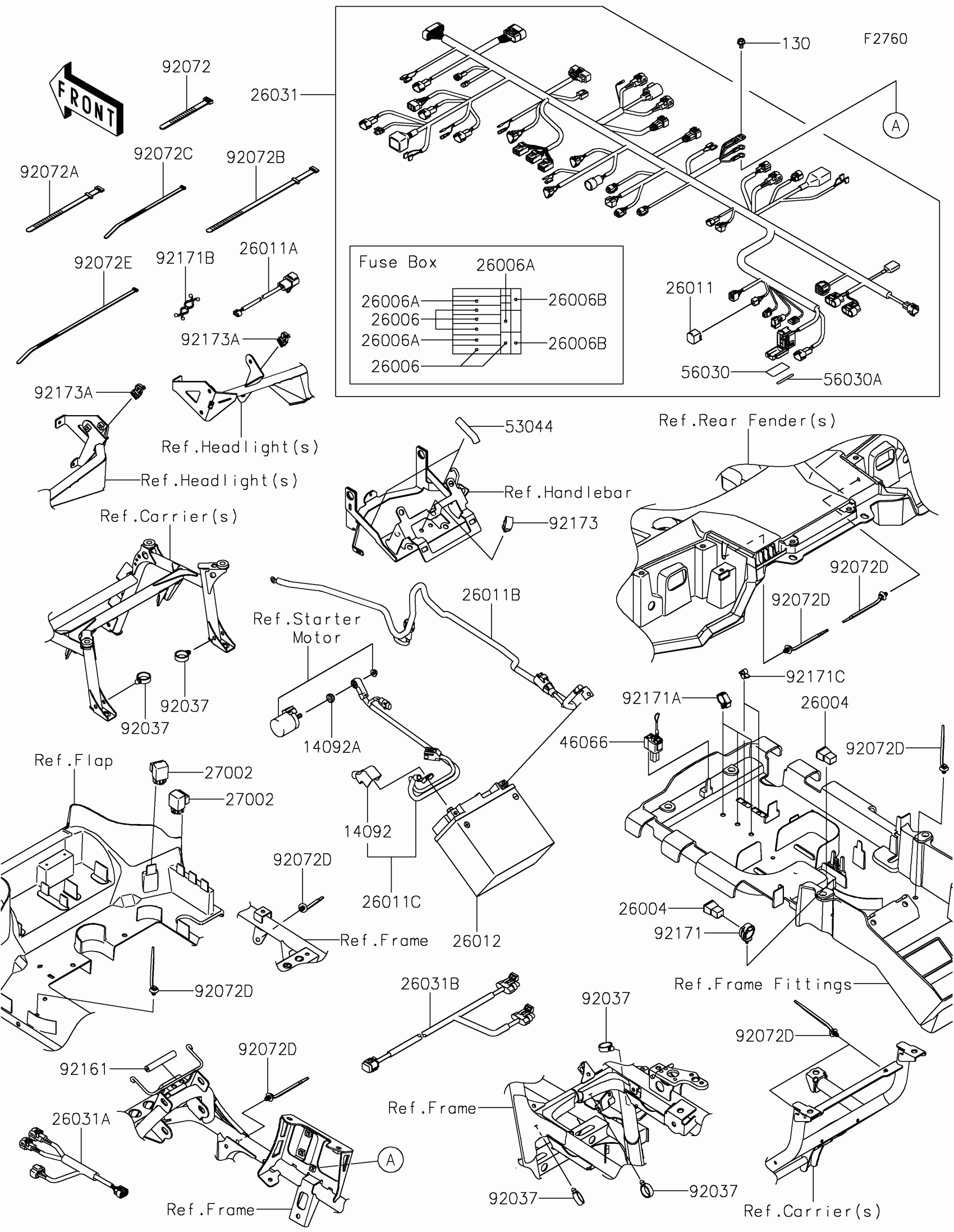

2026 Kawasaki Brute Force® 750 EPS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER

14092-0767

1
Out of stock

14092A

COVER,MAGNETIC SW.

14092-0851

1
Out of stock

26004

FUSE-ASSY,40A

26004-0035

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-0009

1
Out of stock

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26011

WIRE-LEAD,CAP

26011-0271

1
Out of stock

26011A

WIRE-LEAD,EPS EXTENSION

26011-0312

1
Out of stock

26011B

WIRE-LEAD,BATTERY(-)

26011-0744

1
Out of stock

26011C

WIRE-LEAD,BATTERY(+)

26011-2463

1
Out of stock

26012

BATTERY,MF,KMX14-BS,12V 12AH

26012-0785

1
Out of stock

26031

HARNESS,MAIN

26031-4045

1
Out of stock

26031A

HARNESS,INJECTOR

26031-4136

1
Out of stock

26031B

HARNESS,TAIL LAMP

26031-4176

1
Out of stock

27002

RELAY-ASSY

27002-1062

1
Out of stock

46066

1

$24.07

In stock

53044

TRIM,L=60

53044-0651

1
Out of stock

56030

LABEL,FUSE BOX,10A&15A

56030-0401

1
Out of stock

56030A

LABEL,FUSE BOX,30A

56030-0404

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=186

92072-056

1
Out of stock

92072B

BAND,L=278

92072-1087

1
Out of stock

92072C

BAND,L=188

92072-1239

1
Out of stock

92072D

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92072E

BAND,L=292.1

92072-3509

1
Out of stock

92161

DAMPER,4.5X11X68

92161-0988

1
Out of stock

92171

CLAMP,CLIP,DIA=20

92171-0068

1

$2.29

In stock

92171A

CLAMP,BRAKE HOSE

92171-0316

1

$3.08

In stock

92171B

CLAMP

92171-0476

1

$3.51

In stock

92171C

CLAMP

92171-0477

1

$2.68

In stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92173A

CLAMP,W/EDGE CLIP,DIA.6-45

92173-1827

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock
