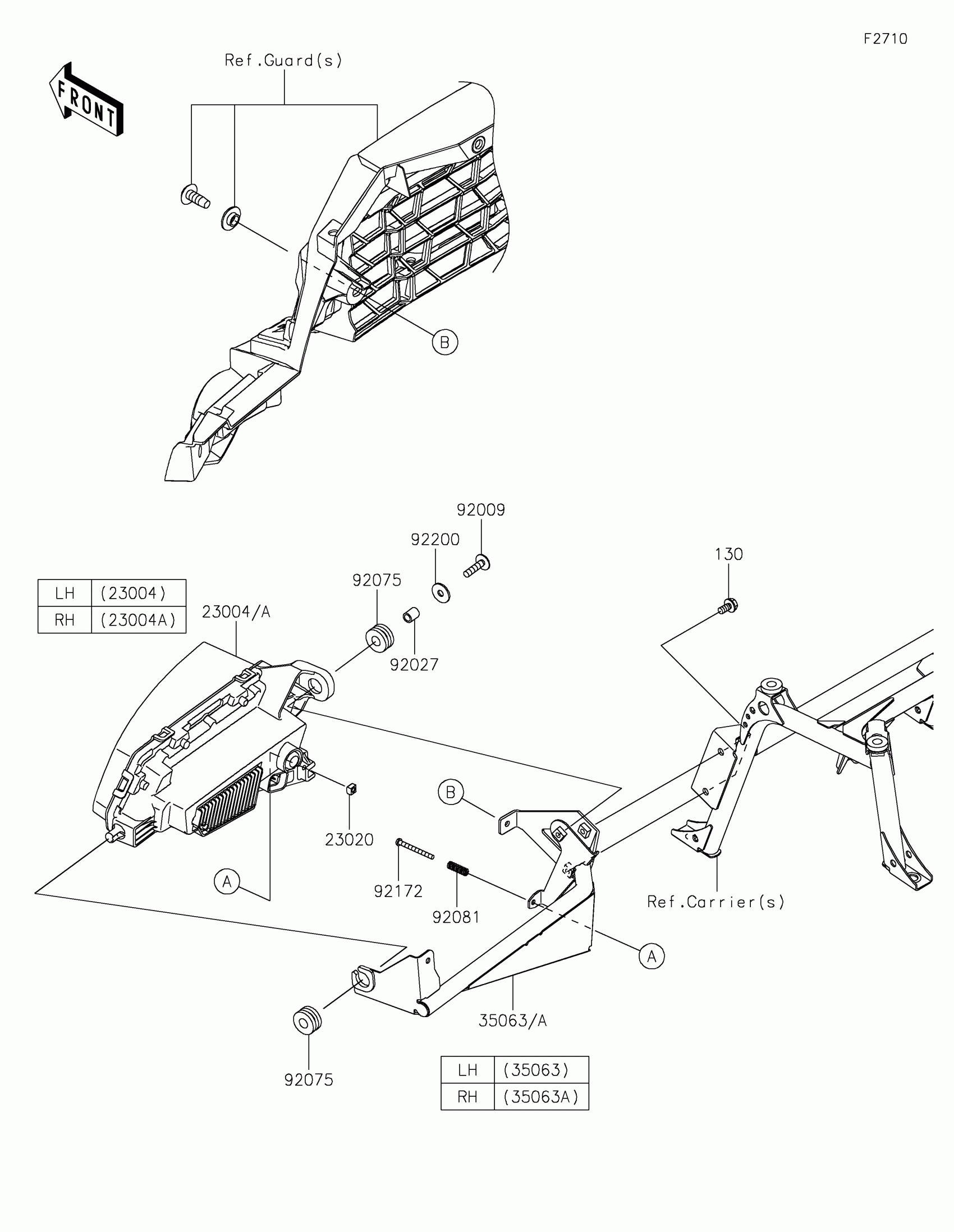

Kawasaki BRUTE FORCE® 750 EPS Headlight(s) Diagram

Description

Price

23004

LAMP-HEAD,LED,LH

23004-0444

$271.72

23004A

LAMP-HEAD,LED,RH

23004-0445

$271.72

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

35063

STAY,HEAD LAMP,LH

35063-1597

$46.85

35063A

STAY,HEAD LAMP,RH

35063-1598

$46.85

92009

SCREW,6X25

92009-1465

$2.99

92027

COLLAR,6.8X10X12

92027-162

$4.93

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,FOCUS ADJUST

92081-1896

$3.99

92172

SCREW,4X40

92172-1092

$0.85

92200

WASHER,6.5X20X1.6

92200-0283

$1.08

130

BOLT-FLANGED,6X12

130BA0612

$1.25
