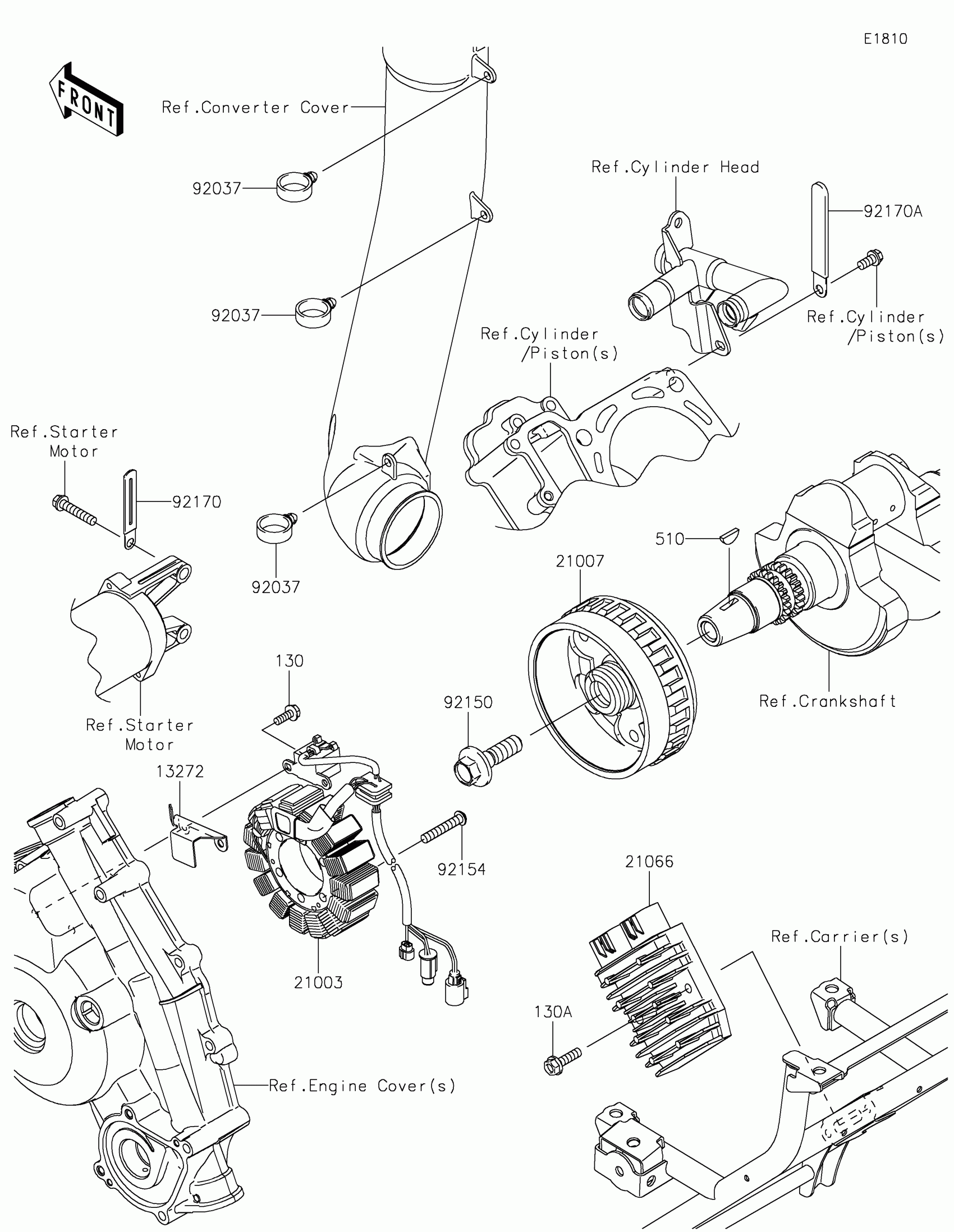

Kawasaki BRUTE FORCE® 750 EPS Generator Diagram

Description

Price

13272

PLATE

13272-1222

$2.76

21003

STATOR

21003-0167

$626.16

21007

ROTOR

21007-0633

$658.35

21066

REGULATOR-VOLTAGE

21066-0771

$312.48

92037

CLAMP,HOSE

92037-1827

$5.69

92150

BOLT,12X40

92150-1717

$10.93

92154

BOLT,TORX,6X35

92154-1007

$2.11

92170

CLAMP

92170-1514

$3.29

92170A

CLAMP

92170-1925

$1.98

130

BOLT-FLANGED,5X14

130BA0514

$1.49

130A

BOLT-FLANGED,6X22

130BA0622

$1.00

510

KEY-WOODRUFF

510A4200

$2.04
