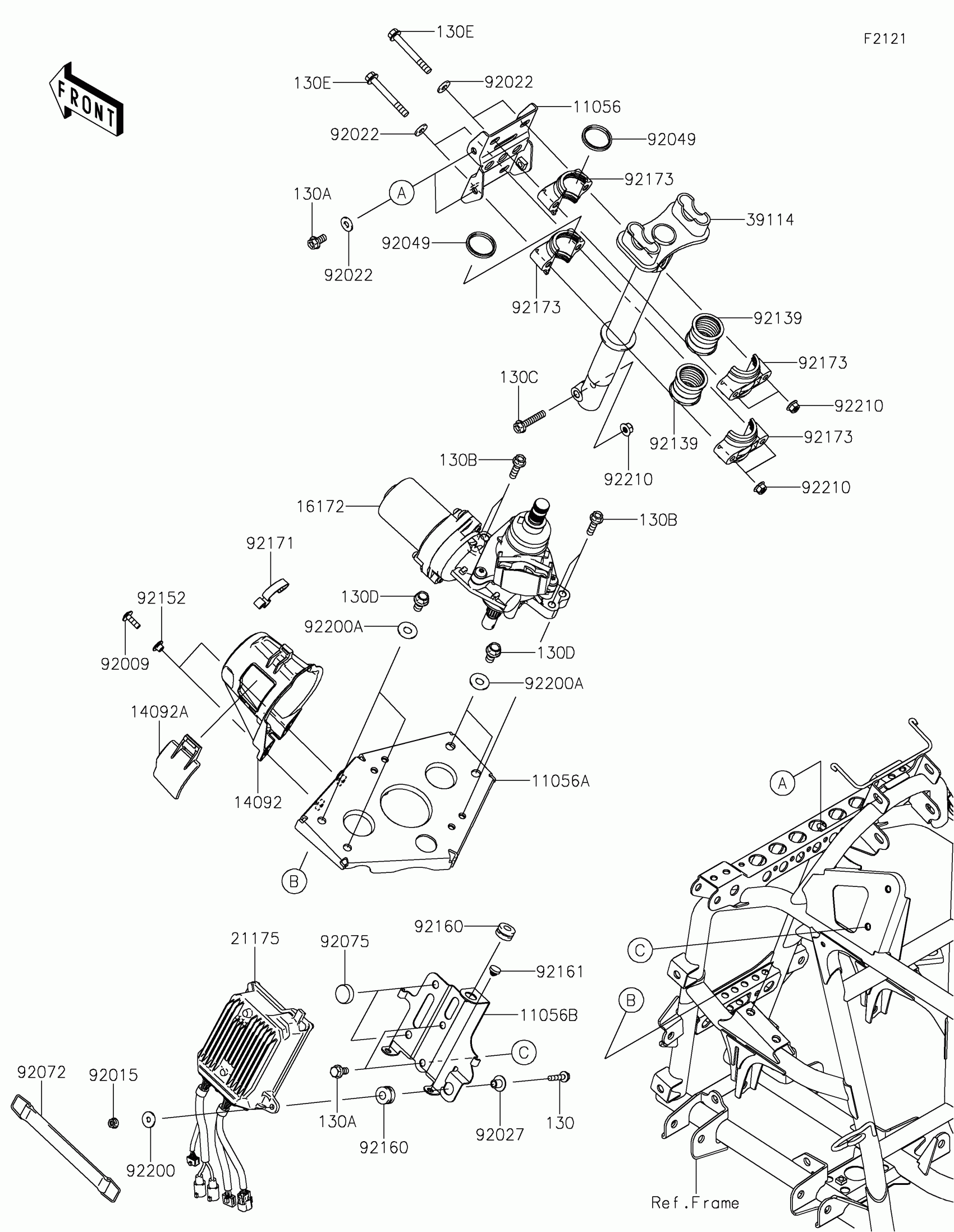

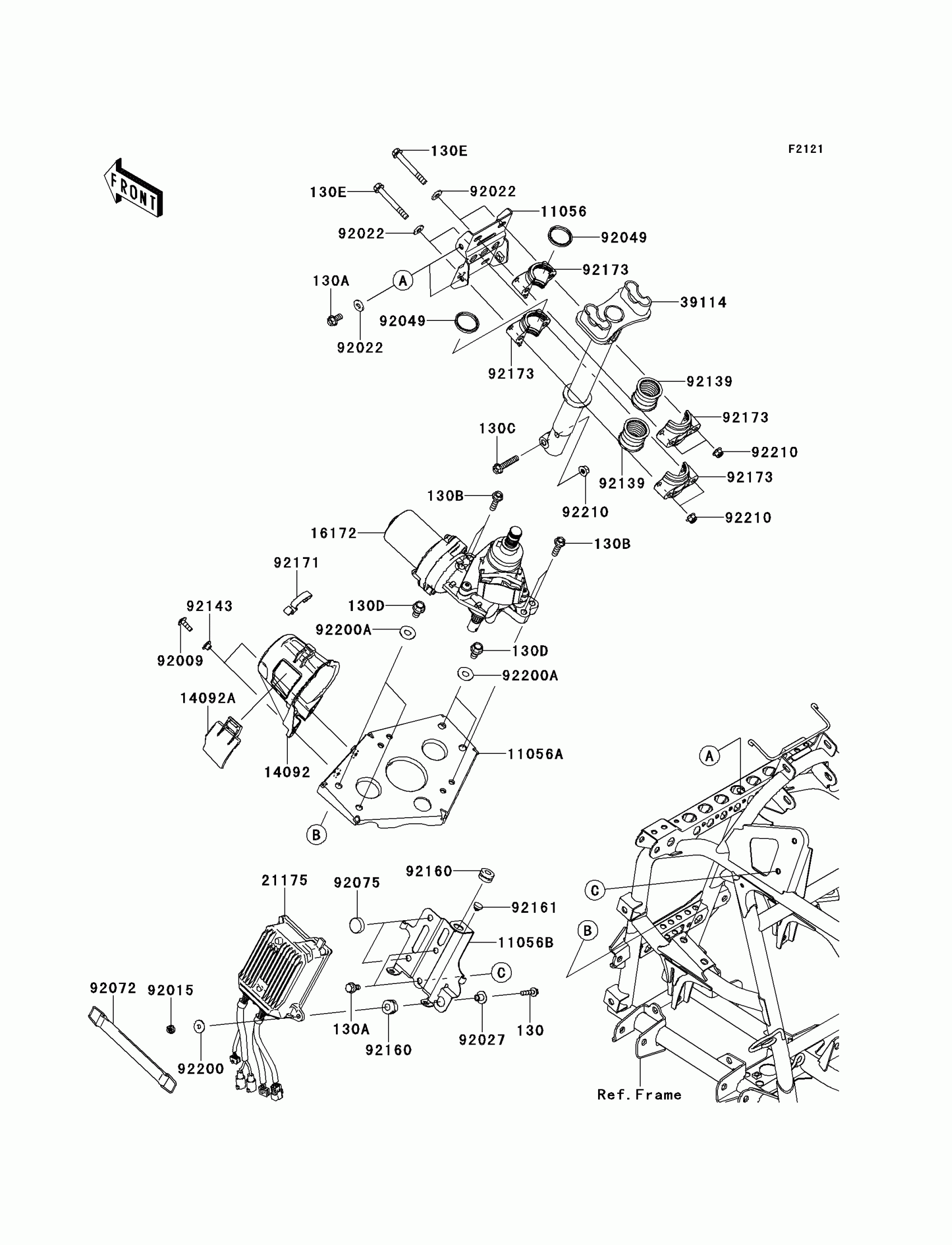

Kawasaki BRUTE FORCE® 750 4x4i EPS Steering Shaft Diagram

Description

Price

130

BOLT-FLANGED,6X30

130BA0630

$1.13

130A

BOLT-FLANGED,8X16

130BA0816

$0.89

130B

BOLT-FLANGED,8X30

130BA0830

$1.44

130C

BOLT-FLANGED,8X40

130BA0840

$1.44

130D

BOLT-FLANGED,10X16

130BA1016

$3.63

130E

BOLT-FLANGED,8X65

130CA0865

$1.66

11056

BRACKET,STRG,UPP

11056-0284

$10.17

11056A

BRACKET,EPS BODY FIT

11056-0285

$48.79

11056B

BRACKET,EPS ECU

11056-0290

$15.97

14092

COVER,EPS

14092-0260

$34.89

14092A

COVER,EPS,CAP

14092-0261

$5.86

16172

ACTUATOR,EPS

16172-0560

$1,699.52

21175

CONTROL UNIT-ELECTRONIC,EPS

21175-0752

$883.21

39114

SHAFT-COMP-STRG

39114-0309

$111.11

92009

SCREW,6X20

92009-1289

$3.29

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92022

WASHER,8.2X19X2

92022-1533

$4.85

92027

COLLAR,L=12

92027-1062

$7.25

92049

SEAL-OIL,SR31.8X37.5X3.8LR

92049-7501

$3.81

92072

BAND,BATTERY

92072-3879

$36.42

92075

DAMPER,9X24X14

92075-281

$4.67

92139

BUSHING,STRG SHAFT

92139-0763

$10.15

92143

COLLAR

92143-1057

$3.81

92160

DAMPER

92160-1895

$2.49

92161

DAMPER

92161-0586

$1.93

92171

CLAMP

92171-0225

$1.44

92173

CLAMP,STRG SHAFT

92173-0746

$15.46

92200

WASHER,6.5X20X1.6

92200-0283

$1.08

92200A

WASHER,10.5X25X1.6

92200-1595

$4.65

92210

NUT,FLANGED,LOCK,8MM

92210-0493

$5.80
