2013 Kawasaki Brute Force® 750 4x4i EPS Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2013 Kawasaki Brute Force® 750 4x4i EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

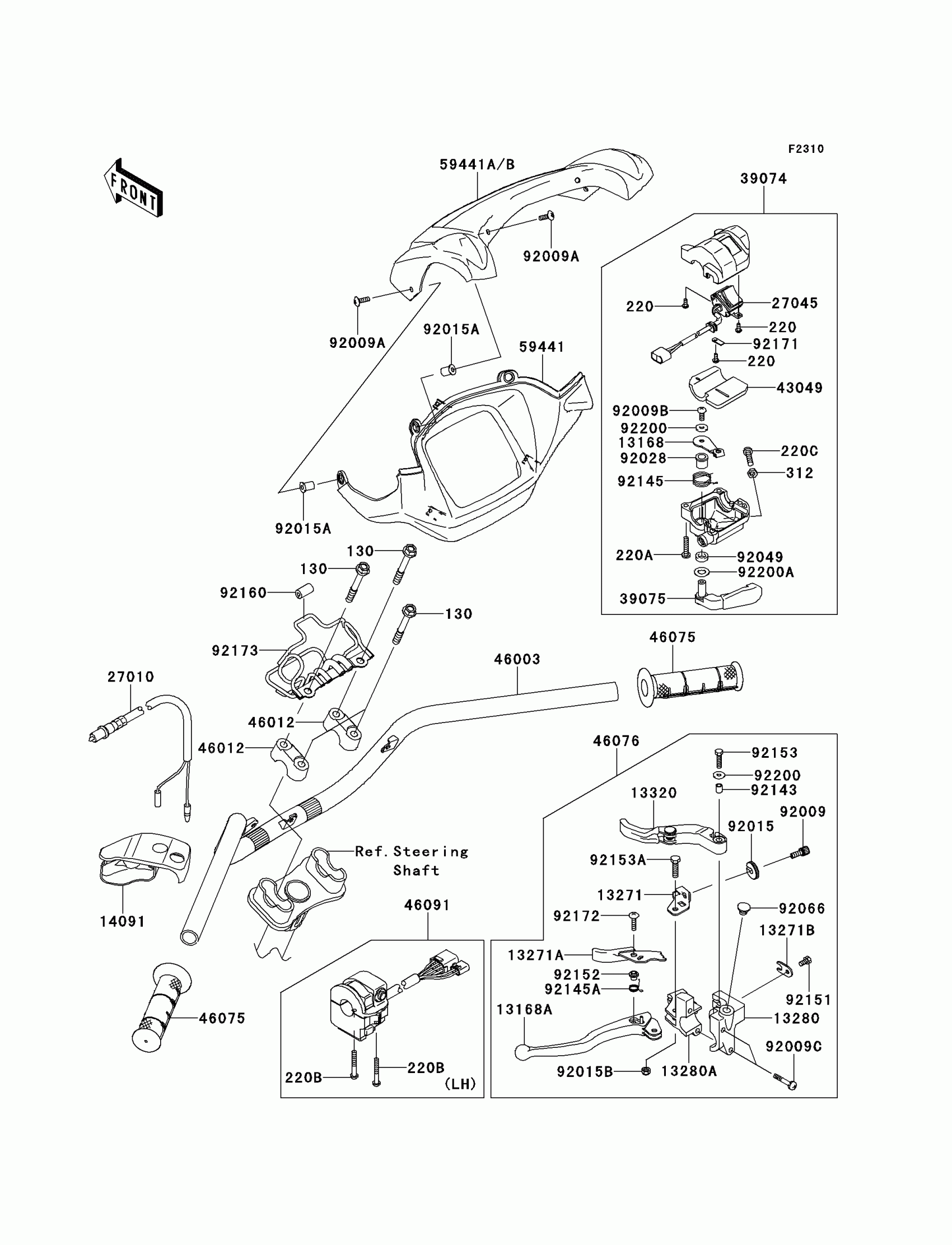

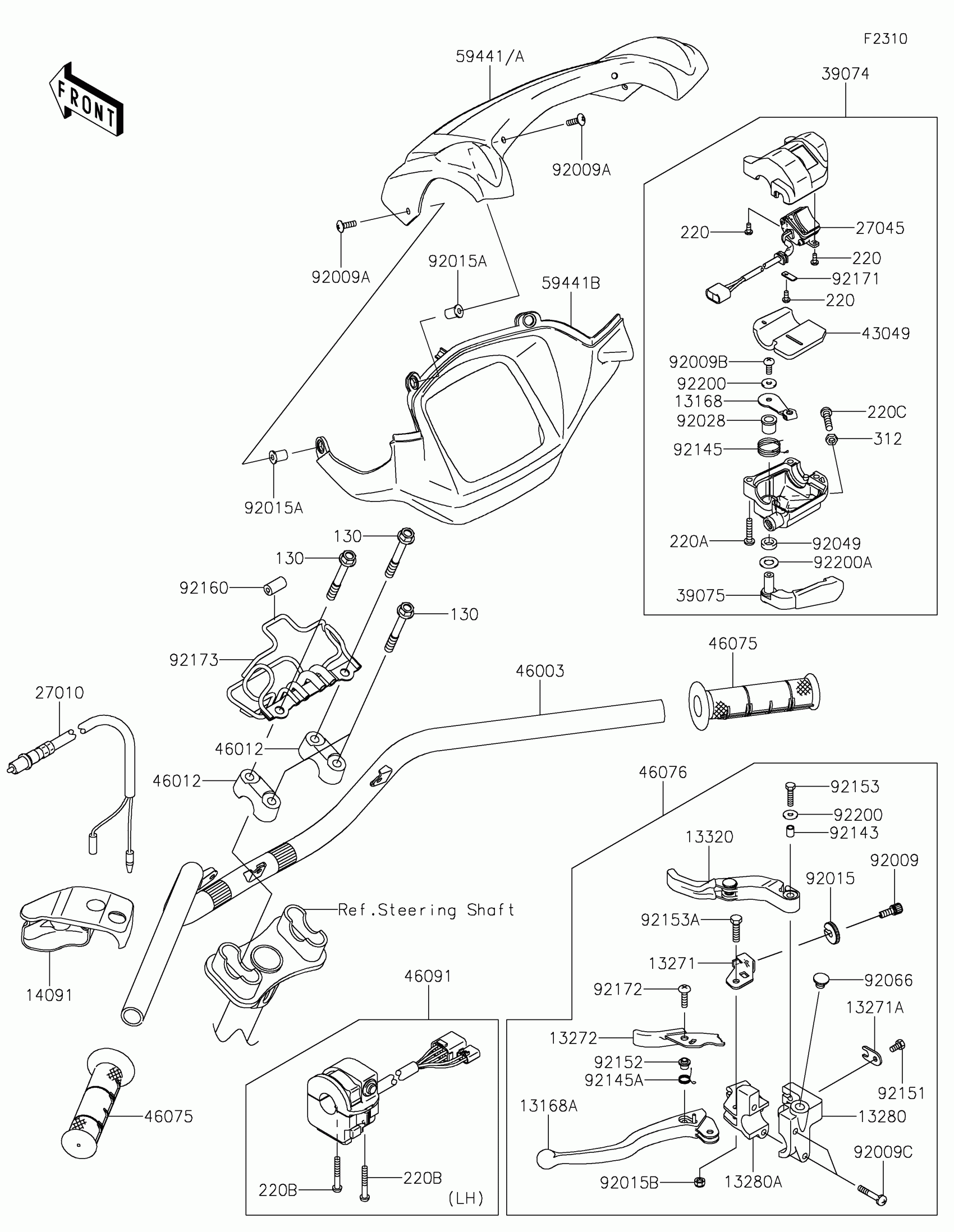

2013 Kawasaki Brute Force® 750 4x4i EPS Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER

13168-1715

1

$8.37

In stock

13168A

LEVER,LH

13168-1736

1

$25.19

In stock

13271

PLATE,LOCK

13271-1259

1
Out of stock

13271A

PLATE,LEVER LOCK

13271-1635

1

$13.32

In stock

13271B

1

$3.75

In stock

13280

1

$28.99

In stock

13280A

HOLDER,LEVER,LH

13280-1227

1

$28.99

In stock

13320

LEVER-ASSY,DIFF LOCK

13320-1018

1
Out of stock

14091

1

$17.03

In stock

27010

SWITCH,BRAKE

27010-1294

1

$35.85

In stock

27045

SWITCH-ASSY

27045-0010

1

$31.90

In stock

39074

LEVER-ASSY-THROTTLE

39074-0002

1

$175.18

In stock

39075

LEVER-THROTTLE

39075-1062

1

$29.26

In stock

43049

PACKING

43049-1088

1

$10.63

In stock

46003

HANDLE

46003-1580

1

$70.48

In stock

46012

HOLDER-HANDLE

46012-1168

1

$15.44

In stock

46075

GRIP

46075-0065

1

$27.63

In stock

46076

1

$105.23

In stock

46091

1

$194.06

In stock

59441

COVER-HANDLE,RR,F.BLACK

59441-0006-6Z

1

$21.12

In stock

59441B

COVER-HANDLE,FR,C.L.GREEN

59441-0015-367

1

$52.35

In stock

92009

SCREW,CABLE ADJUST,8MM

92009-1435

1
Out of stock

92009A

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92009B

SCREW

92009-1959

1
Out of stock

92009C

SCREW,6X30

92009-1961

1
Out of stock

92015

1

$7.04

In stock

92015A

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92015B

NUT

92015-1829

1

$3.36

In stock

92028

BUSHING

92028-1986

1

$3.71

In stock

92049

SEAL-OIL

92049-1578

1
Out of stock

92066

1

$3.69

In stock

92143

COLLAR

92143-1216

1

$5.54

In stock

92145

SPRING

92145-1392

1

$3.25

In stock

92145A

SPRING

92145-1429

1

$7.46

In stock

92151

BOLT,5X10

92151-1975

1

$2.00

In stock

92152

COLLAR

92152-1176

1

$3.85

In stock

92153

BOLT,5X20

92153-1129

1
Out of stock

130

BOLT-FLANGED,8X60

130CA0860

1

$1.49

In stock

220

SCREW-PAN-CROS,3X8

220AA0308

1

$0.63

In stock

220A

1

$2.92

In stock

220B

1

$1.73

In stock

220C

1

$2.74

In stock

312

NUT-HEX,6MM,BLACK

312AB0600

1

$3.53

In stock

92153A

BOLT

92153-1919

1

$16.19

In stock

92160

DAMPER,4.5X11X20

92160-1074

1

$7.36

In stock

92171

CLAMP

92171-1344

1

$2.00

In stock

92172

SCREW,5X20

92172-0078

1

$2.29

In stock

92173

CLAMP

92173-0741

1

$85.90

In stock

92200

WASHER

92200-1558

1
Out of stock

92200A

WASHER

92200-1559

1
Out of stock
