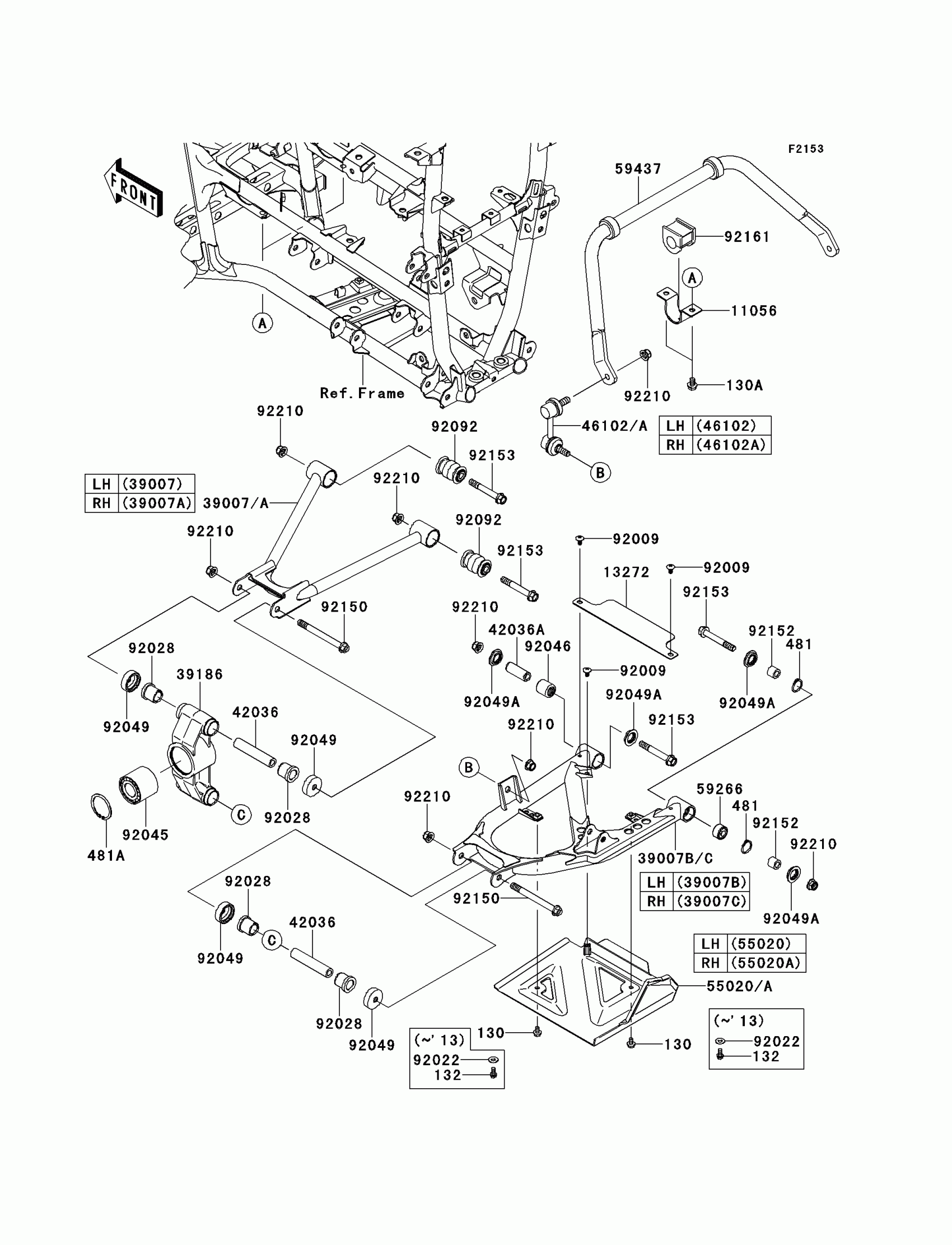

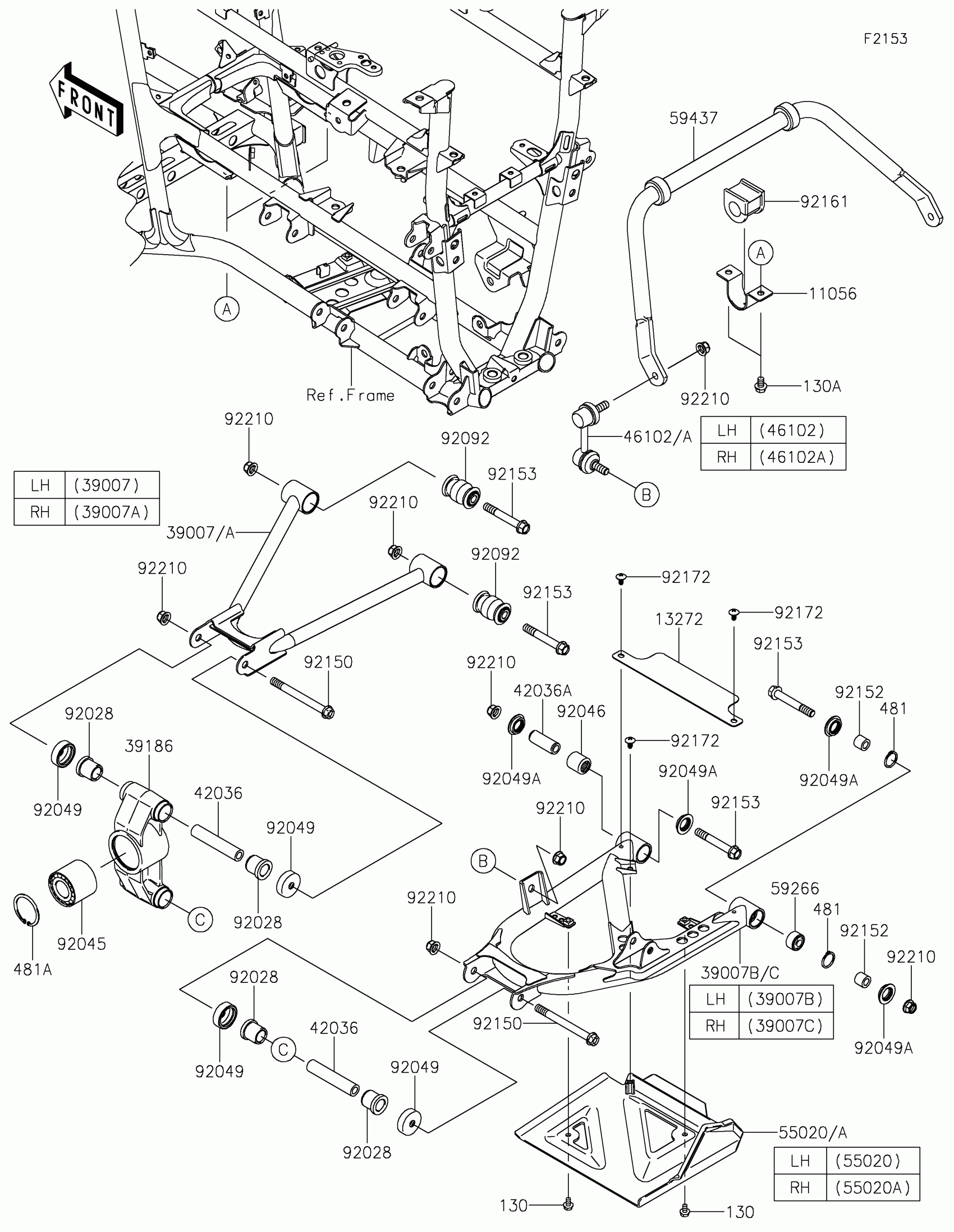

Kawasaki BRUTE FORCE® 750 4x4i EPS Rear Suspension Diagram

#

Description
Price

130A

BOLT-FLANGED,8X12

130BA0812

$0.79

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

481

CIRCLIP-TYPE-C,24MM

481J2400

$2.22

481A

CIRCLIP-TYPE-C,52MM

481J5200

$3.72

11056

BRACKET,STABILIZER

11056-1062

$2.74

13272

PLATE,RR ARM

13272-0919

$2.03

39007

ARM-SUSP,RR,UPP,LH

39007-0170

$85.04

39007A

ARM-SUSP,RR,UPP,RH

39007-0171

$85.04

39007B

ARM-SUSP,RR,LWR,LH

39007-0172

Unavailable

39007C

ARM-SUSP,RR,LWR,RH

39007-0173

Unavailable

39186

KNUCKLE,RR

39186-0099

$190.14

42036

SLEEVE,10X17X85.6

42036-1190

$26.20

42036A

SLEEVE

42036-1376

$11.17

46102

ROD,STABILIZER,LH

46102-0100

$43.00

46102A

ROD,STABILIZER,RH

46102-0101

$43.00

55020

GUARD,REAR ARM,LH,F.BLACK

55020-0166-6Z

Unavailable

55020A

GUARD,REAR ARM,RH,F.BLACK

55020-0167-6Z

Unavailable

59266

JOINT-BALL

59266-0013

$58.78

59437

STABILIZER,RR

59437-0306

$122.30

92009

SCREW,6X12

92009-1480

$2.23

92022

WASHER PLAIN

92022-024

$2.76

92028

BUSHING

92028-1466

$7.83

92045

BEARING-BALL,25BWD02ACA68

92045-0094

Unavailable

92046

BEARING-NEEDLE

92046-1046

$22.57

92049

SEAL-OIL,KNUCKLE

92049-1198

$16.19

92049A

SEAL-OIL,MHA17245.7F

92049-1223

$6.75

92092

BUSHING-RUBBER

92092-0004

$6.32

92150

BOLT,FLANGED,10X105

92150-1624

$7.54

92152

COLLAR,10X17X14.5

92152-1455

$6.91

92153

BOLT,FLANGED,10X70

92153-0666

$3.66

92161

DAMPER

92161-0265

$4.24

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85
